Doosan Lynx 2600Y Series
The Doosan Lynx 2600Y series includes the largest of our Lynx Y-axis horizontal turning centers
Features
- Max chuck Size - 255mm
- Max Turning Diameter - 376mm
- Max Turning Length - 610mm
or copy link
The 2600Y range is the largest Doosan LYNX series so far. With the same fast linear cross roller guideways and machining capability for aggressive cuts, it provides the same precision performance as its smaller cousins, but with a 376mm turning diameter with a maximum turning length of 610 mm
Technical Specification
| Chuck size | 10inch |
|---|---|
| Bar Capacity | 81mm |
| Max. Turning Diameter | 380mm |
| Max. Turning Length | 610mm |
| X Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 30m/min |
| X Axis Travel distance | 250mm |
| Y Axis Travel distance | 105mm |
| Z Axis Travel distance | 680mm |
| Max. Spindle Speed | 3500r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 403N·m |
| No. of tool station | 12 |
| Rotary Tool r/min | 5000r/min |
Series Dimensions
| Length | 3425mm |
|---|---|
| Width | 1920mm |
| Height | 2095mm |
| Weight | 5750 - 6000kg |

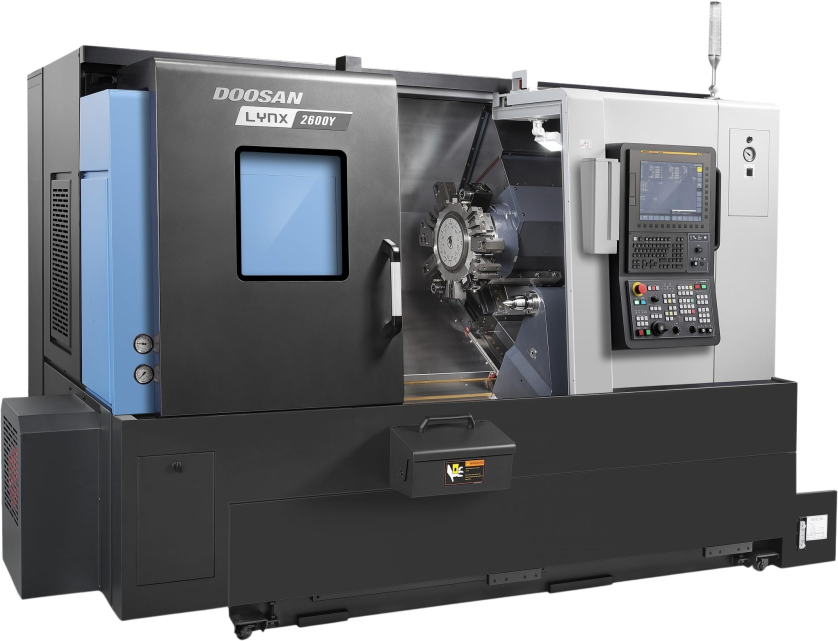

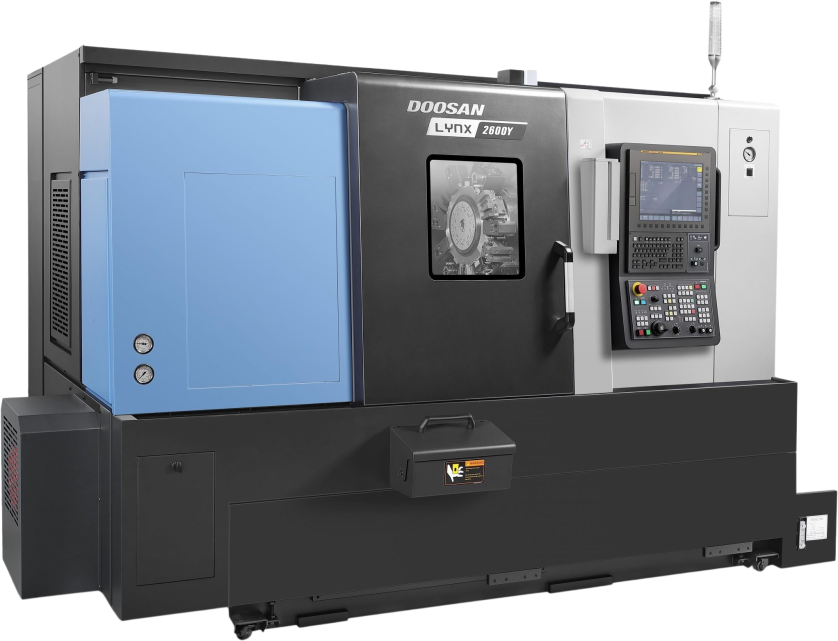

Image representative of Series and may not be the exact model
The Doosan Lynx 2600Y Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Latest investment underlines and signifies future direction of travel

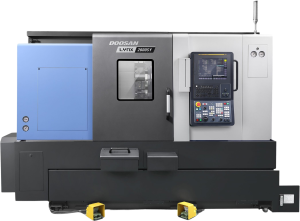

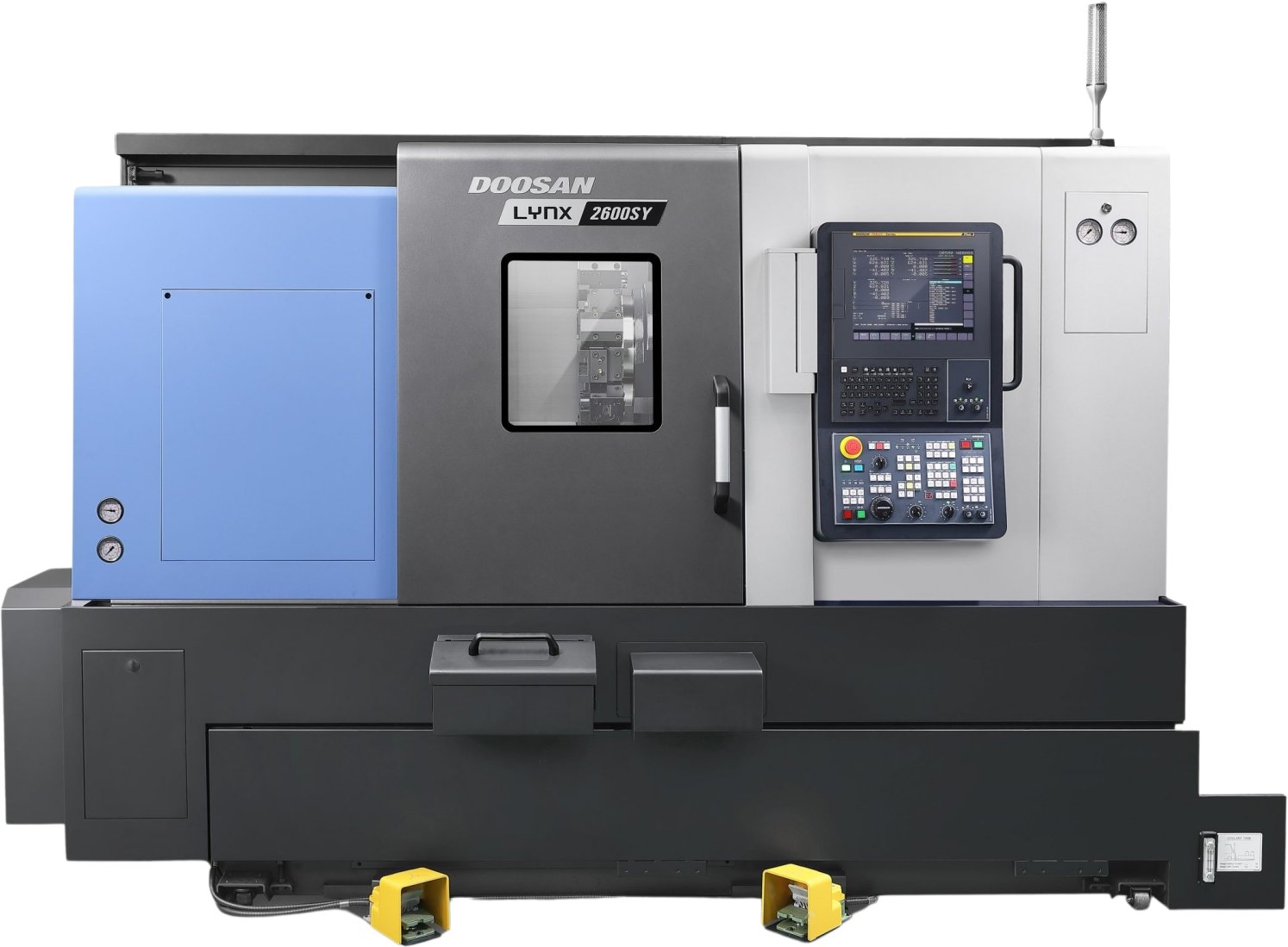

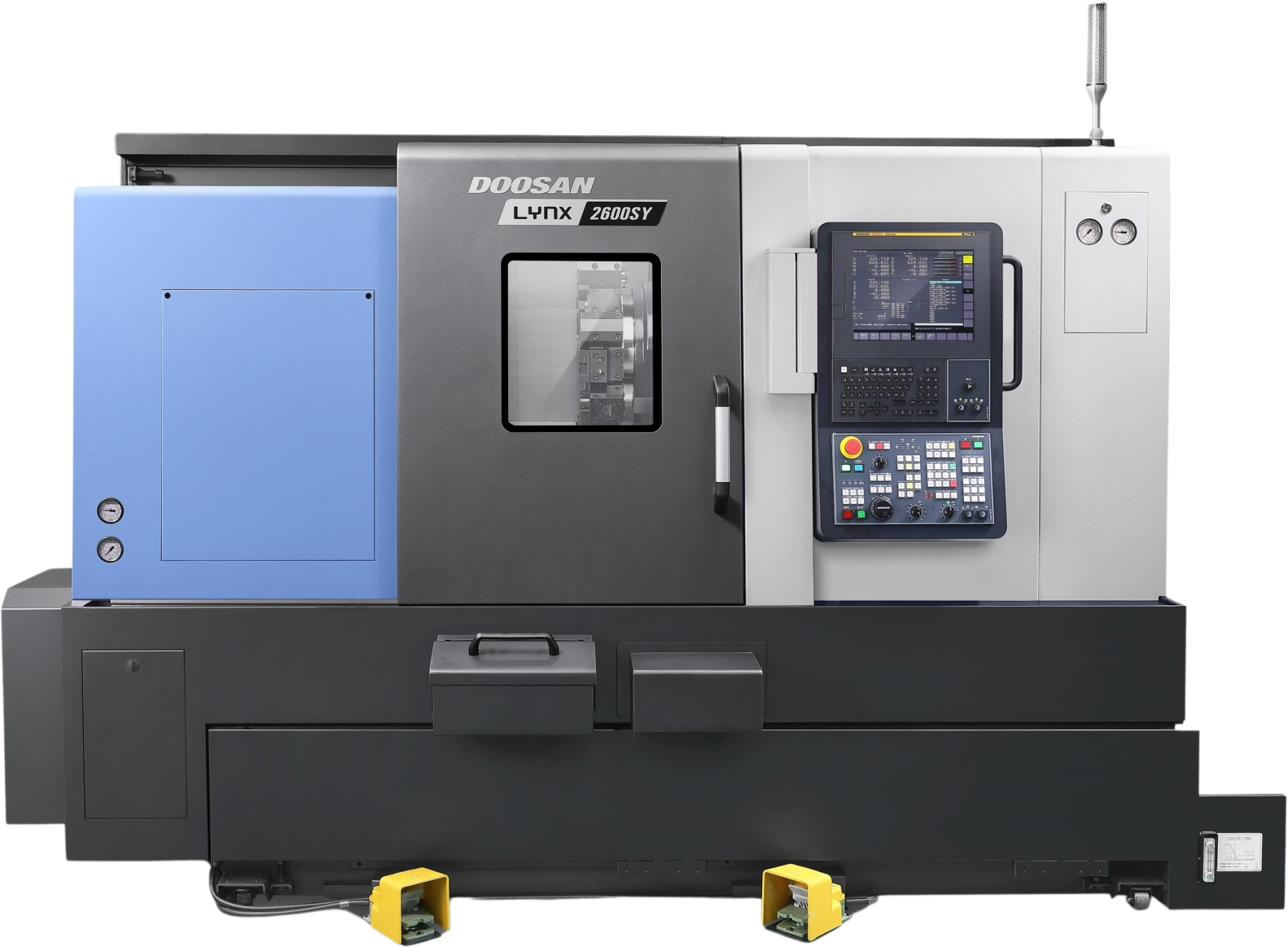

Lynx 2600SY Horizontal Single Turret Lathe
