Doosan Puma 2100 Series
Doosan Puma 2100 series lathes
Features
- 8″ chuck / 65mm bar capacity
- Driven tooling (7.5kW/5000rpm)
- 105mm Y-axis stroke
- Long bed models available
or copy link
Puma 2100 lathes have raised the bar for turning performance and provide manufacturers with increased accuracies and repeatability’s, superior cutting performance and greater process reliability.
The box guide-way machines have an 8″ chuck/65mm bar capacity, and are available in two bed lengths – 545mm and 785mm.
There are six different models in each bed length and manufacturers can select Puma 2100 machines with sub-spindles, driven tools, C-axes and Y-axes.
In addition to their impressive technical specifications, Puma 2100 lathes are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks (for non- sub-spindle machines), and the Manual Guide/Conversational Programming System, as standard.
Technical Specification
| Chuck size | 8inch |
|---|---|
| Max. Turning Diameter | 406 - 481mm |
| Max. Turning Length | 520 - 785mm |
| X Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 30m/min |
| X Axis Travel distance | 260mm |
| Y Axis Travel distance | 105mm |
| Z Axis Travel distance | 560 - 830mm |
| Max. Spindle Speed | 4500 - 5000r/min |
| Max. Spindle Power | 18 - 22kW |
| Max. Spindle Torque | 247 - 358N·m |
| No. of tool station | 12 - 24 |
| Rotary Tool r/min | 5000r/min |
| Max. Sub Spindle Speed | 4500 - 6000r/min |
| Max. Sub Spindle Power | 7 - 15kW |
| Bar Capacity | 65mm |
Series Dimensions
| Length | 3190 - 3530mm |
|---|---|
| Width | 1863 - 1945mm |
| Height | 1900 - 2163mm |
| Weight | 4850 - 6050kg |

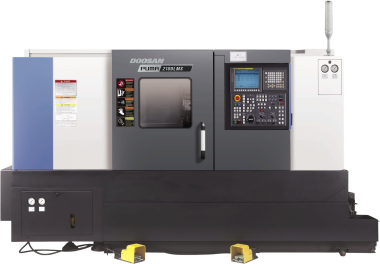

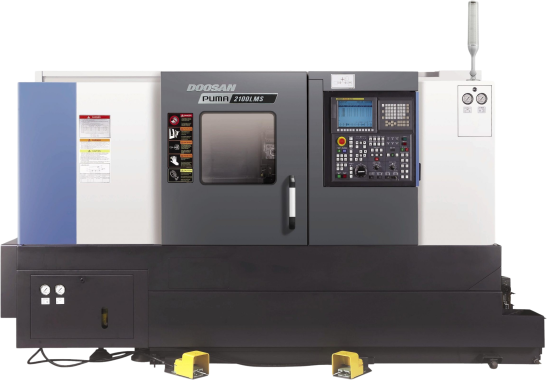

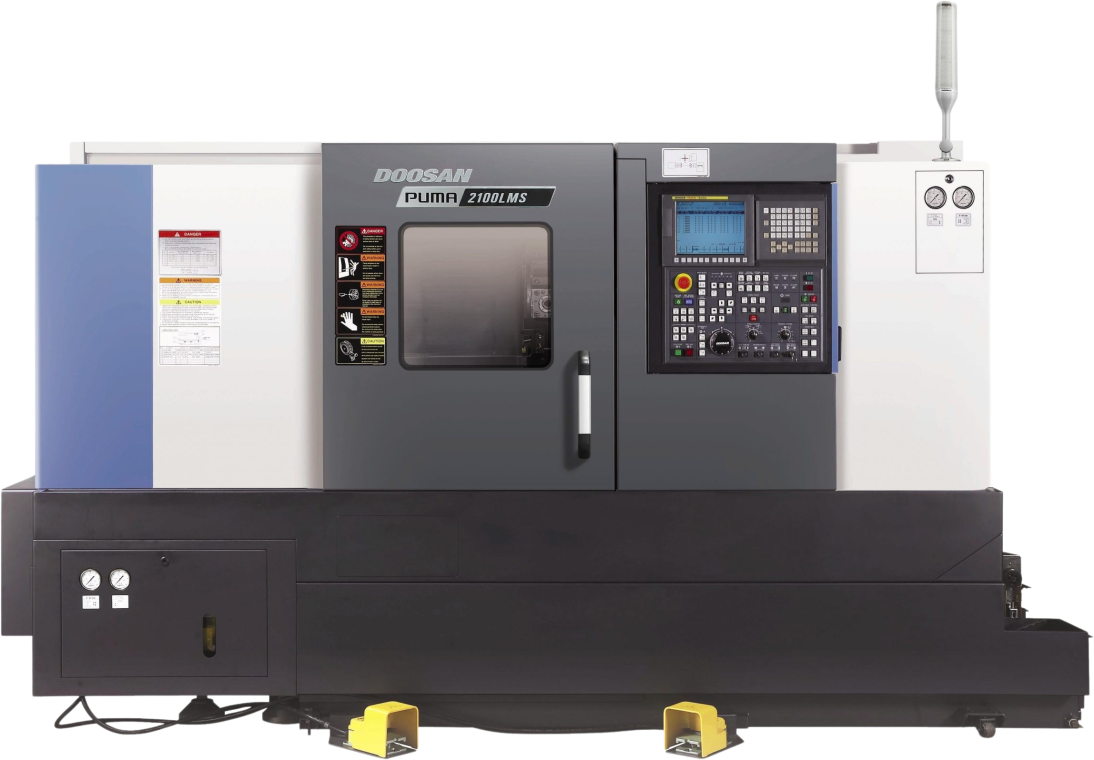

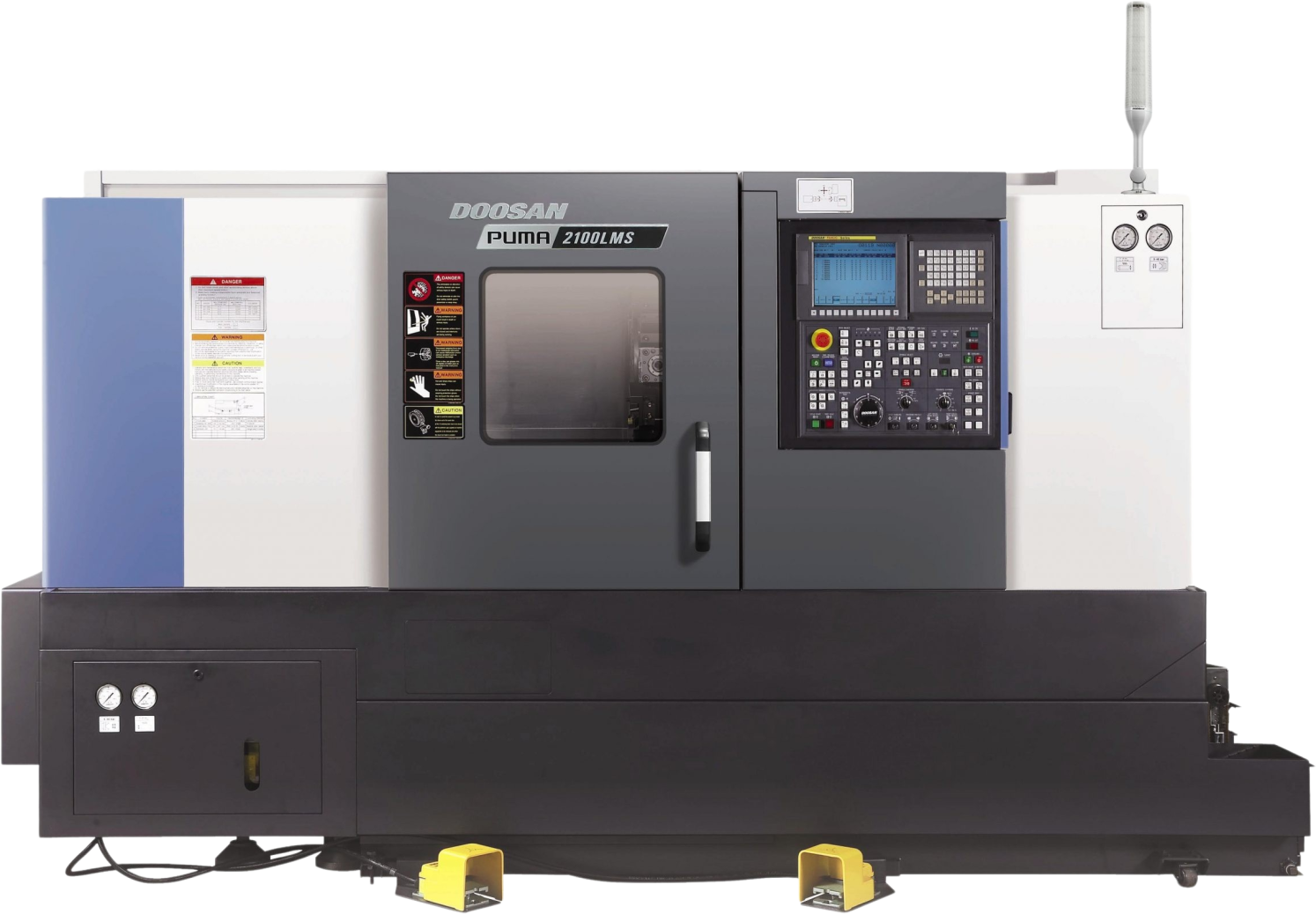

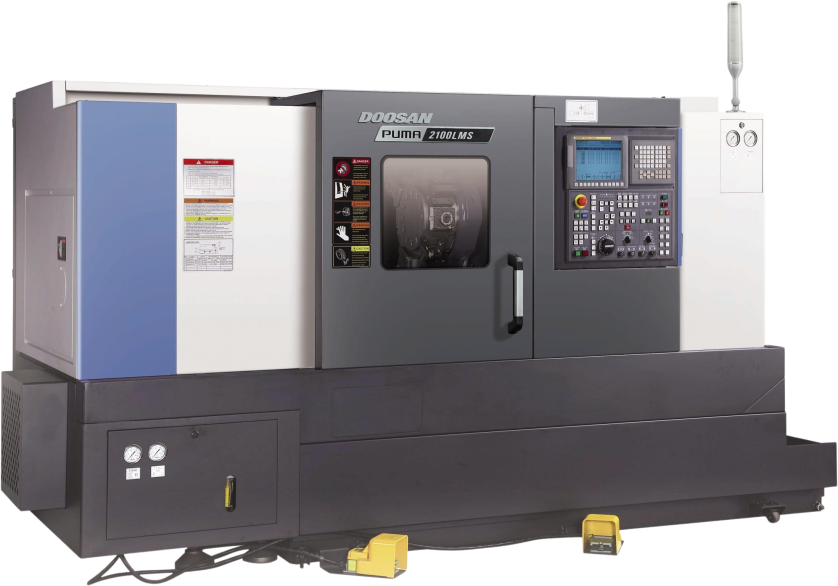

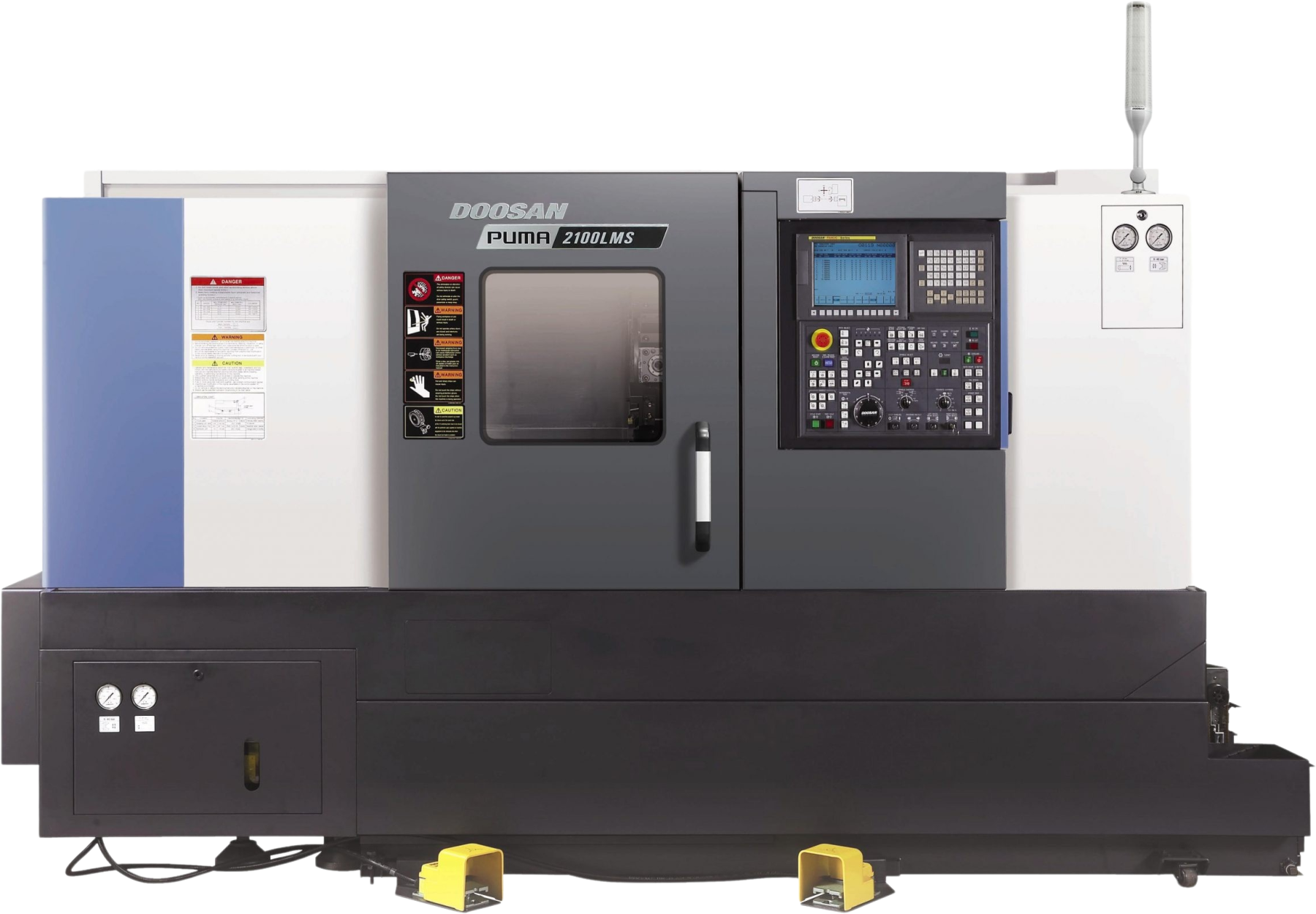

Image representative of Series and may not be the exact model
The Doosan Puma 2100 Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
