Doosan Puma 3100 Series
Doosan Puma 3100 series lathes
Features
- 12″ chuck / 102mm bar capacity
- Driven tools (7.8kW/5000rpm)
- 130mm Y-axis stroke
- Long bed models available
or copy link
Puma 3100 large-capacity lathes provide manufacturers with increased accuracies and repeatability’s, superior cutting performance and greater process reliability.
The box guide-way machines have a 12″ chuck/102mm bar capacity, and are available in four bed lengths – 765mm, 1,285mm, 2,125mm and 3,125mm. Manufacturers can select Puma 3100 machines with driven tools, sub-spindles, C-axis and Y-axes.
Puma 3100 lathes can also support a 15″ size chuck.
In addition to their impressive technical specifications, Puma 3100 lathes are supplied by Mills with: Automatic Tool Setters, tailstocks (for non- sub-spindle machines), and the Manual Guide/Conversational Programming System, as standard.
Technical Specification
| Chuck size | 12inch |
|---|---|
| Bar Capacity | 102mm |
| Max. Turning Diameter | 420 - 525mm |
| Max. Turning Length | 765 - 3150mm |
| X Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 26 - 30m/min |
| Max. Spindle Speed | 2800r/min |
| Max. Spindle Power | 22 - 26kW |
| Max. Spindle Torque | 1123N·m |
| Max. Sub Spindle Speed | 4000r/min |
| Max. Sub Spindle Power | 599kW |
| No. of tool station | 10 - 24 |
| Rotary Tool r/min | 5000r/min |
| X Axis Travel distance | 293mm |
| Y Axis Travel distance | 130mm |
| Z Axis Travel distance | 830 - 3190mm |
Series Dimensions
| Length | 3908 - 6585mm |
|---|---|
| Width | 1978 - 2280mm |
| Height | 2010 - 2315mm |
| Weight | 5850 - 12300kg |

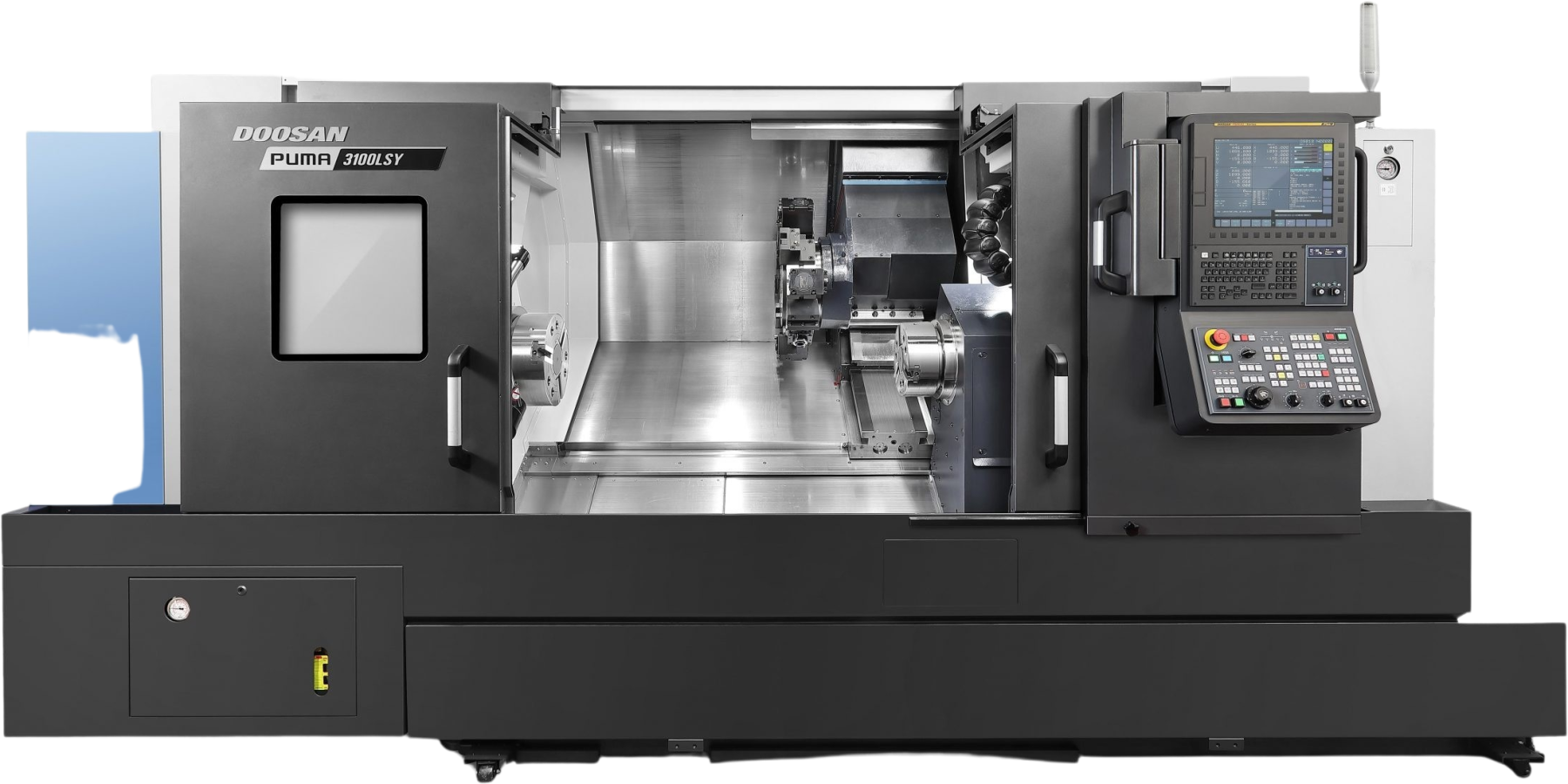

Image representative of Series and may not be the exact model
The Doosan Puma 3100 Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
