DN Solutions Puma DNT Series
DN Solutions DNT high-performance lathes
Features
- Box guide-way design
- 8″, 10″ or 12″ chuck
- 65mm, 76mm or 102mm bar capacity
- Driven tools (5.5kW/5000rpm)
- Fanuc or Siemens control
or copy link
DNT series lathes provide manufacturers with increased part accuracies and repeatability’s, superior cutting performance and greater process reliability.
These heavy-duty, box guide-way machines have an 8”, 10″ or 12″ chuck (65/76/102mm bar capacity) and a powerful spindles up to 35kW/4500rpm.

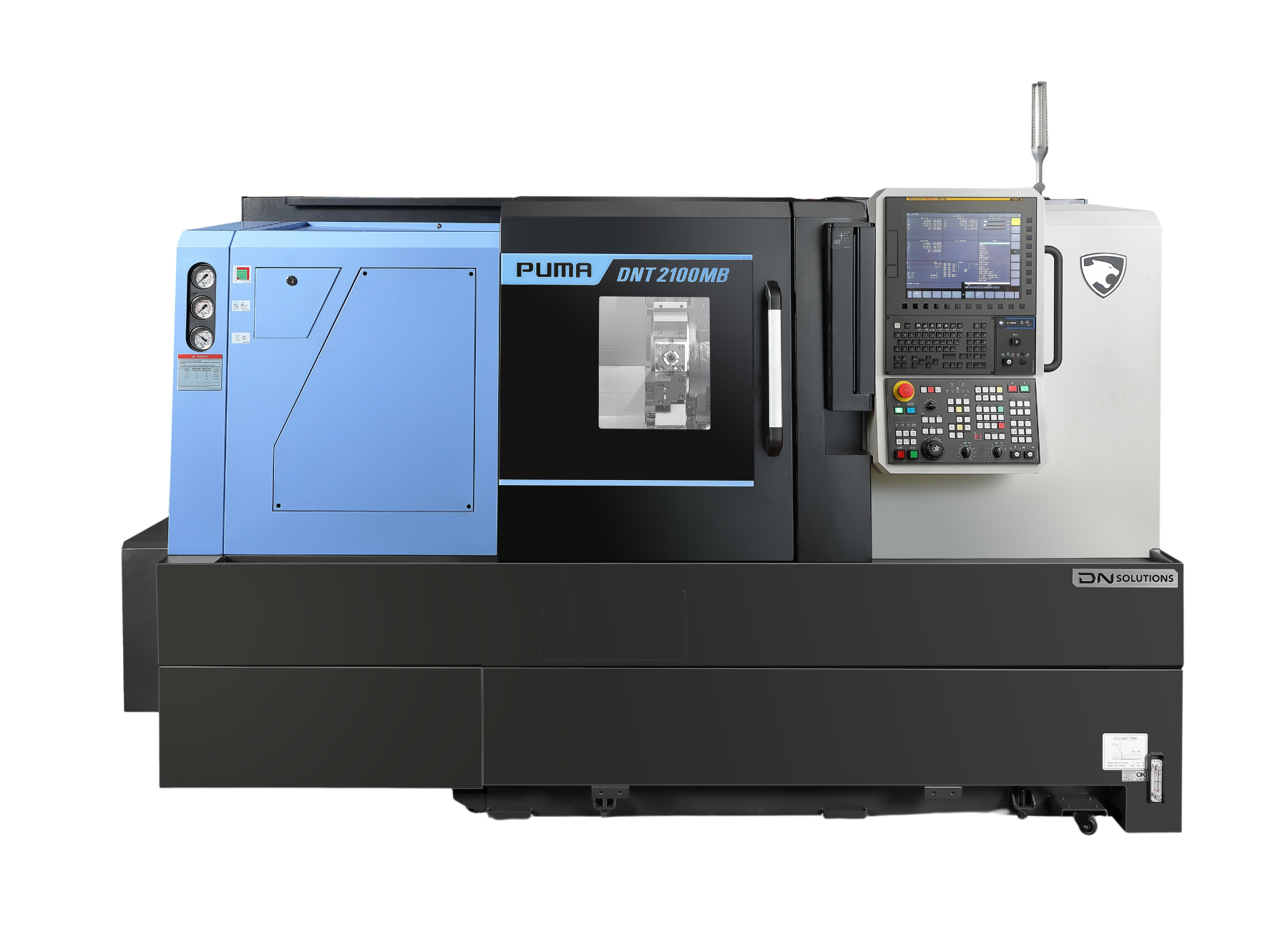

The DNT 2100MB and DNT 2600M models are also equipped with driven tooling capability (5.5kW/5000rpm).
In addition to their impressive technical specifications, these machines are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks and the Manual Guide/Conversational Programming System, as standard.
Technical Specification
| Chuck size | 8 - 10inch |
|---|---|
| Bar Capacity | 65 - 81mm |
| Max. Turning Diameter | 300 - 460mm |
| Max. Turning Length | 501 - 1078mm |
| X Axis Rapid Traverse | 24m/min |
| Z Axis Rapid Traverse | 30m/min |
| X Axis Travel distance | 230 - 265mm |
| Z Axis Travel distance | 580 - 1100mm |
| Max. Spindle Speed | 3500 - 4500r/min |
| Max. Spindle Power | 18 - 22kW |
| Max. Spindle Torque | 313 - 735N·m |
| No. of tool station | 10 - 12 |
| Rotary Tool r/min | 5000r/min |
Series Dimensions
| Length | 2941 - 3841mm |
|---|---|
| Width | 1632 - 1707mm |
| Height | 1759 - 1830mm |
| Weight | 3700 - 4950kg |

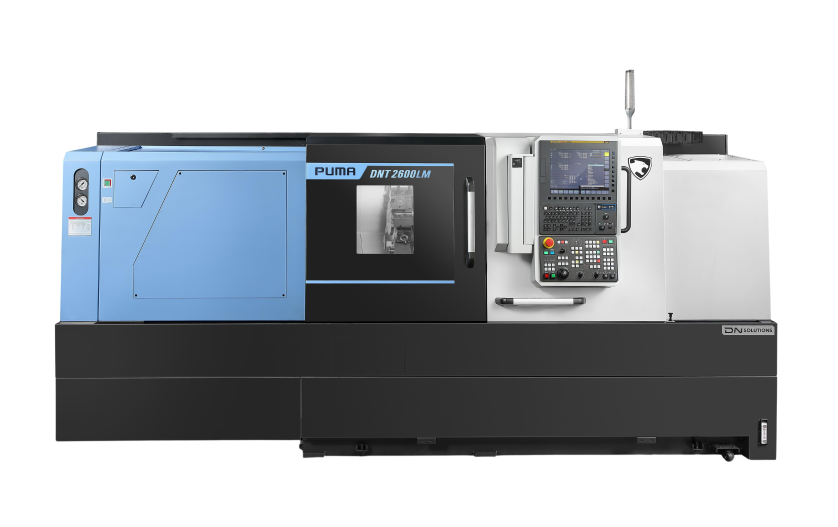

Image representative of Series and may not be the exact model
The DN Solutions Puma DNT Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Two new machines delivered in less than a month!

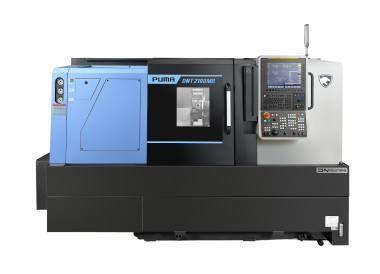

Puma DNT2100 Horizontal Single Turret Lathe
