Doosan Puma GT Series
Doosan GT high-performance lathes
Features
- Box guide-way design
- 8″, 10″ or 12″ chuck
- 65mm, 76mm or 102mm bar capacity
- Driven tools (5.5kW/5000rpm)
- Fanuc or Siemens control
or copy link
GT series lathes provide manufacturers with increased part accuracies and repeatability’s, superior cutting performance and greater process reliability.
These heavy-duty, box guide-way machines have an 8”, 10″ or 12″ chuck (65/76/102mm bar capacity) and a powerful spindles up to 35kW/4500rpm.
The GT 2100M, GT 2600M and GT 3100M models are also equipped with driven tooling capability (5.5kW/5000rpm).
In addition to their impressive technical specifications, these machines are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks and the Manual Guide/Conversational Programming System, as standard.
Technical Specification
| Chuck size | 10 - 12inch |
|---|---|
| Bar Capacity | 81 - 102mm |
| Max. Turning Diameter | 300 - 481mm |
| Max. Turning Length | 501 - 1603mm |
| X Axis Rapid Traverse | 24m/min |
| Z Axis Rapid Traverse | 30m/min |
| X Axis Travel distance | 230 - 265mm |
| Z Axis Travel distance | 580 - 1625mm |
| Max. Spindle Speed | 2500 - 3500r/min |
| Max. Spindle Power | 18 - 35kW |
| Max. Spindle Torque | 400 - 1613N·m |
| No. of tool station | 10 - 12 |
| Rotary Tool r/min | 5000r/min |
Series Dimensions
| Length | 2991 - 4960mm |
|---|---|
| Width | 1632 - 2325mm |
| Height | 1759 - 2110mm |
| Weight | 3900 - 7050kg |

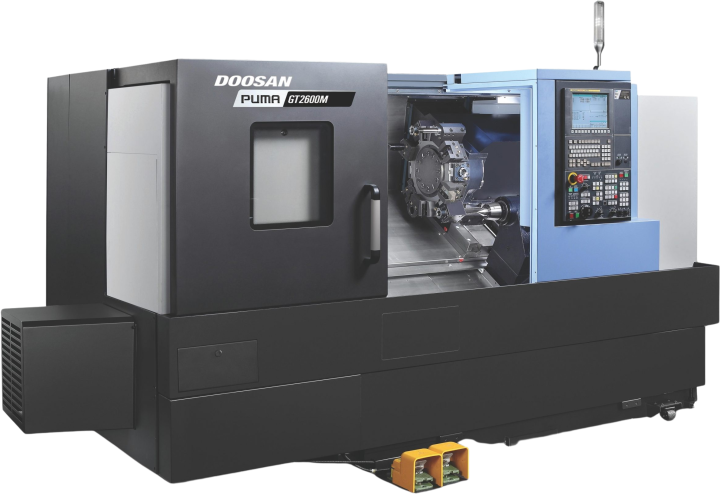

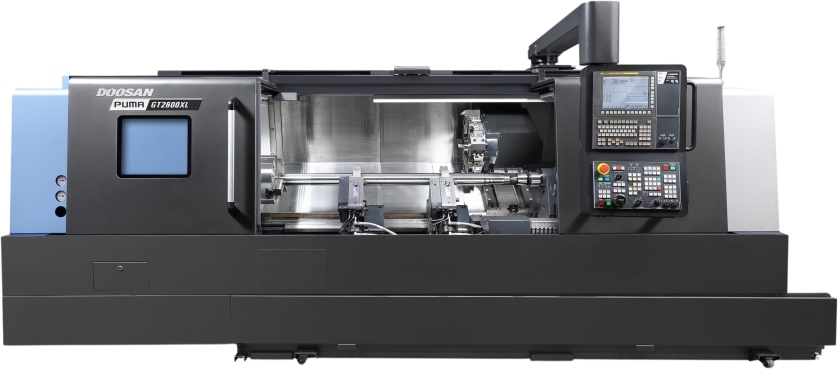

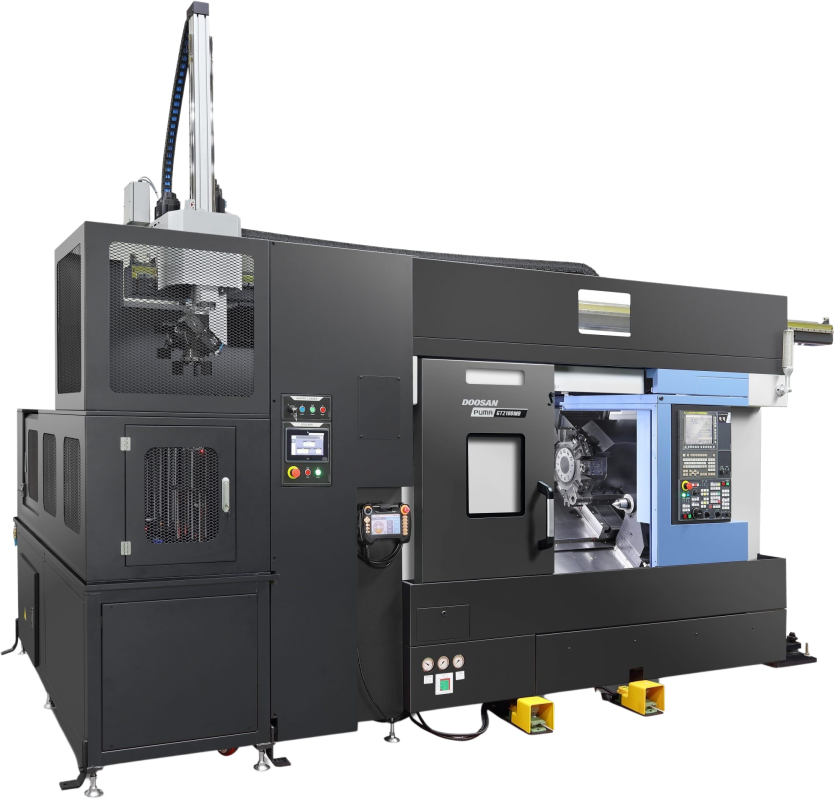

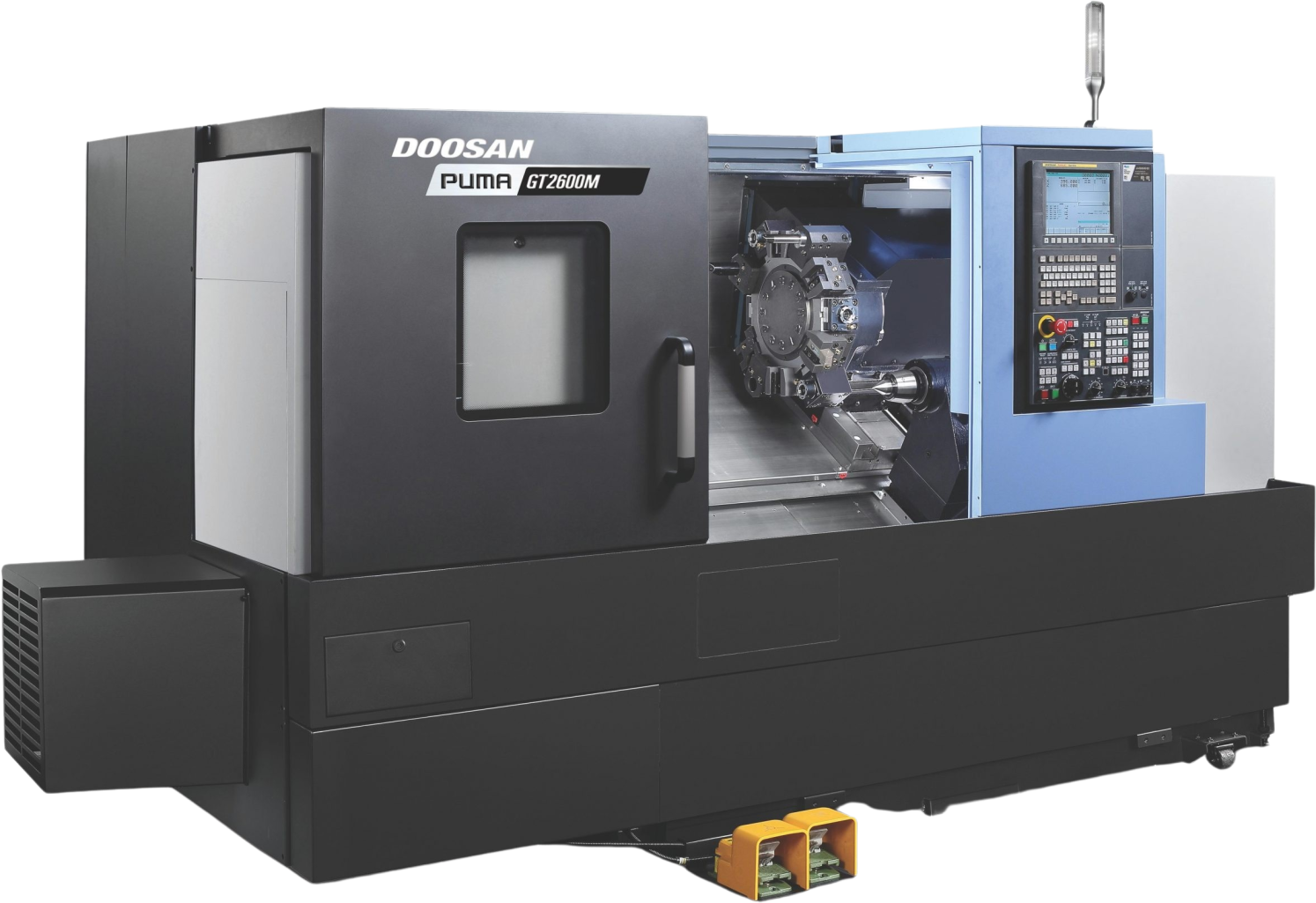

Image representative of Series and may not be the exact model
The Doosan Puma GT Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
