Doosan Puma V400 Series
Doosan Puma V400 Vertical Turning Center
Features
- 22kW/3000rpm spindle
- 12” chuck
- Maximum workpiece length: 461mm
or copy link
The Puma V400 vertical turning center is designed for long term accuracy, heavy duty cutting and to minimize floor space. Its powerful spindle drives, meehanite casting and integral box guide way provide unsurpassed rigidity.
Standard for Unsurpassed High Productivity, High Speed and High Precision.
Technical Specification
| Chuck size | 12inch |
|---|---|
| Max. Turning Diameter | 496mm |
| Max. Turning Length | 461mm |
| X Axis Rapid Traverse | 20m/min |
| Z Axis Rapid Traverse | 20m/min |
| Max. Spindle Speed | 3000r/min |
| Max. Spindle Power | 22kW |
| Max. Spindle Torque | 731N·m |
| No. of tool station | 12 |
| Rotary Tool r/min | 4000r/min |
| X Axis Travel distance | 268mm |
| Z Axis Travel distance | 488mm |
Series Dimensions
| Length | 1475mm |
|---|---|
| Width | 2075mm |
| Height | 3210mm |
| Weight | 6000kg |

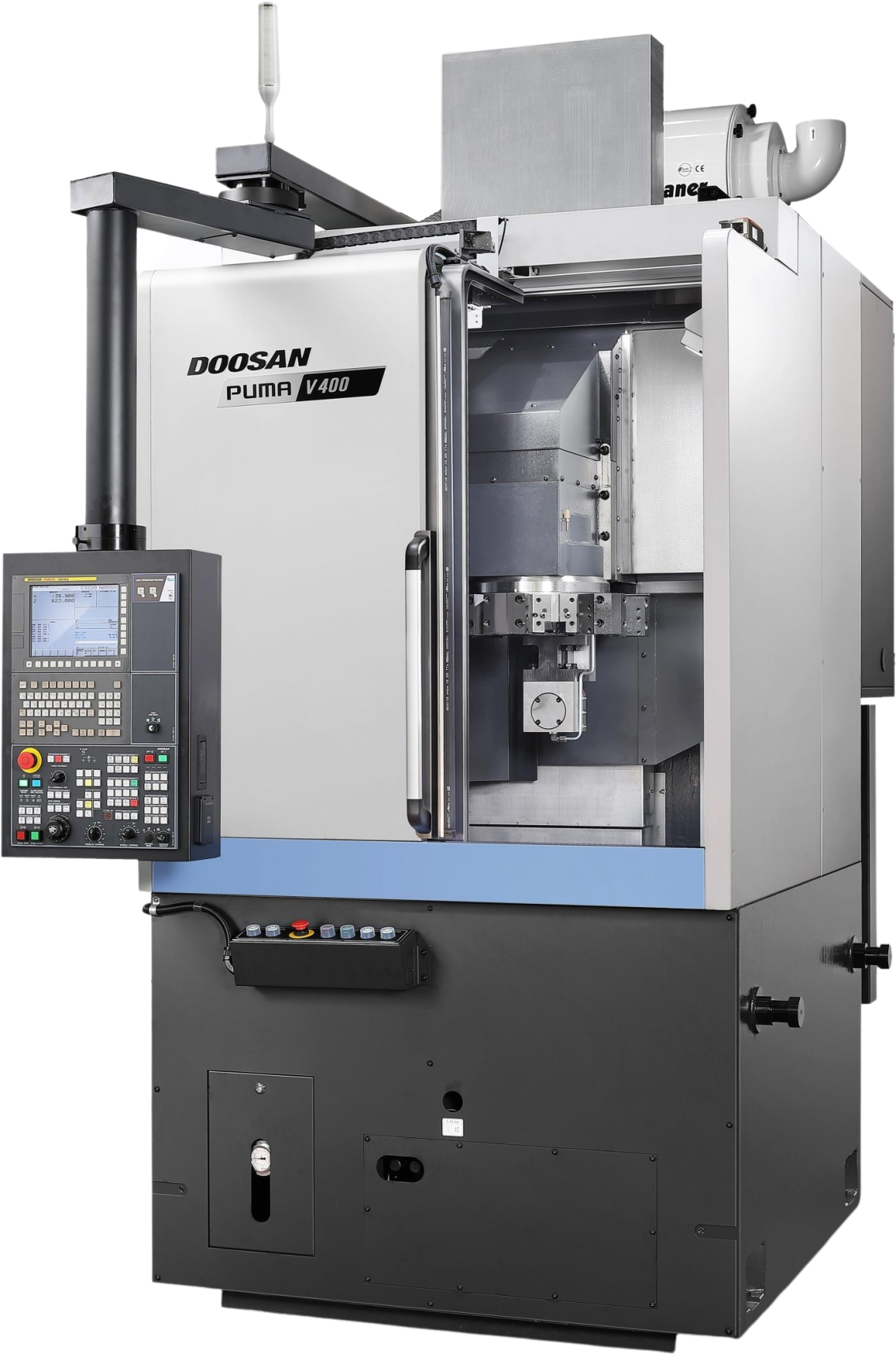

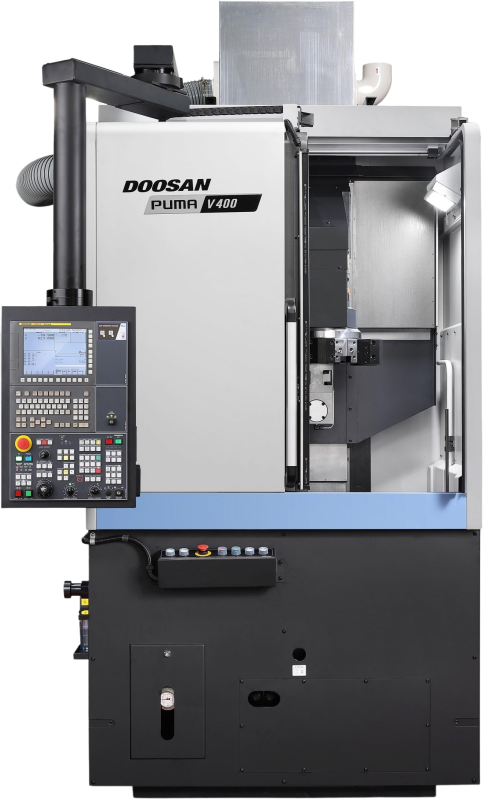

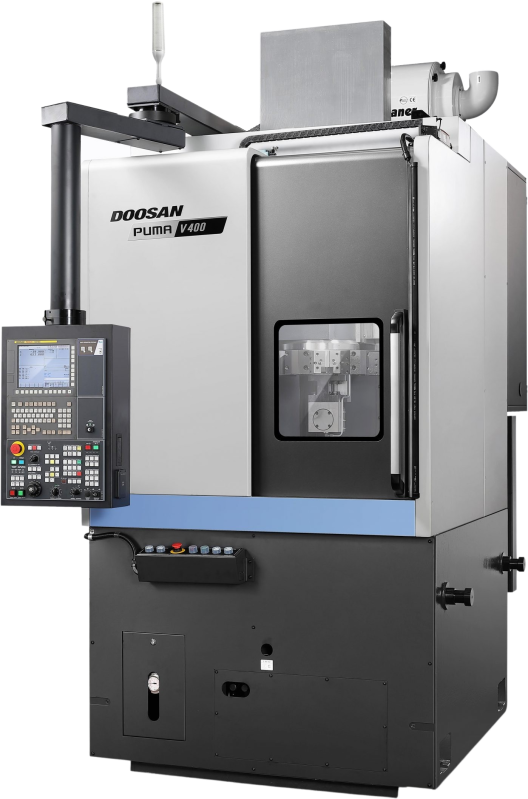

Image representative of Series and may not be the exact model
The Doosan Puma V400 Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
