Doosan MP Series
High Precision Die & Mould Vertical Machining Centre – MP 6500
Features
- High rigidity
- High precision spindle for stable surface accuracy
- Integrated thermal compensation and cooling systems
or copy link
High speed, High precision Vertical Machining Die/Mould Machine optimised for high speed, high precision machining. The MP 6500 vertical machining centres are designed with a thermally symmetrical bridge type structure to optimise precision and workpiece quality. High accuracy is also enhanced by using a constantly pre-loaded high-speed spindle. Operator convenience is improved by optimised accessibility and a range of operator functions.
Technical Specification
| X Axis Travel distance | 1100mm |
|---|---|
| Y Axis Travel distance | 650mm |
| Z Axis Travel distance | 550mm |
| X Axis Rapid Traverse | 30m/min |
| Y Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 30m/min |
| Max. Spindle Speed | 40000r/min |
| Max. Spindle Power | 22kW |
| Max. Spindle Torque | 60N·m |
| Table Length | 1200mm |
| Table Width | 650mm |
| Max. Table Weight | 800kg |
| No. of tool station | 30 |
Series Dimensions
| Length | 3315mm |
|---|---|
| Width | 2820mm |
| Height | 3036mm |
| Weight | 10000kg |

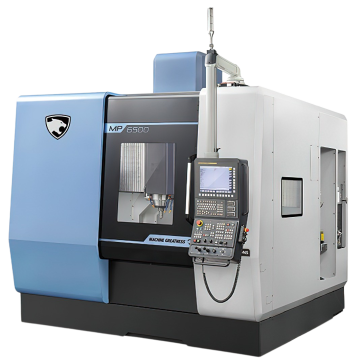

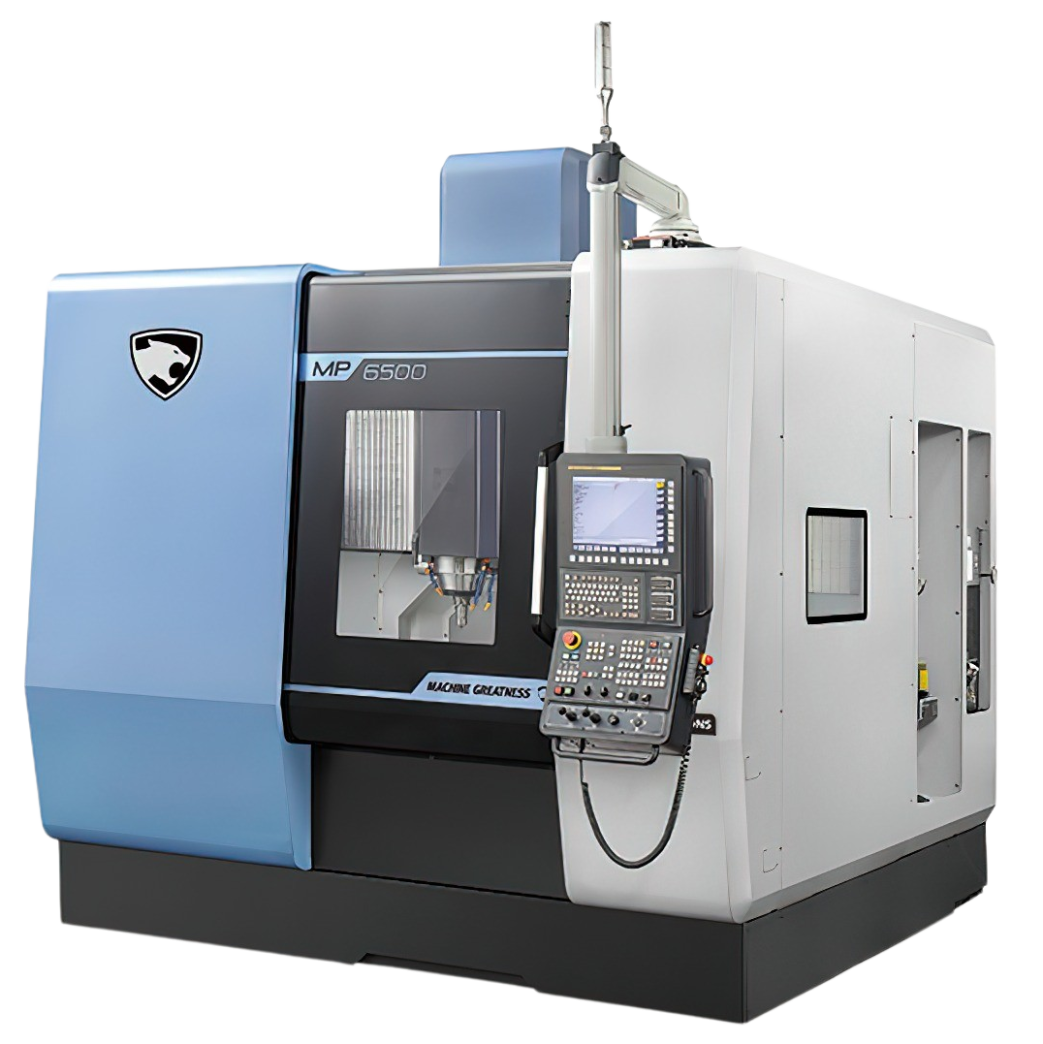

Image representative of Series and may not be the exact model
The Doosan MP Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
