Doosan NX II Series
NX II high-speed vertical machining centers
Features
- High contouring speed and accuracy
- High-speed spindles
- Thermal management system
- Fanuc or Heidenhain controls
or copy link
Doosan NX II series vertical machining centers are aimed at the mould tool and die making sector. The machines have a bridge structure and are equipped with high-speed spindles, roller-type linear guideways and a proven thermal management system to ensure high accuracy machining.
Technical Specification
| X Axis Travel distance | 900mm |
|---|---|
| Y Axis Travel distance | 550mm |
| Z Axis Travel distance | 500mm |
| X Axis Rapid Traverse | 30m/min |
| Y Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 30m/min |
| Max. Spindle Speed | 40000r/min |
| Max. Spindle Power | 22kW |
| Max. Spindle Torque | 60N·m |
| Table Length | 1000mm |
| Table Width | 550mm |
| Max. Table Weight | 700kg |
| No. of tool station | 30 |
Series Dimensions
| Length | 2530mm |
|---|---|
| Width | 2900mm |
| Height | 3064mm |
| Weight | 9000kg |

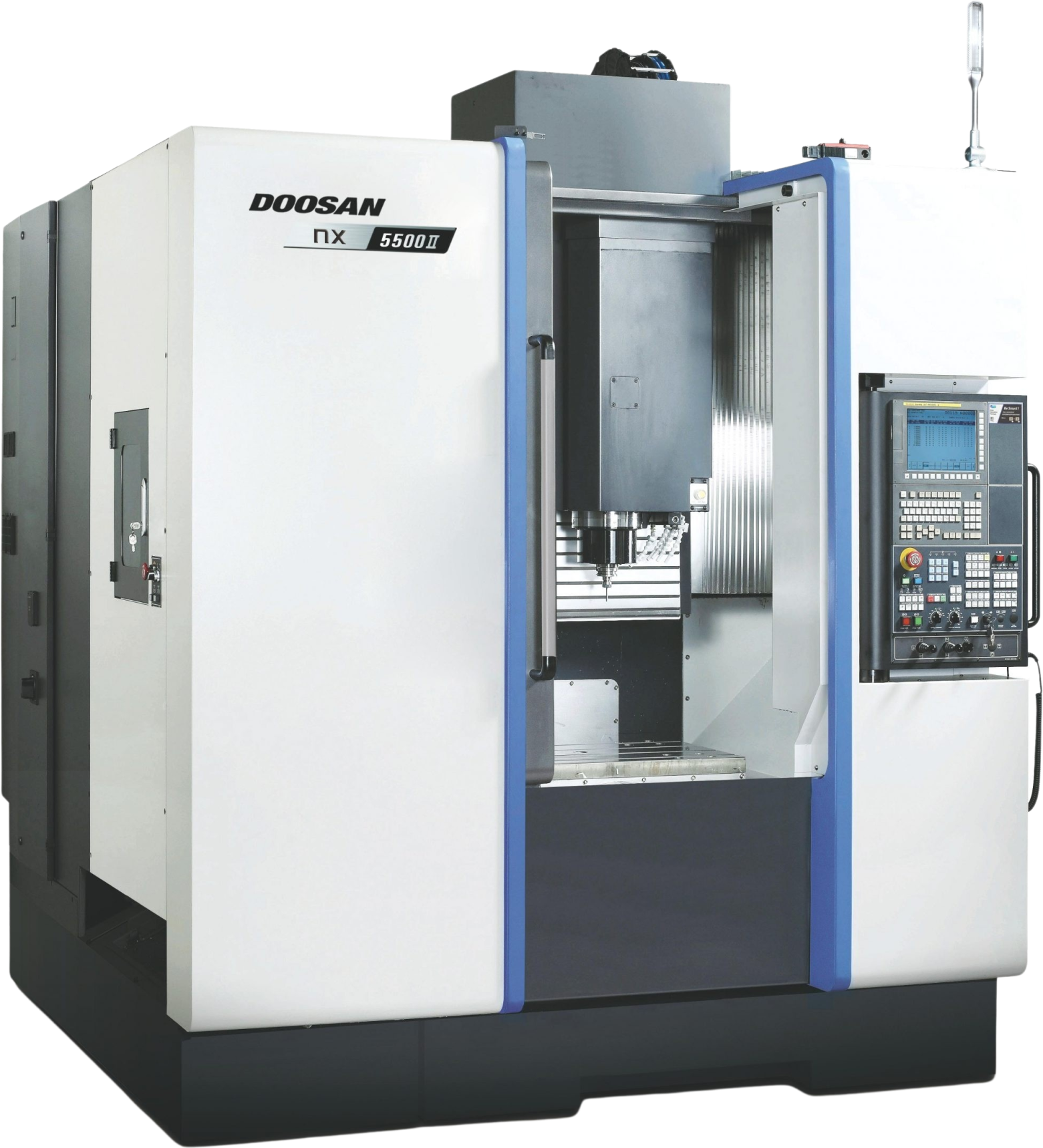

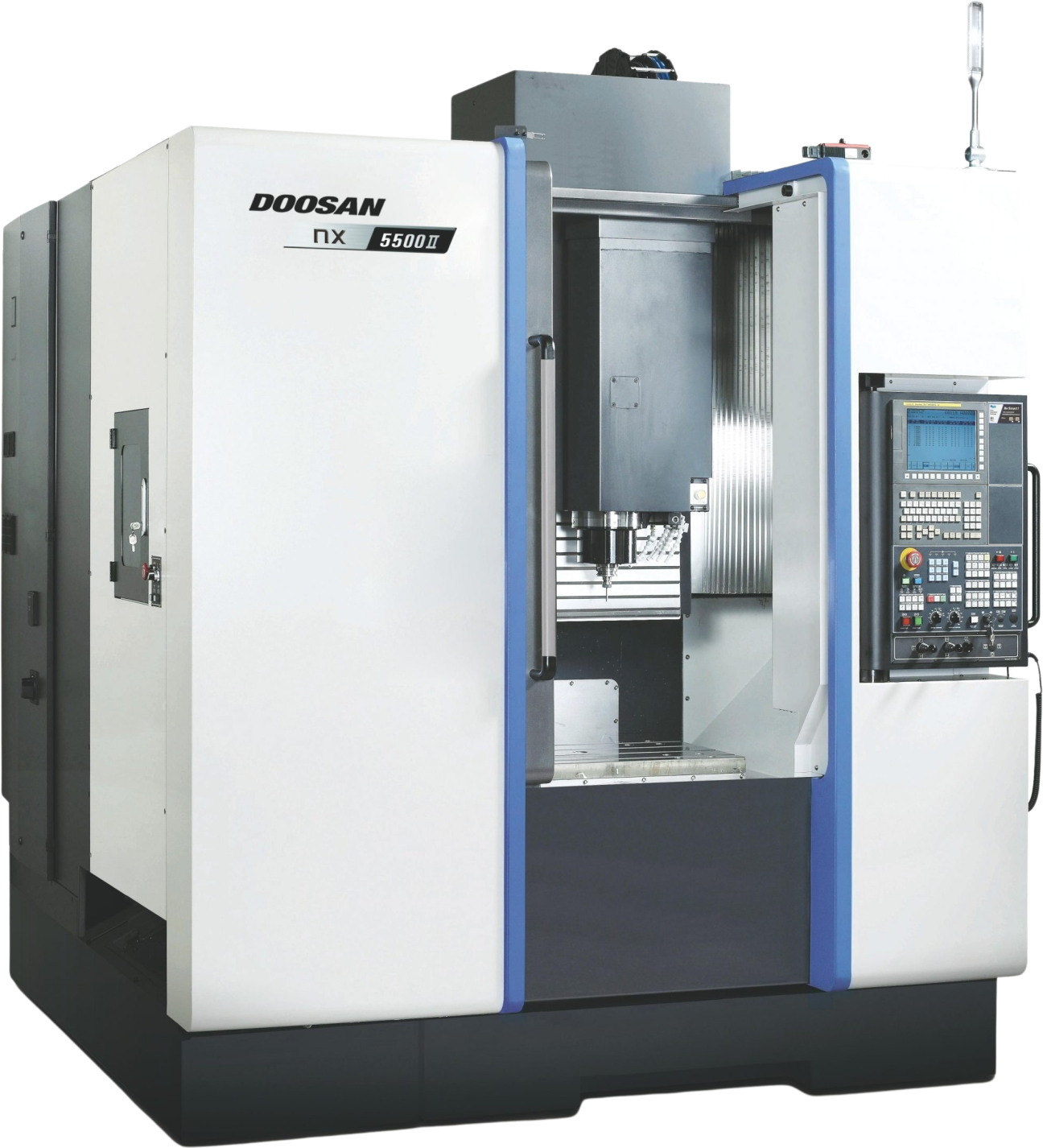

Image representative of Series and may not be the exact model
The Doosan NX II Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
