Doosan VM Series
Large, High Rigidity and High-Speed Die & Mould Vertical Machining Centers
Features
- Rigid Construction for Heavy Duty Applications
- Exceptionally Durable All-in-One Single Frame Construction
- High productivity and high accuracy
- Integrated thermal compensation and cooling systems
or copy link
The VM Series comes complete with a Low-vibration built-in spindle and highest stroke in its class. Designed for both roughing and finishing, the Series provides a product line-up ranging from Unit 7 to Unit 12 sizes. The design boasts operator convenience and work efficiency.
Technical Specification
| X Axis Travel distance | 1020 - 2500mm |
|---|---|
| Y Axis Travel distance | 540 - 1260mm |
| Z Axis Travel distance | 530 - 900mm |
| X Axis Rapid Traverse | 12 - 30m/min |
| Y Axis Rapid Traverse | 12 - 30m/min |
| Z Axis Rapid Traverse | 12 - 24m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 15 - 30kW |
| Max. Spindle Torque | 165 - 826N·m |
| Table Length | 1200 - 2800mm |
| Table Width | 540 - 1260mm |
| Max. Table Weight | 800 - 8000kg |
| No. of tool station | 30 - 40 |
Series Dimensions
| Length | 2444 - 5645mm |
|---|---|
| Width | 3350 - 6938mm |
| Height | 2855 - 3930mm |
| Weight | 7000 - 31000kg |

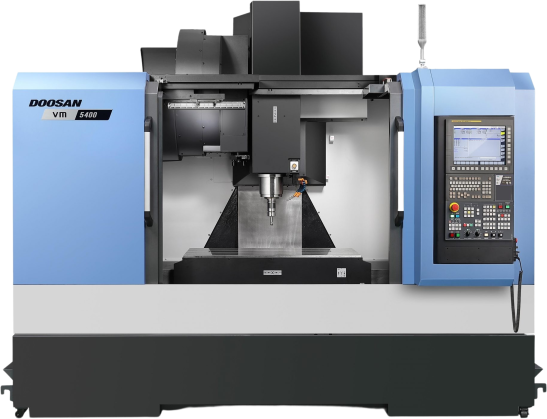

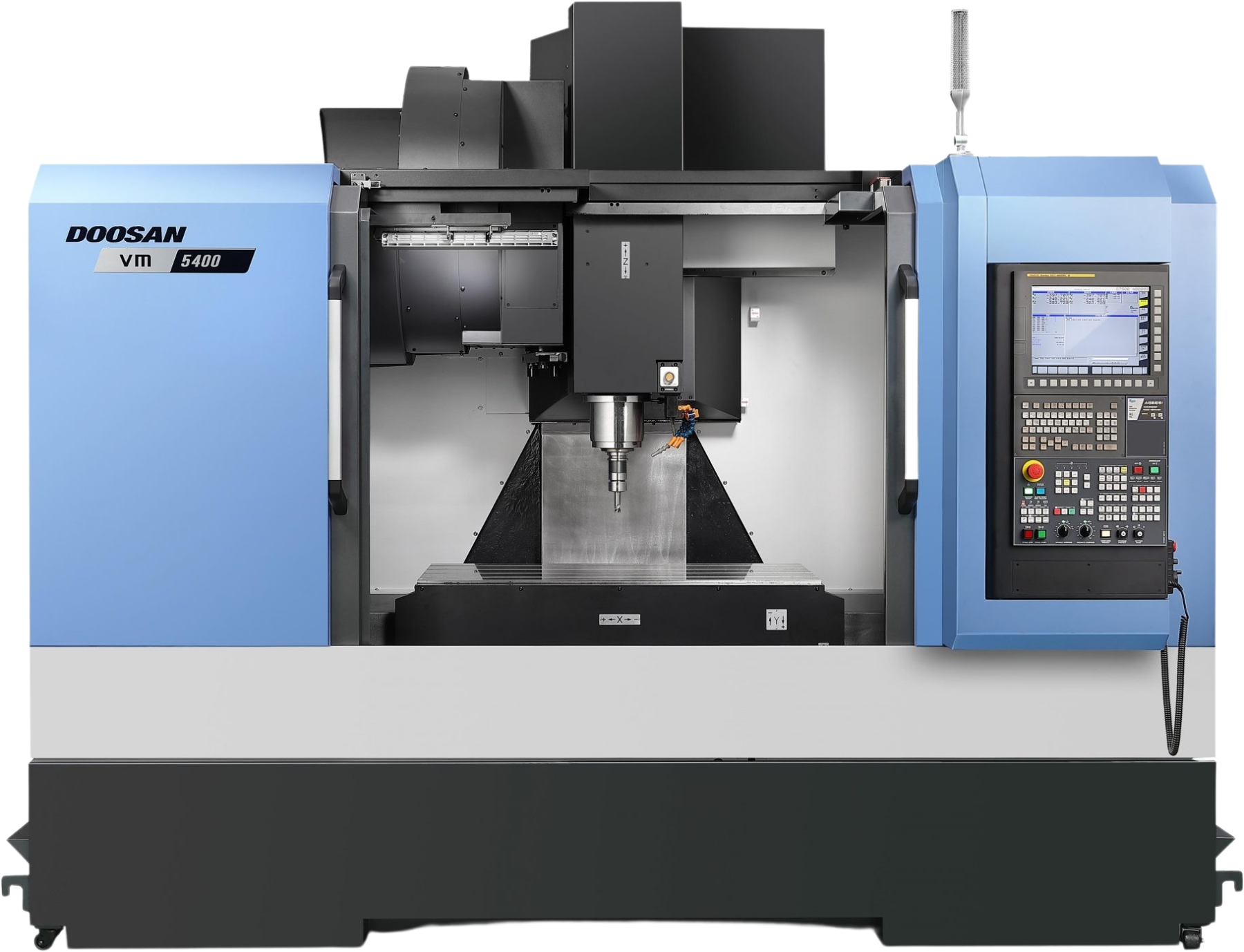

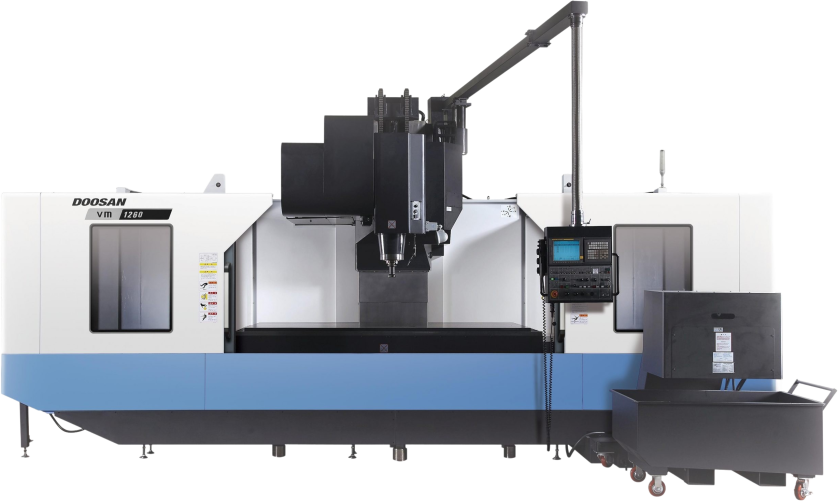

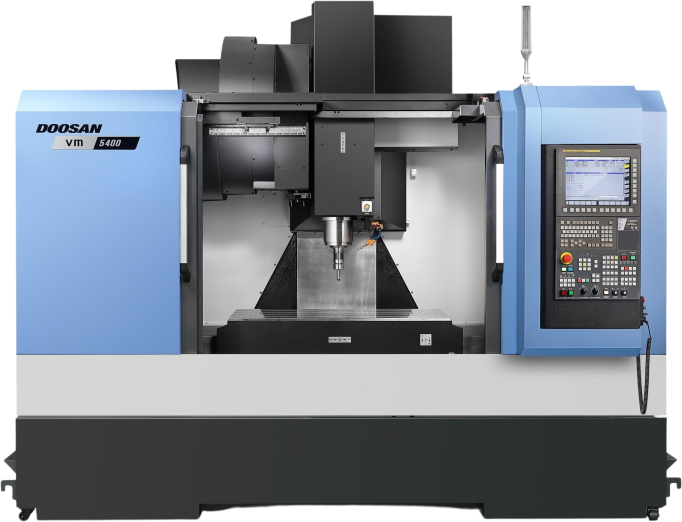

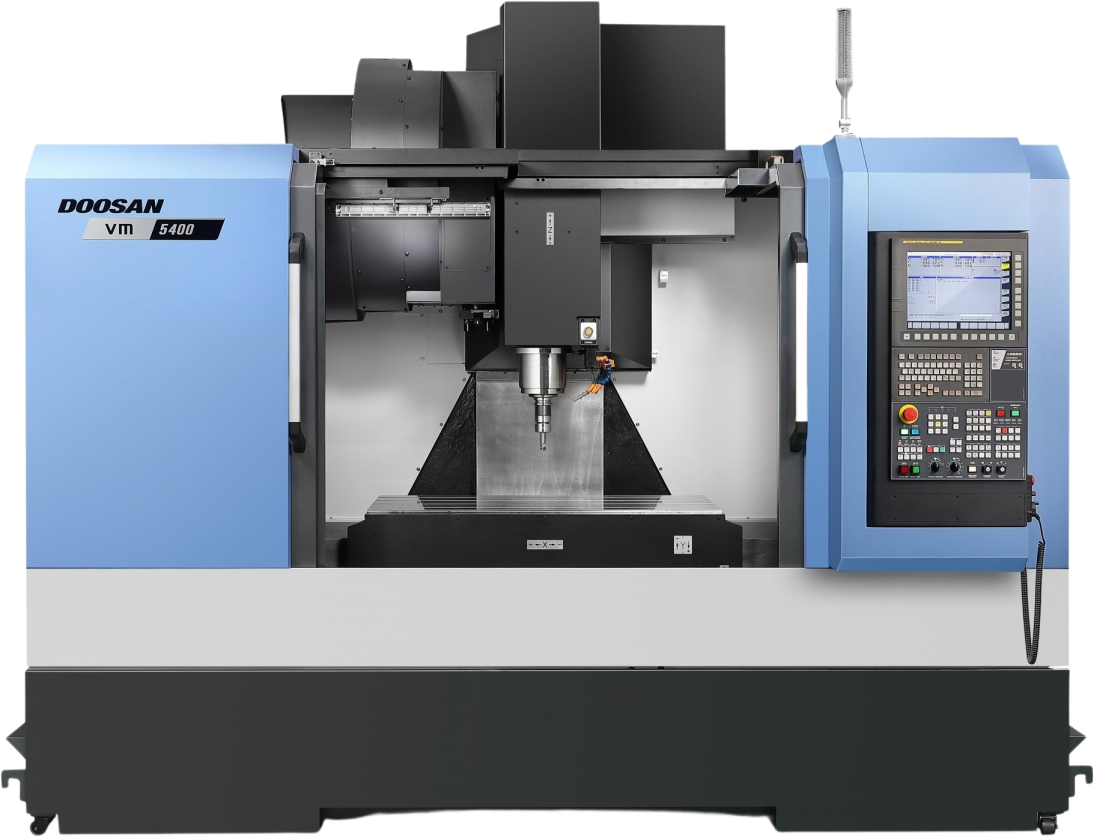

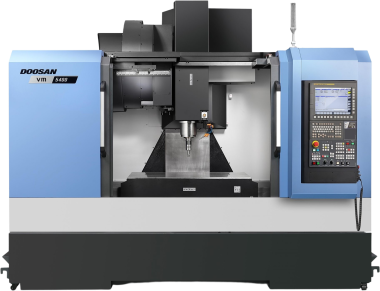

Image representative of Series and may not be the exact model
The Doosan VM Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
