Doosan VX Series
High Precision Ceramic Machining Center (VX 6500C) and Graphite Machining Center (VX 6500G)
Features
- Bridge type structure for high-performance, high-accuracy machining
- Low noise and high precision and performance spindle
- Integrated thermal compensation and cooling systems
- Ceramic and graphite dust protection packages to maintain reliability and accuracy of axis and spindle
or copy link
High-end vertical machining centers designed for non-metal (graphite v ceramic) die mould applications. The vertical machining centre series provides outstanding precision and guaranteed performance. The optimized feed system and a number of high-efficiency peripheral systems and devices improve productivity , efficiencies and process reliability.
The VX 6500C is capable of processing various high hardness/high heat resistance ceramic materials such as Si(silicon), SiC (silicon carbide), aluminium oxide, and Quartz.
Technical Specification
| X Axis Travel distance | 1100mm |
|---|---|
| Y Axis Travel distance | 650mm |
| Z Axis Travel distance | 550mm |
| X Axis Rapid Traverse | 30m/min |
| Y Axis Rapid Traverse | 30m/min |
| Z Axis Rapid Traverse | 30m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 117N·m |
| Table Length | 1200mm |
| Table Width | 650mm |
| Max. Table Weight | 800kg |
| No. of tool station | 30 |
Series Dimensions
| Length | 3000 - 4390mm |
|---|---|
| Width | 2920 - 2940mm |
| Height | 3100mm |
| Weight | 10000kg |

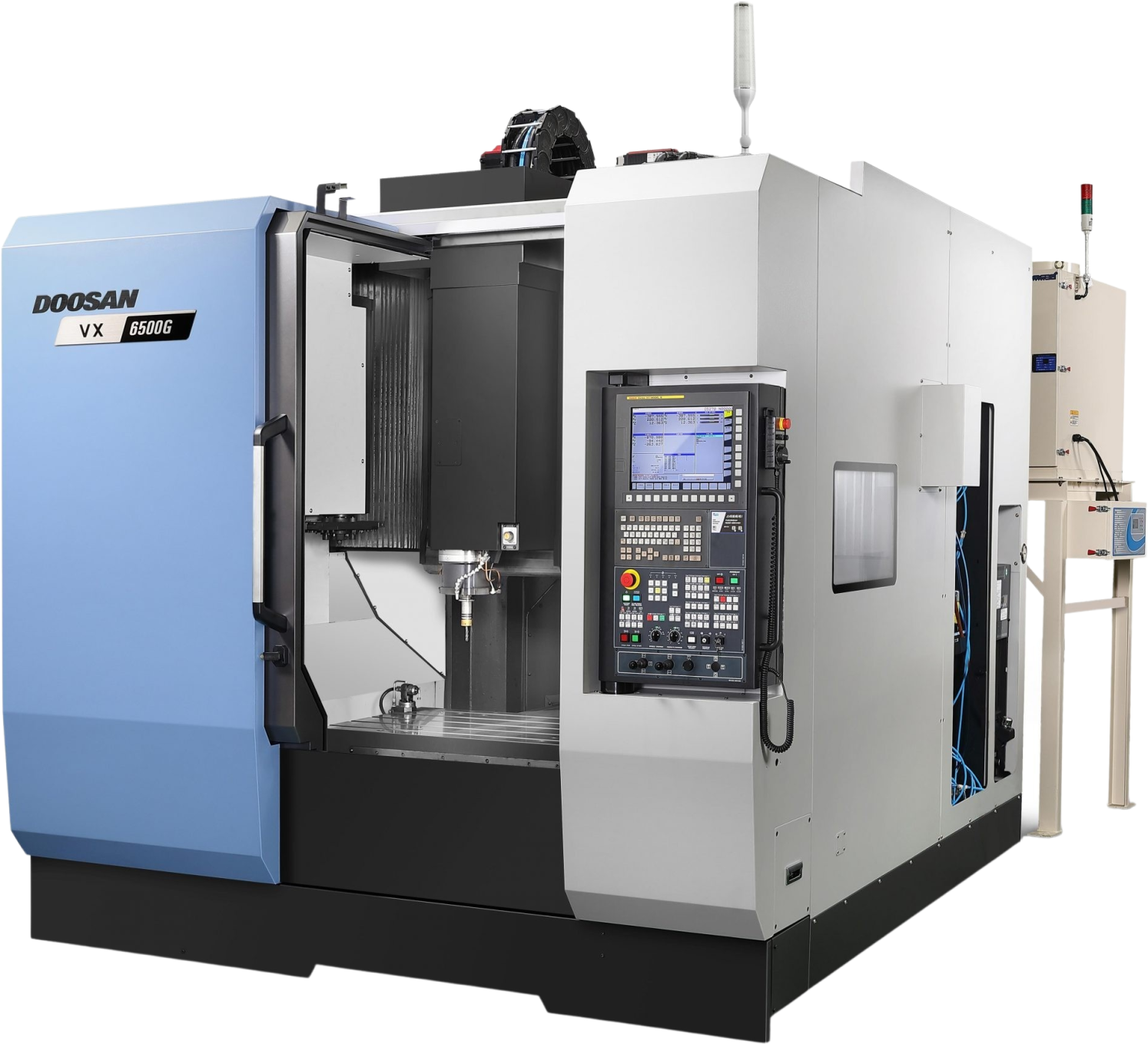

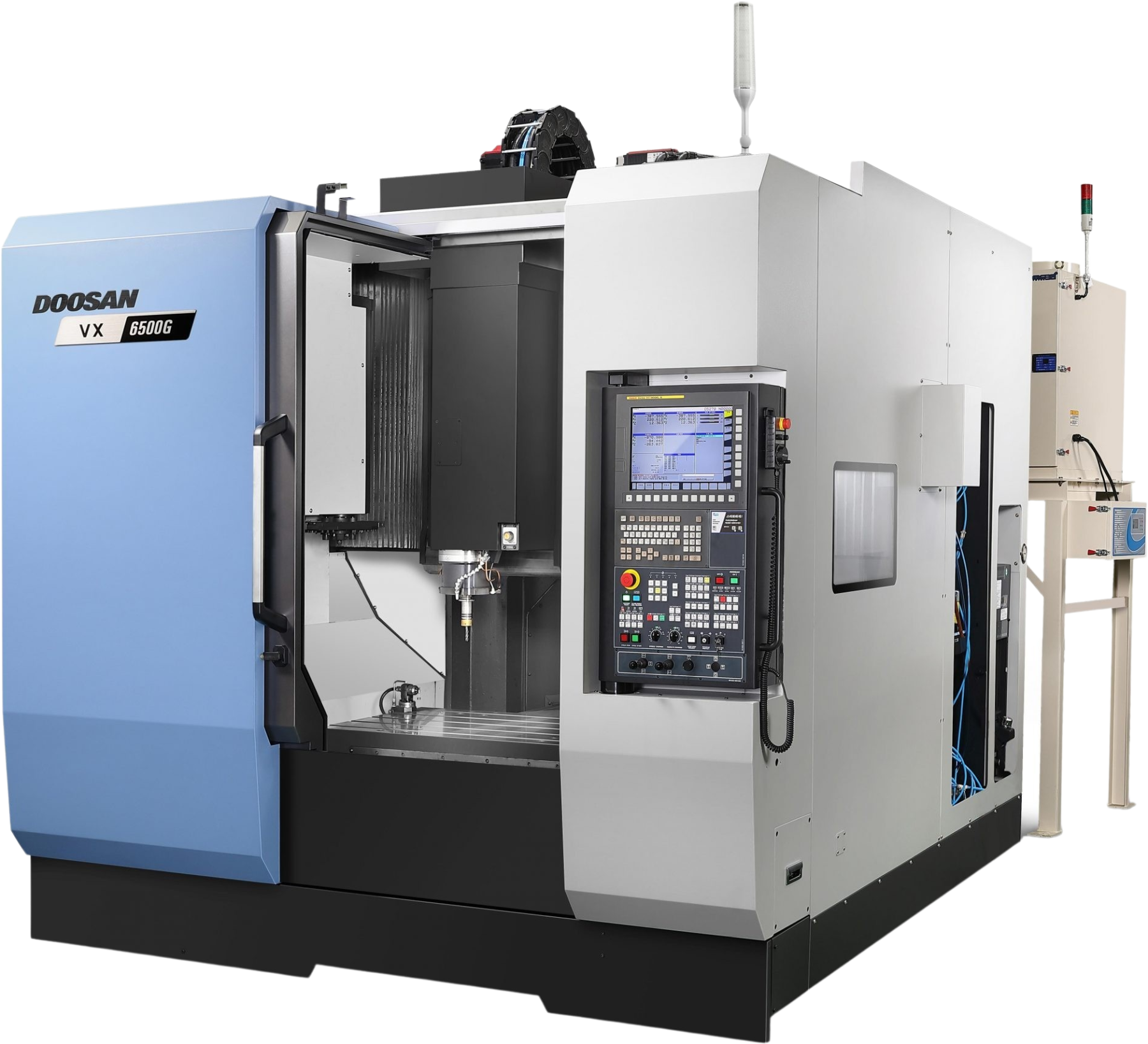

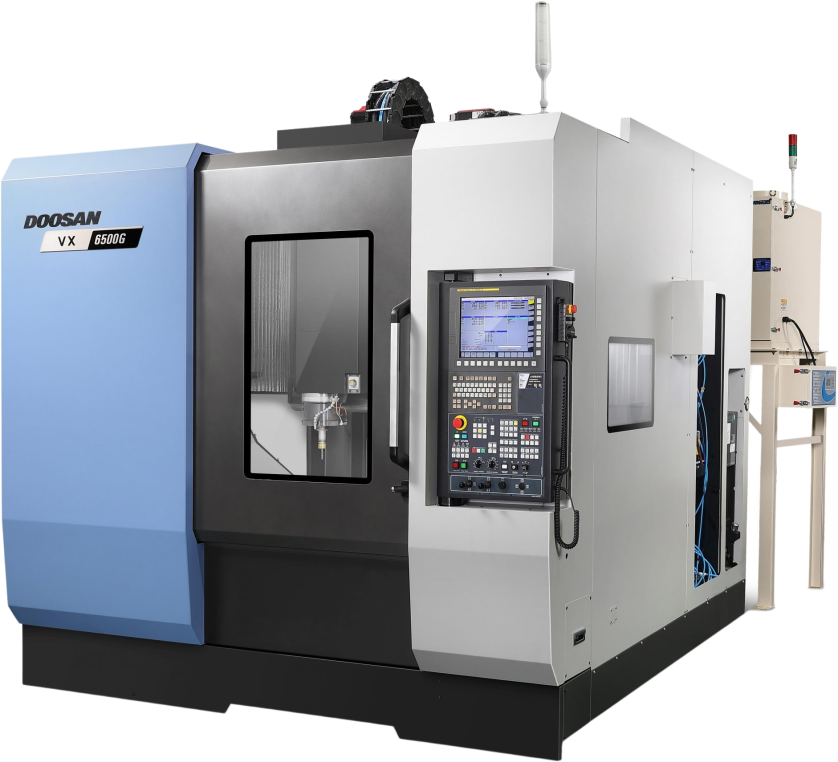

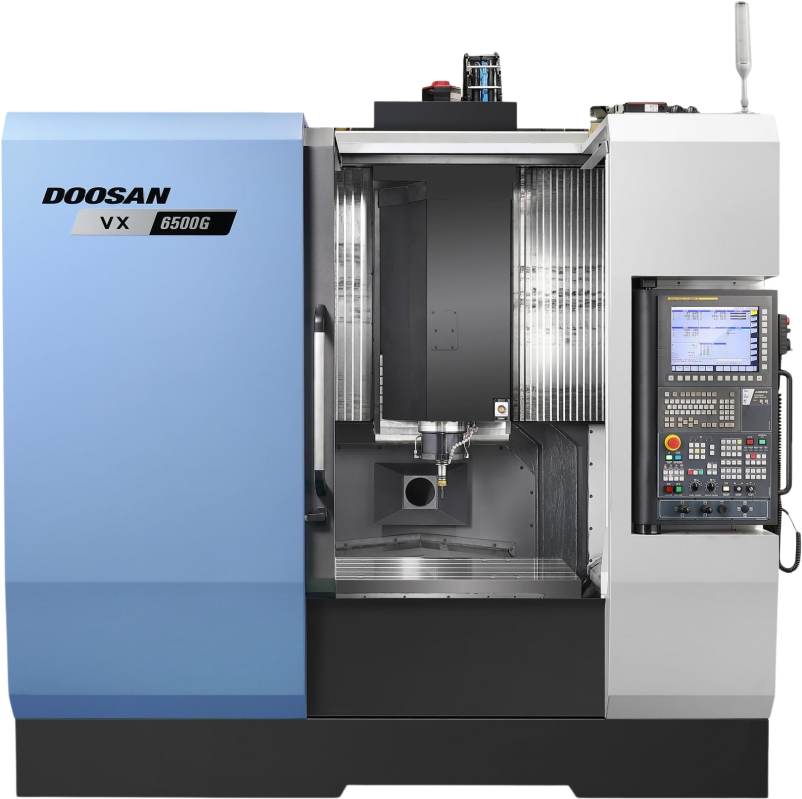

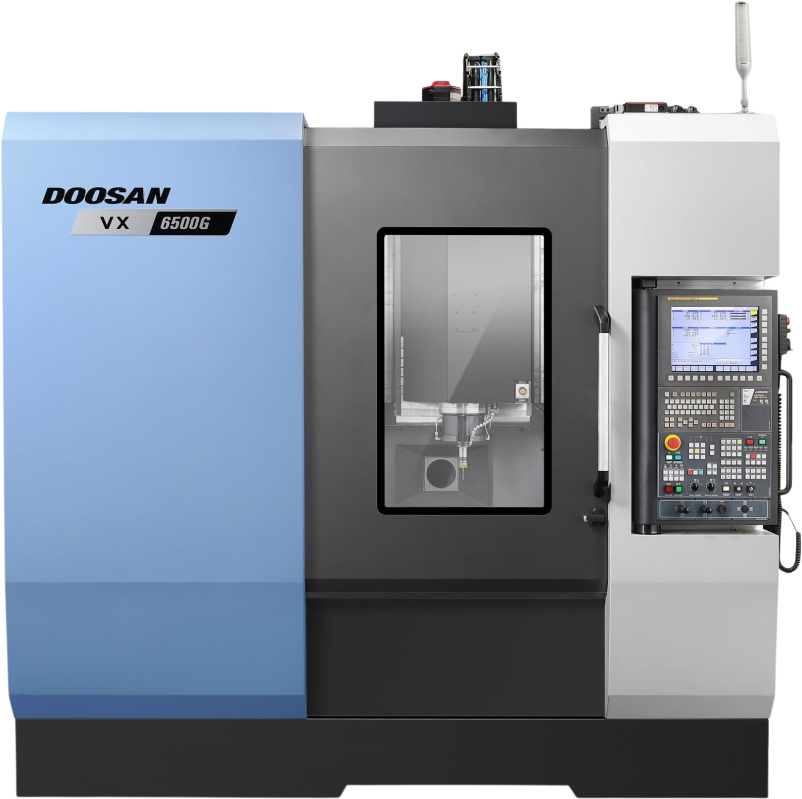

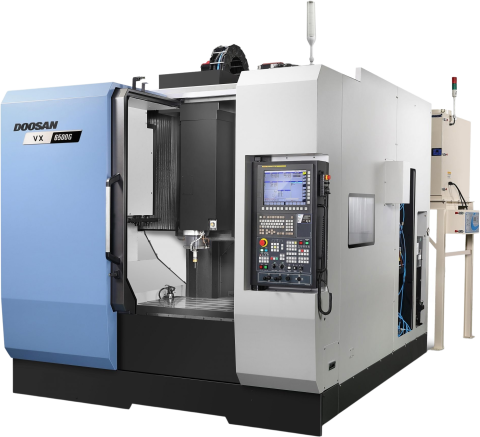

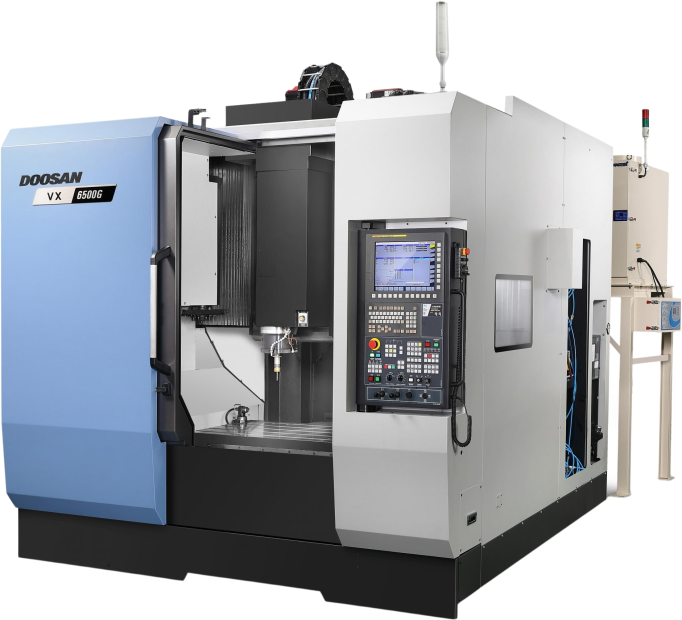

Image representative of Series and may not be the exact model
The Doosan VX Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
