Doosan HFP Series
The lightning fast Doosan HFP series of 5-axis machining profilers
Features
- Table Size - 4,990 X 1,500mm
- Spindle Taper - HSK63-A
- Spindle RPM - 30,000
or copy link
Doosan’s HFP series of 5-axis machining profilers are built for speed and power. With a 30,000 RPM universal head spindle powered by a 75kW motor, this series can handle some of the largest structural components, providing high-volume aluminum removal.
Technical Specification
| X Axis Travel distance | 4200mm |
|---|---|
| Y Axis Travel distance | 1600mm |
| Z Axis Travel distance | 550mm |
| Table Width | 1500mm |
| Max. Table Weight | 3000kg |
| X Axis Rapid Traverse | 60m/min |
| Y Axis Rapid Traverse | 40m/min |
| Z Axis Rapid Traverse | 60m/min |
| Max. Spindle Speed | 30000r/min |
| Max. Spindle Power | 75kW |
| Max. Spindle Torque | 48N·m |
| Table Length | 4000mm |
| No. of tool station | 120 |
Series Dimensions
| Length | 8000mm |
|---|---|
| Width | 18135mm |
| Height | 4250mm |
| Weight | 74200kg |

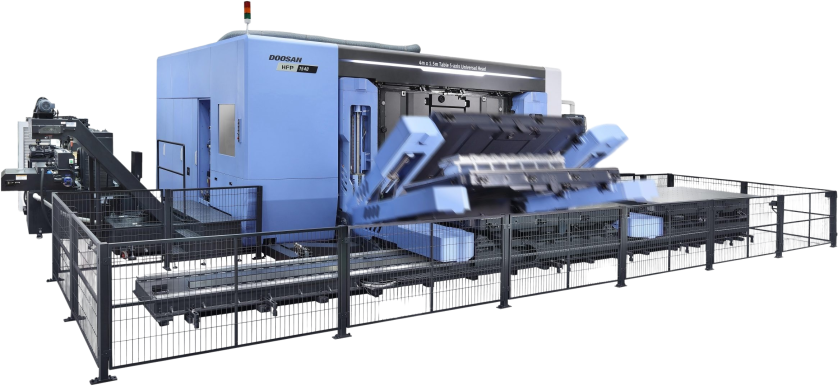

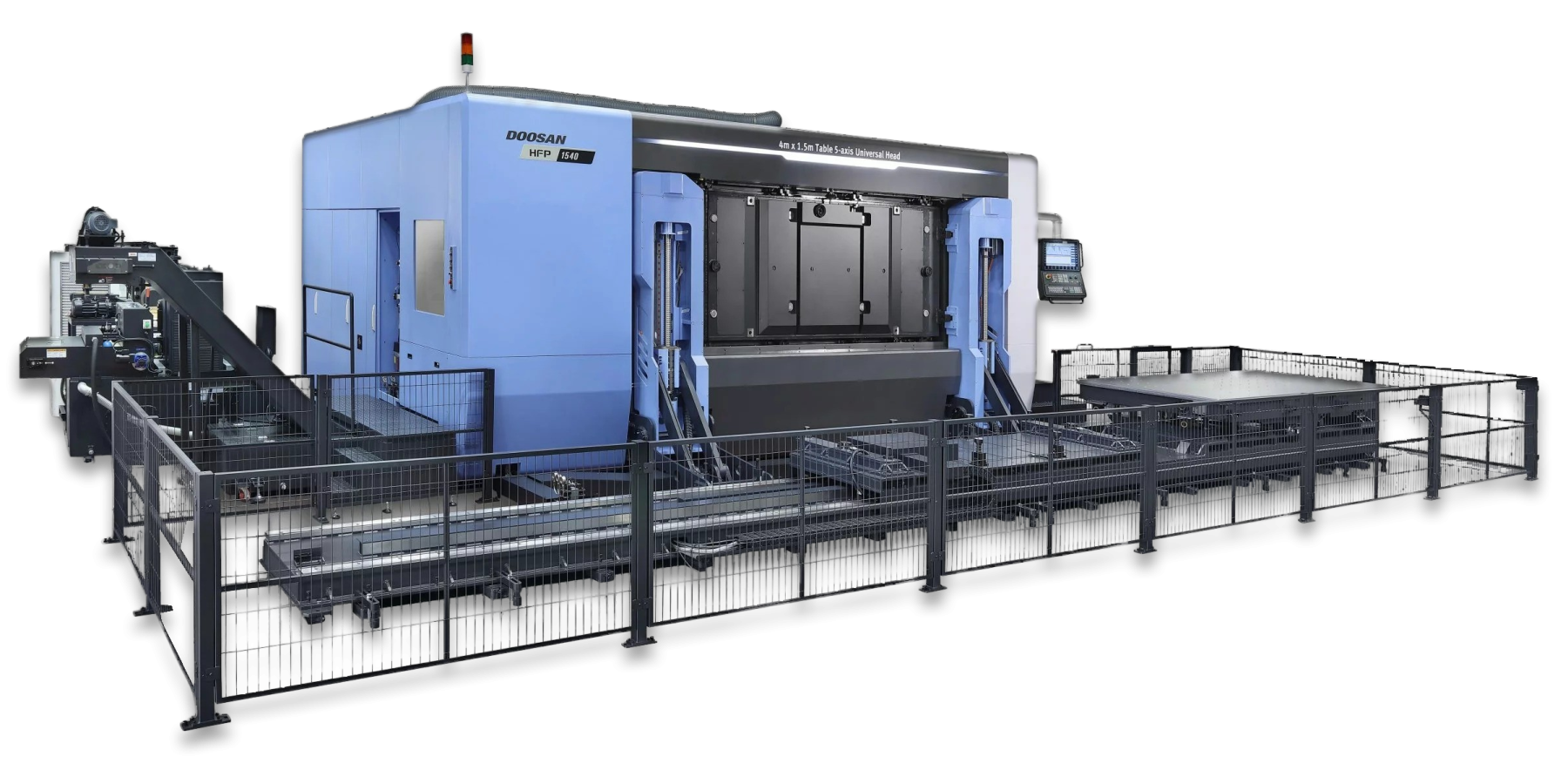

Image representative of Series and may not be the exact model
The Doosan HFP Series is compatible with siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
