Horizontal Machining Centres
Doosan horizontal machining centres deliver power, productivity and performance.
Find Your Perfect Product
High Speed and High Performance
Reliable and Fast Horizontal Machining Centres
The range of horizontal CNC machining centres is divided into High-Speed and High-Performance CNC machines.
The High-Speed machines have linear drives and fast acceleration/deceleration rates along with their twin-pallets and BT 40 spindle configurations.
The High-Performance range comprises heavy-duty box guide-way machines that deliver high-positional accuracy and proven process reliability in the most demanding machining applications.
Our Products
Select the machine type or series you’d like to explore, or scroll down for a full list of products in this category, and filter by the factors that matter to you.
- B-axis indexing table
- Powerful high-torque spindles
- 40m/min rapids
- 500mm x 500mm table size (x 2)
- Pallet Size - 400 - 800mm
- Spindle taper - 40, 50
- Spindle RPM - 6,000 - 20,000
- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 376 tools)
- B-axis indexing table
- Up to 800mm x 800mm table size (x2)
- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 256 tools)
- B-axis indexing table
- Up to 1250mm x 1250mm table size (x2)
All Horizontal Machining Centres
Showing 14 products
HM 1250W
Horizontal Machining Centres
- 45kW/3000rpm spindle
- 316ea tool stations
- 11526 x 5822 x 4581 mm (LxWxH)
HM 1250
Horizontal Machining Centres
- 26kW/6000rpm spindle
- 316ea tool stations
- 10530 x 5822 x 4130 mm (LxWxH)
HM 1000
Horizontal Machining Centres
- 26kW/6000rpm spindle
- 316ea tool stations
- 9657 x 5822 x 3885 mm (LxWxH)
NHM 8000
Horizontal Machining Centres
- 35kW/6000rpm spindle
- 376ea tool stations
- 7380 x 4325 x 3760 mm (LxWxH)
NHM 6300
Horizontal Machining Centres
- 35kW/6000rpm spindle
- 376ea tool stations
- 6410 x 3930 x 3495 mm (LxWxH)
NHM 5000
Horizontal Machining Centres
- 25kW/6000rpm spindle
- 376ea tool stations
- 6055 x 3670 x 3330 mm (LxWxH)
NHP 5500 2nd Generation
Horizontal Machining Centres
- 37kW/10000rpm spindle
- 376ea tool stations
- 6389 x 3364 x 3199 mm (LxWxH)
NHP 8000
Horizontal Machining Centres
- 45kW/10000rpm spindle
- 376ea tool stations
- 7878 x 4375 x 3803 mm (LxWxH)
NHP 6300
Horizontal Machining Centres
- 45kW/10000rpm spindle
- 376ea tool stations
- 6520 x 3930 x 3495 mm (LxWxH)
NHP 5500
Horizontal Machining Centres
- 45kW/10000rpm spindle
- 376ea tool stations
- 5940 x 3670 x 3330 mm (LxWxH)
NHP 5000
Horizontal Machining Centres
- 30kW/15000rpm spindle
- 275ea tool stations
- 5450 x 2680 x 2880 mm (LxWxH)

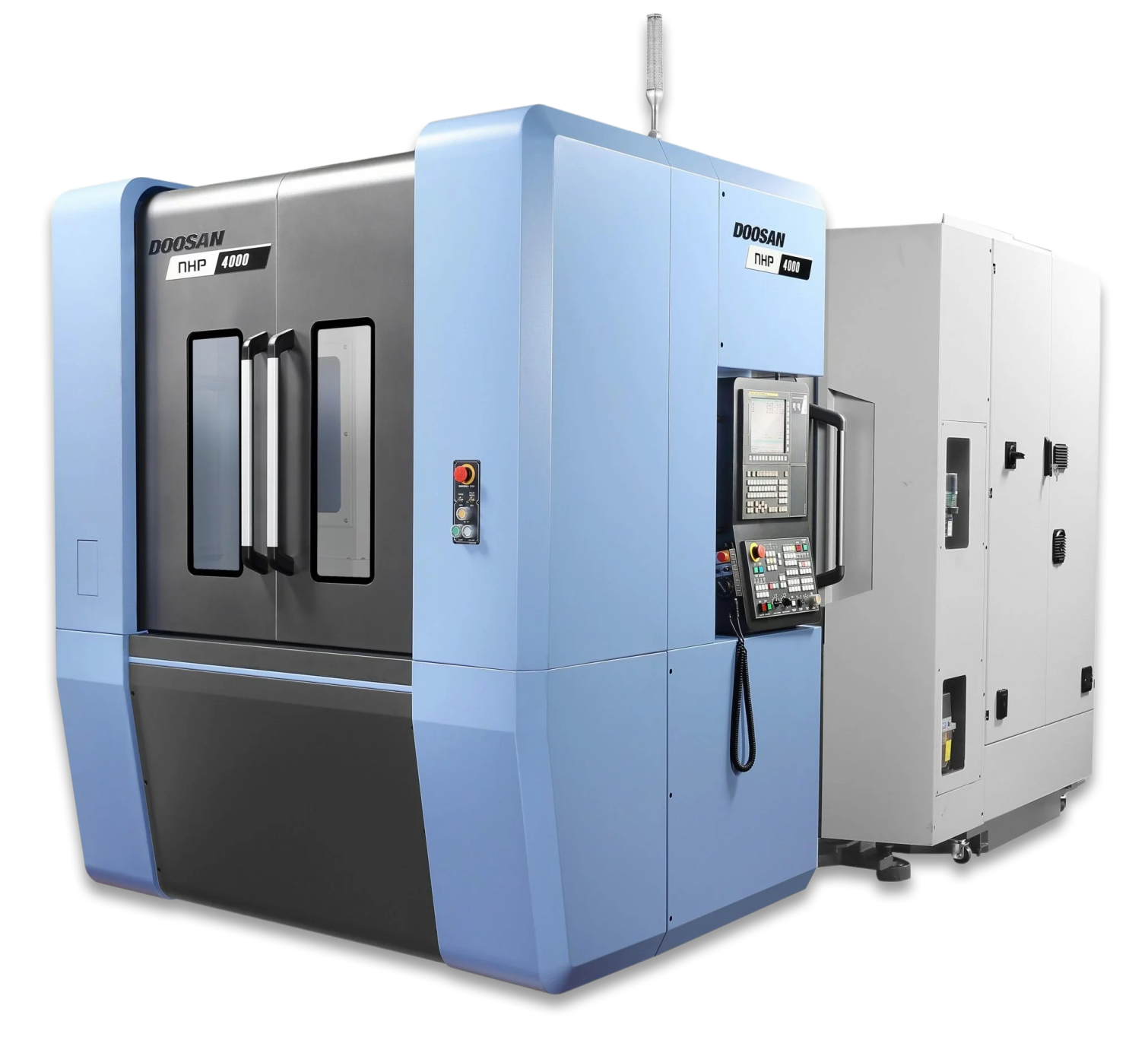

NHP 4000
Horizontal Machining Centres
- 30kW/15000rpm spindle
- 275ea tool stations
- 4950 x 2300 x 2690 mm (LxWxH)
HC 500 II
Horizontal Machining Centres
- 18.5kW/8000rpm spindle
- 262ea tool stations
- 6080 x 2680 x 3000 mm (LxWxH)
HC 400 II
Horizontal Machining Centres
- 18.5kW/8000rpm spindle
- 262ea tool stations
- 5240 x 2260 x 2830 mm (LxWxH)
Filter
Related Case Studies
Latest machine tool investment – vindicated!
Doosan NHP 5000 Horizontal Machining Centre
New Doosan NHP 5000 horizontal machining centre investment joins nine other Doosan machines and is central to securing new machining contracts in the bio-pharmaceutical industry by boosting milling productivity levels and improving operational efficiencies for leading precision subcontract specialist Endeavor Engineering, based in Didcot, Oxfordshire.
Entrepreneurialism – alive and kicking in Stoke-on-Trent!
Doosan NHP 6300 Horizontal Machining Centre
Mills CNC supplied ECAM Engineering with its first Doosan machine tool, an NHP 6300 horizontal machining centre. ECAM already had 3-axis vertical machining centres creating precision fabricated components for customers in construction, rail & automotive, but the NHP 6300 with its twin-pallet & B-axis table machines parts quicker and more efficiently than before.
No better place to see…no better place to be!
Doosan NHM 6300 Horizontal Machining Centre
Doosan machining centres showcase Nikken’s latest and most advanced tooling technologies. The Nikken Innovation Centre located in Sheffield is impressive and at its heart is a Doosan NHM6300 Horizontal Machining Centre supplied by Mills CNC. The machine is equipped with a Nikken top mounted CNC 501TFA rotary table to demonstrate machining large titanium components.
