Doosan HC II Series
Doosan High-Speed Horizontal Machining centers – HC range
Features
- B-axis indexing table
- Powerful high-torque spindles
- 40m/min rapids
- 500mm x 500mm table size (x 2)
or copy link
Doosan’s HC range of High-Speed Horizontal machines provide manufacturers with high productivity, unrivalled precision and optimised removal rates.
They are equipped with automatic pallet changers, high-torque spindles, large tool changers and feature fast rapid rates (40m/min).
There are two models in the range – the HC 400 and HC 500
Technical Specification
| X Axis Travel distance | 600 - 850mm |
|---|---|
| Y Axis Travel distance | 560 - 700mm |
| Z Axis Travel distance | 565 - 750mm |
| Max. Workpiece Diameter | 600 - 800mm |
| Max. Workpiece Height | 800 - 900mm |
| Max. Workpiece Weight | 400 - 500kg |
| X Axis Rapid Traverse | 40m/min |
| Y Axis Rapid Traverse | 40m/min |
| Z Axis Rapid Traverse | 40m/min |
| Max. Spindle Speed | 8000r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 353N·m |
| Tool Taper | |
| Pallet Size | 400mm |
| Max. Table Weight | 400 - 500kg |
| No. of tool station | 262 |
Series Dimensions
| Length | 5240 - 6080mm |
|---|---|
| Width | 2260 - 2680mm |
| Height | 2830 - 3000mm |
| Weight | 11000 - 12500kg |

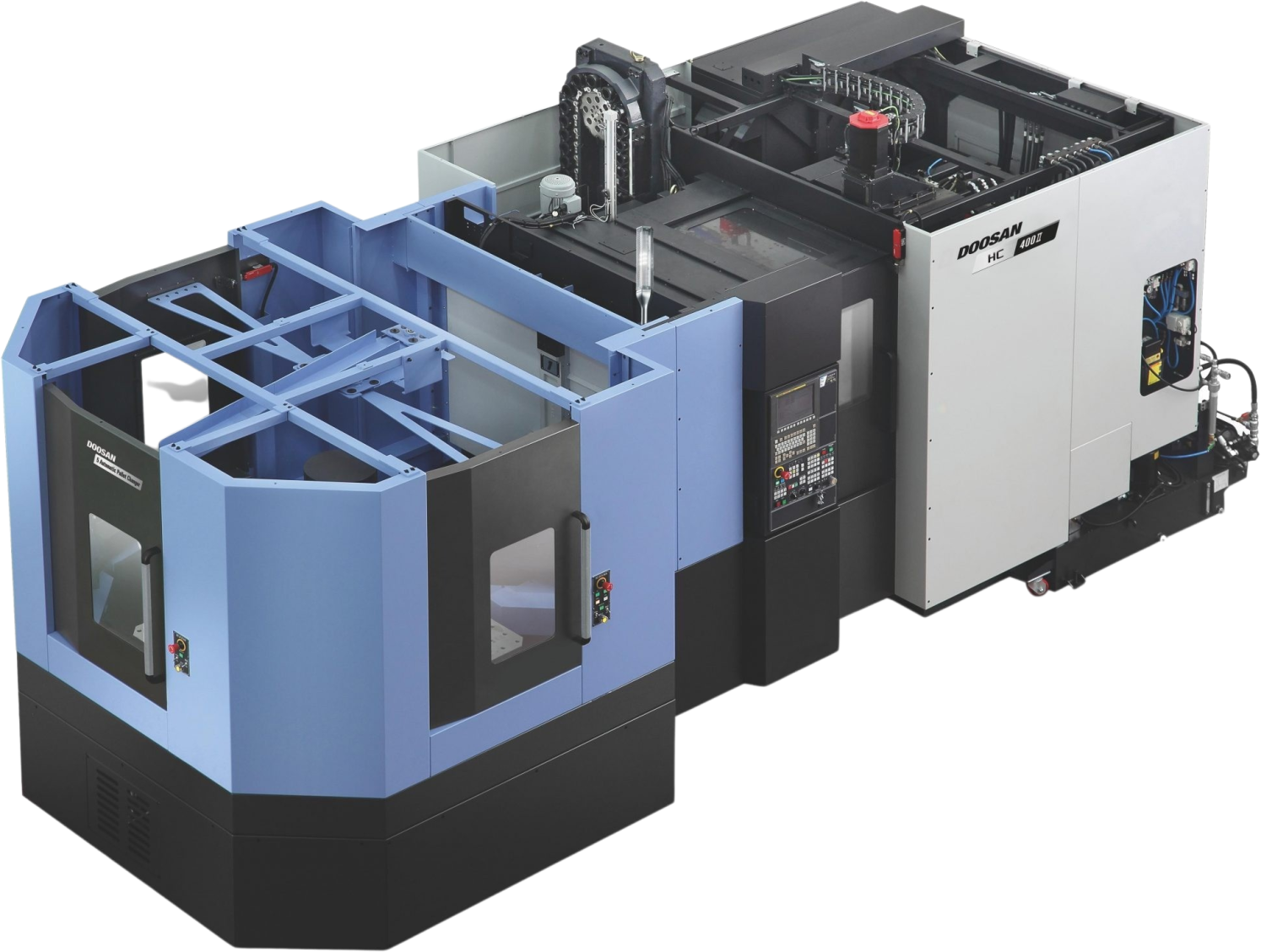

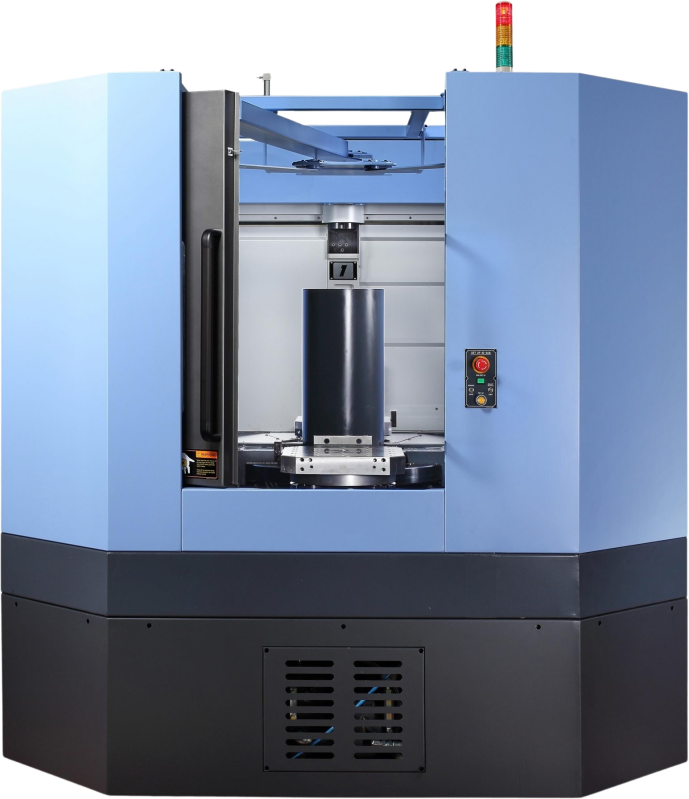

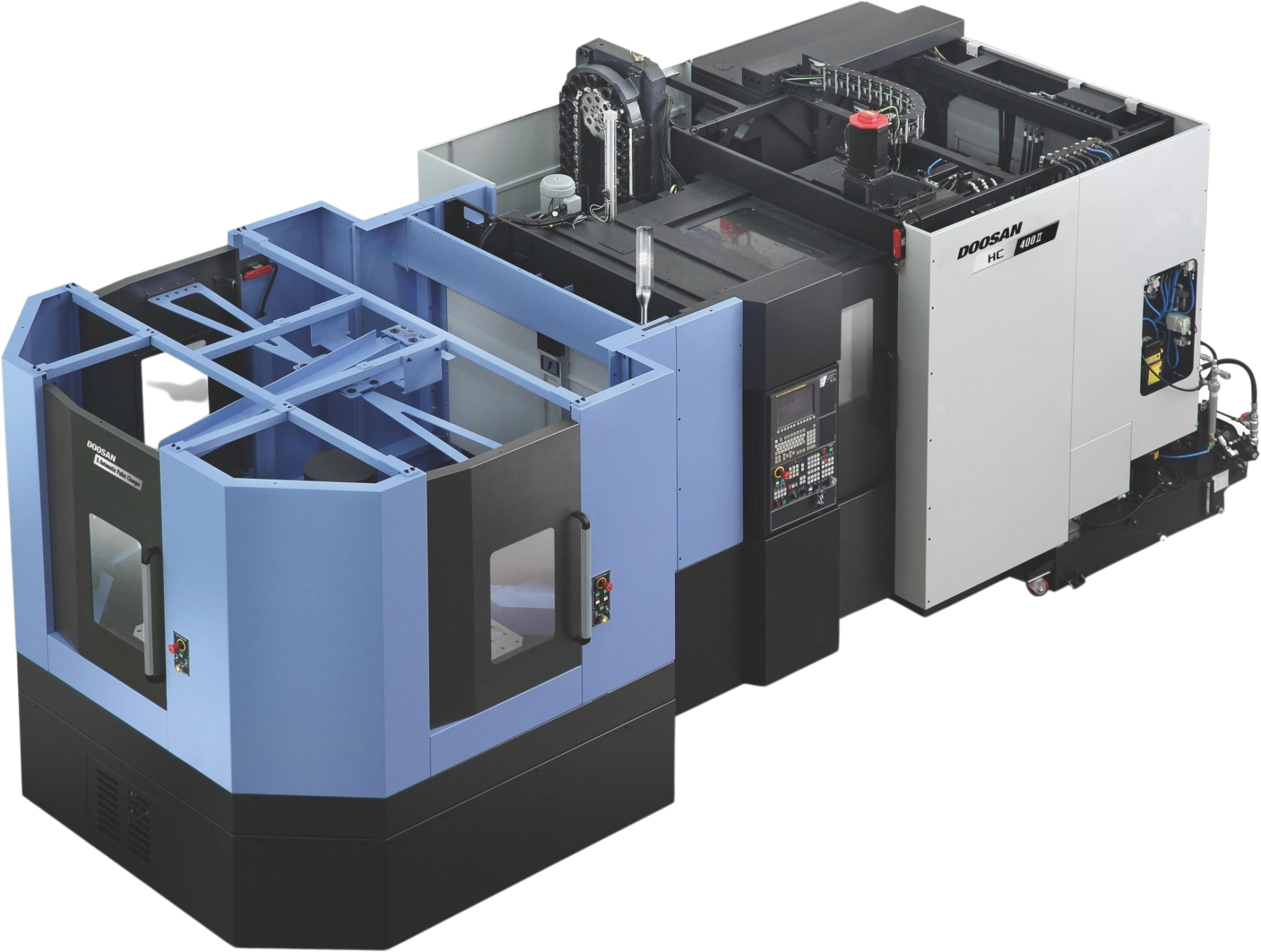

Image representative of Series and may not be the exact model
The Doosan HC II Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
