Doosan HM Series
Doosan Heavy-Duty Horizontal Machining centers – HM range
Features
- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 256 tools)
- B-axis indexing table
- Up to 1250mm x 1250mm table size (x2)
or copy link
Doosan’s range of HM large, heavy-duty Horizontal Machines is tough, reliable and ready to tackle even the most difficult of applications.
There are two models in the range – the HM 1000 and HM 1250. Both machines have a box guide-way design, advanced high-torque spindles, large tool magazines and automatic (twin) pallet changers.
Technical Specification
| X Axis Travel distance | 2100mm |
|---|---|
| Y Axis Travel distance | 1250 - 1500mm |
| Z Axis Travel distance | 1250 - 1500mm |
| Max. Workpiece Diameter | 2000mm |
| Max. Workpiece Height | 1475 - 1725mm |
| Max. Workpiece Weight | 3000 - 5000kg |
| X Axis Rapid Traverse | 24m/min |
| Y Axis Rapid Traverse | 24m/min |
| Z Axis Rapid Traverse | 24m/min |
| Max. Spindle Speed | 3000 - 6000r/min |
| Max. Spindle Power | 26 - 45kW |
| Max. Spindle Torque | 1910 - 1989N·m |
| Tool Taper | |
| Pallet Size | 1000 - 1250mm |
| Max. Table Weight | 3000 - 5000kg |
| No. of tool station | 316 |
Series Dimensions
| Length | 9657 - 11526mm |
|---|---|
| Width | 5822mm |
| Height | 3885 - 4581mm |
| Weight | 29000 - 33000kg |

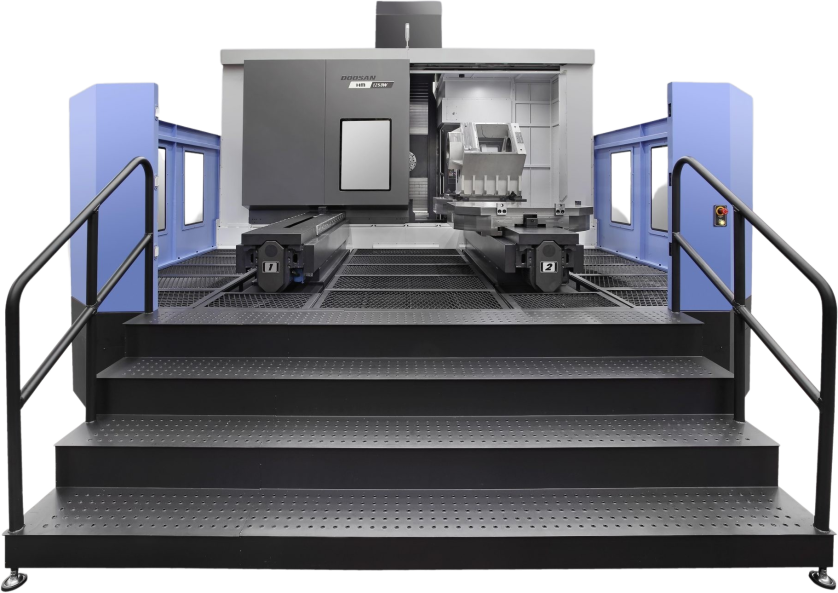

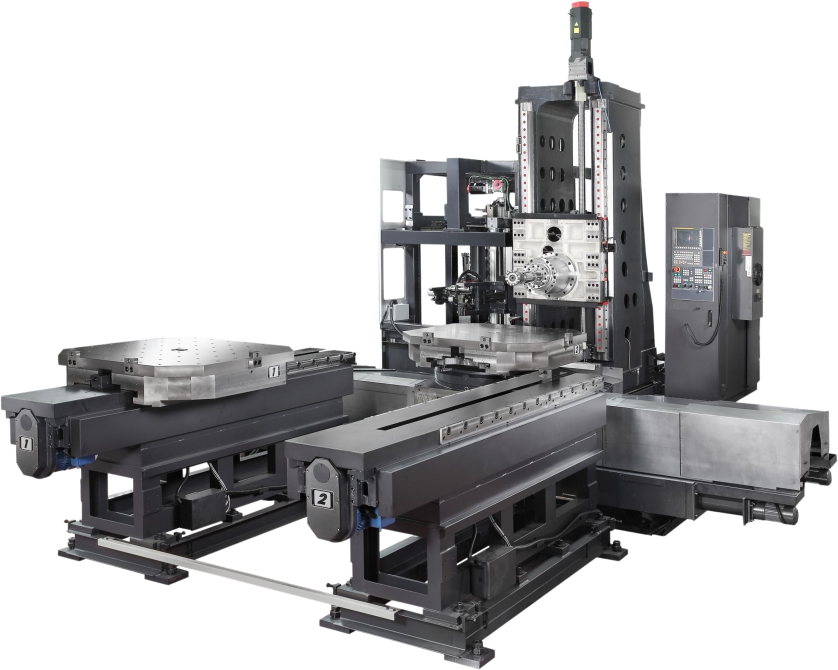

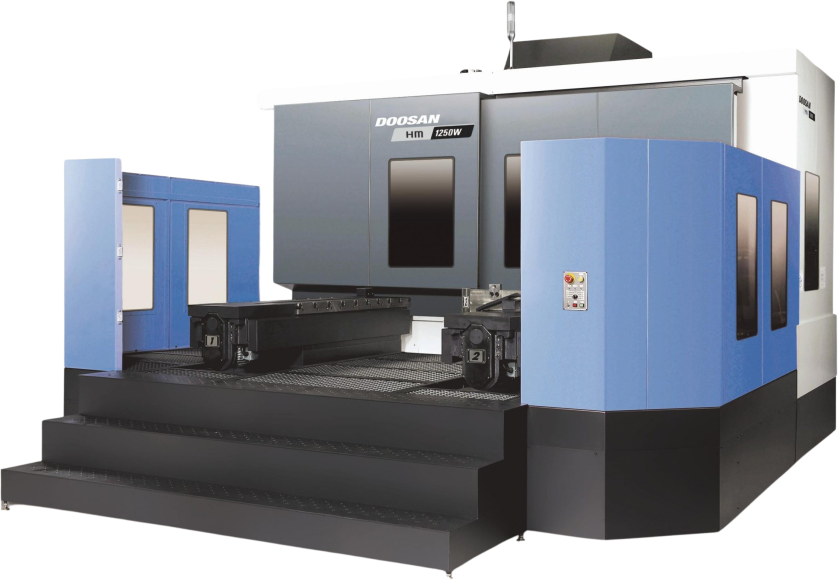

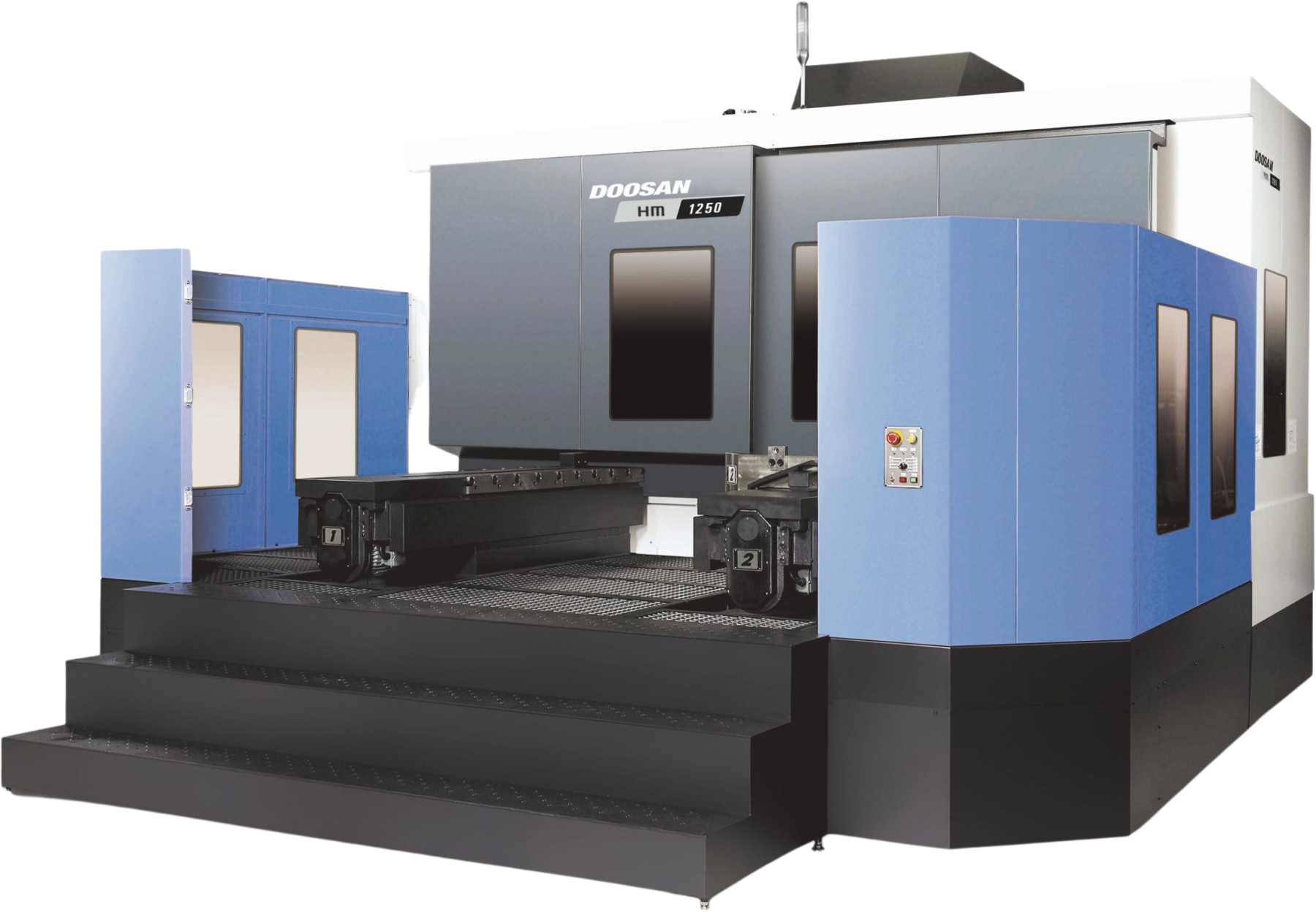

Image representative of Series and may not be the exact model
The Doosan HM Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
