Doosan NHM Series
Doosan Heavy-Duty Horizontal Machining centers: NHM Range
Features

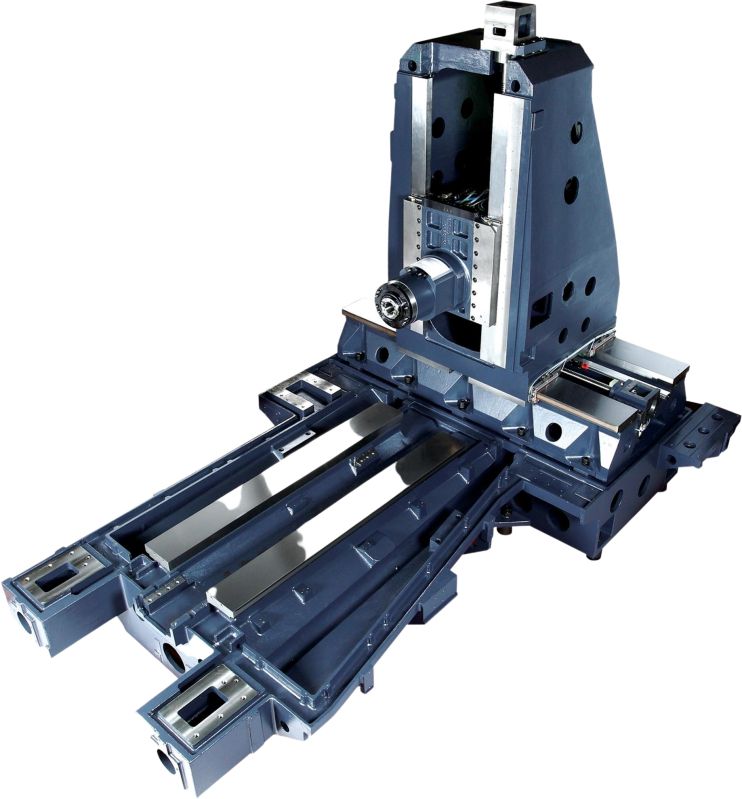

- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 376 tools)
- B-axis indexing table
- Up to 800mm x 800mm table size (x2)
or copy link
Doosan’s range of heavy-duty Horizontal machines is tough, reliable and ready to tackle even the most difficult of applications.
NHM machines have a box-guide-way design and feature powerful spindles (50 Taper) for challenging machining operations, large tool magazines and automatic pallet changers (x 2 tables) for increased productivity and flexibility.
There are 3 different sized models in the range – the NHM 5000, NHM 6300 and NHM 8000.
Technical Specification
| X Axis Travel distance | 800 - 1400mm |
|---|---|
| Y Axis Travel distance | 700 - 1050mm |
| Z Axis Travel distance | 850 - 1200mm |
| Max. Workpiece Diameter | 850 - 1450mm |
| Max. Workpiece Height | 1100 - 1550mm |
| Max. Workpiece Weight | 800 - 2000kg |
| X Axis Rapid Traverse | 24 - 30m/min |
| Y Axis Rapid Traverse | 24 - 30m/min |
| Z Axis Rapid Traverse | 24 - 30m/min |
| Max. Spindle Speed | 6000r/min |
| Max. Spindle Power | 25 - 35kW |
| Max. Spindle Torque | 1034 - 1732N·m |
| Tool Taper | |
| Pallet Size | 500 - 800mm |
| Max. Table Weight | 800 - 2000kg |
| No. of tool station | 376 |
Series Dimensions
| Length | 6055 - 7380mm |
|---|---|
| Width | 3670 - 4325mm |
| Height | 3330 - 3760mm |
| Weight | 18500 - 27000kg |

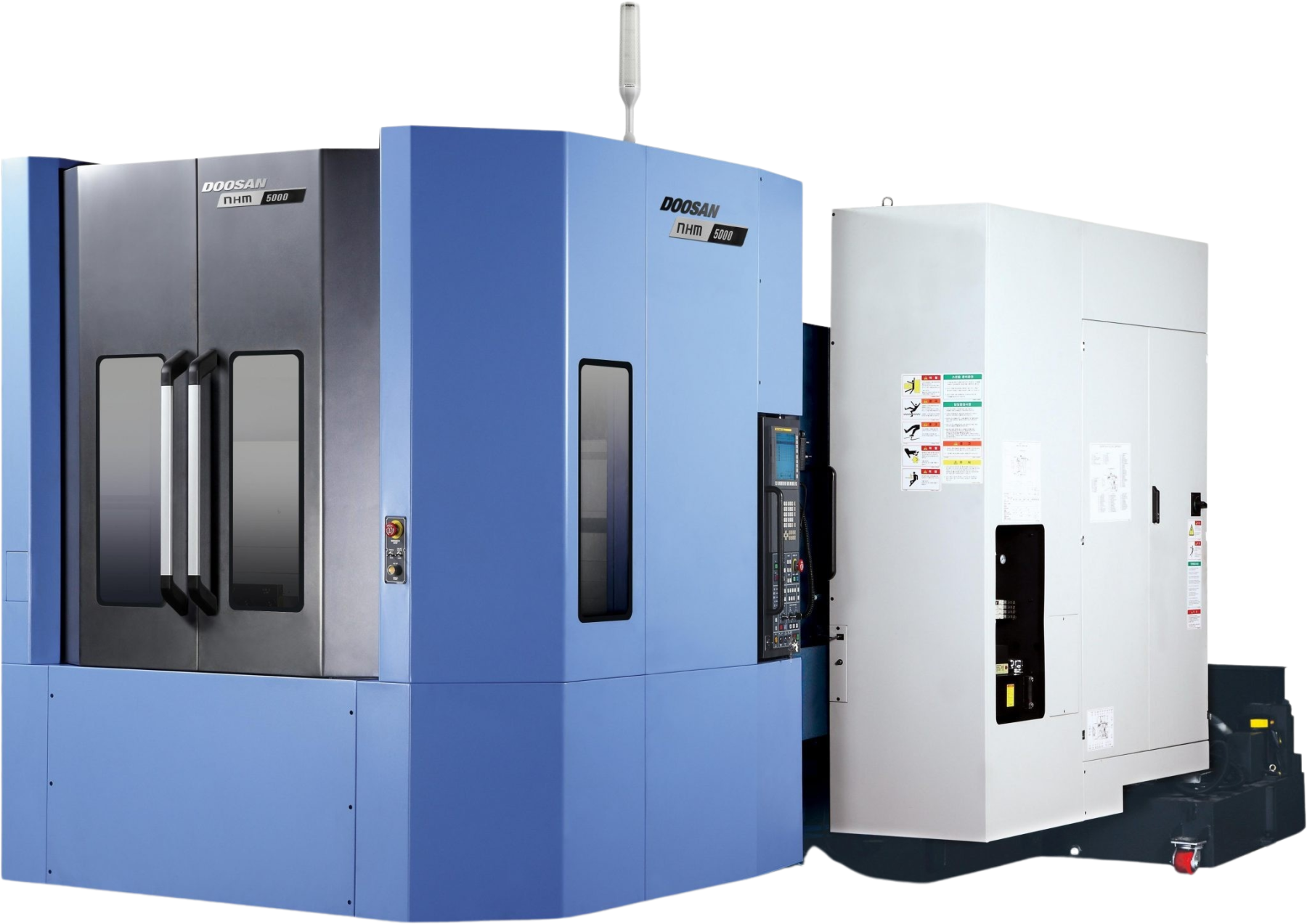

Image representative of Series and may not be the exact model
The Doosan NHM Series is compatible with Fanuc and Siemens.
