Doosan XC 4000-2SP Series
High speed 2 spindle Dual Pallet Machining center – XC 4000D-2SP, XC 4000DA-2SP
Features
- Extreme high productivity performance
- High accuracy control
or copy link
The XC range of 2 spindle machines are designed to deliver huge productivity and efficiency gains and deliver better productivity in comparison to standard 1 x spindle general vertical machining centres.
Technical Specification
| X Axis Travel distance | 640mm |
|---|---|
| Y Axis Travel distance | 400mm |
| Z Axis Travel distance | 360mm |
| X Axis Rapid Traverse | 70m/min |
| Y Axis Rapid Traverse | 70m/min |
| Z Axis Rapid Traverse | 70m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 15kW |
| Max. Spindle Torque | 95N·m |
| Table Length | 790mm |
| Table Width | 300mm |
| Max. Table Weight | 200kg |
| No. of tool station | 24 |
Series Dimensions
| Length | 6156mm |
|---|---|
| Width | 2230mm |
| Height | 3200mm |
| Weight | 2000kg |

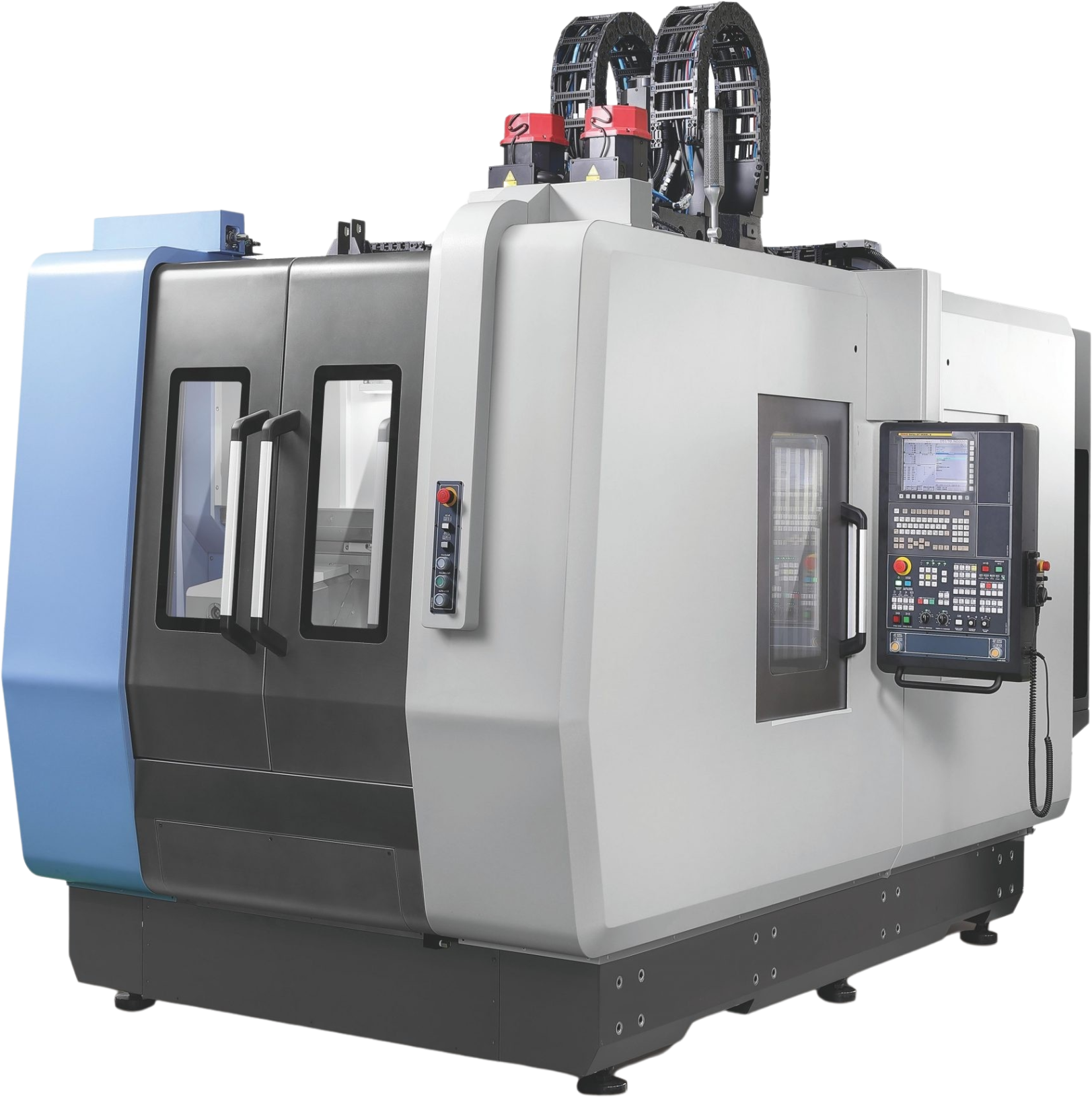

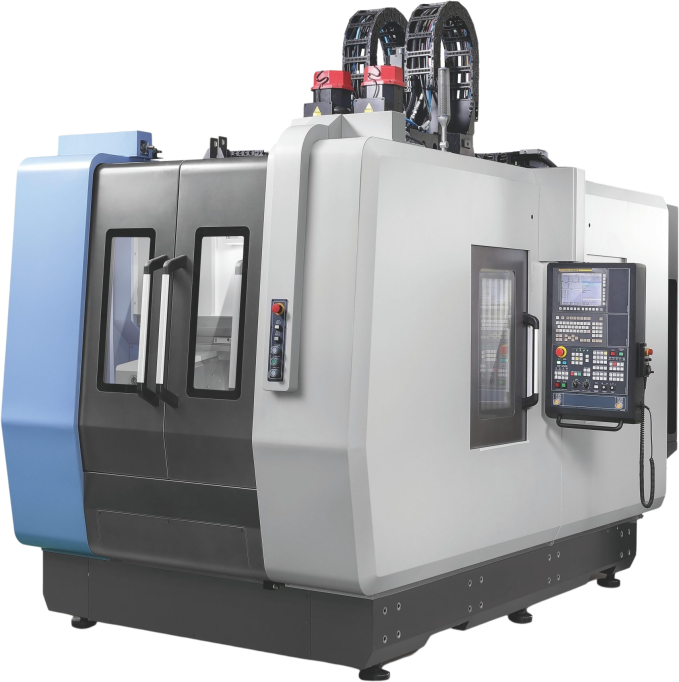

Image representative of Series and may not be the exact model
The Doosan XC 4000-2SP Series is compatible with fanuc.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Series from Two-Spindle Machining Centres
- X-Axis Travel - 1,040mm
- Spindle taper - 40
- Spindle RPM - 8,000 - 12,000
