Doosan DNM 5AX Series

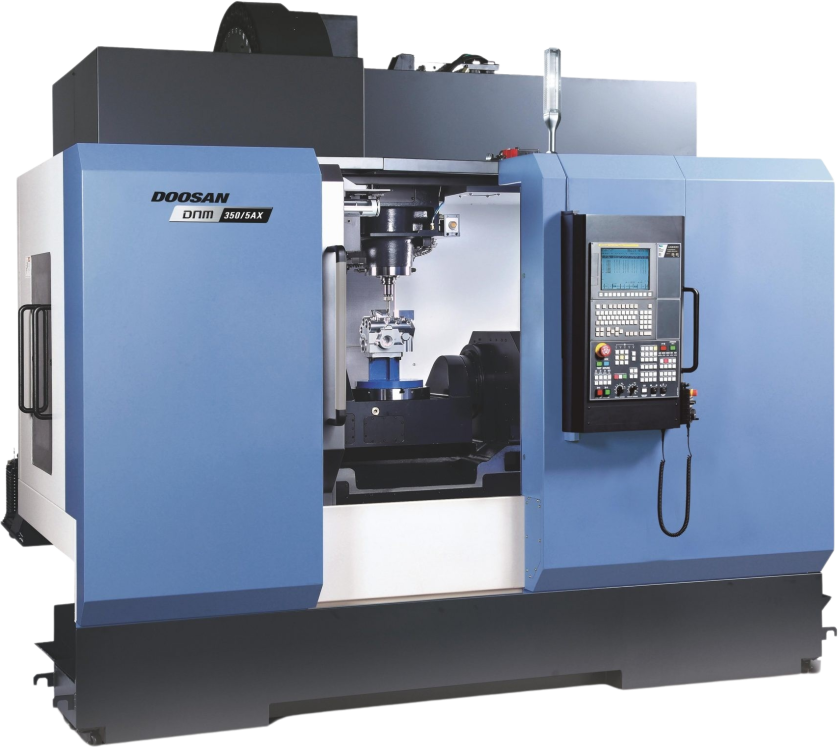

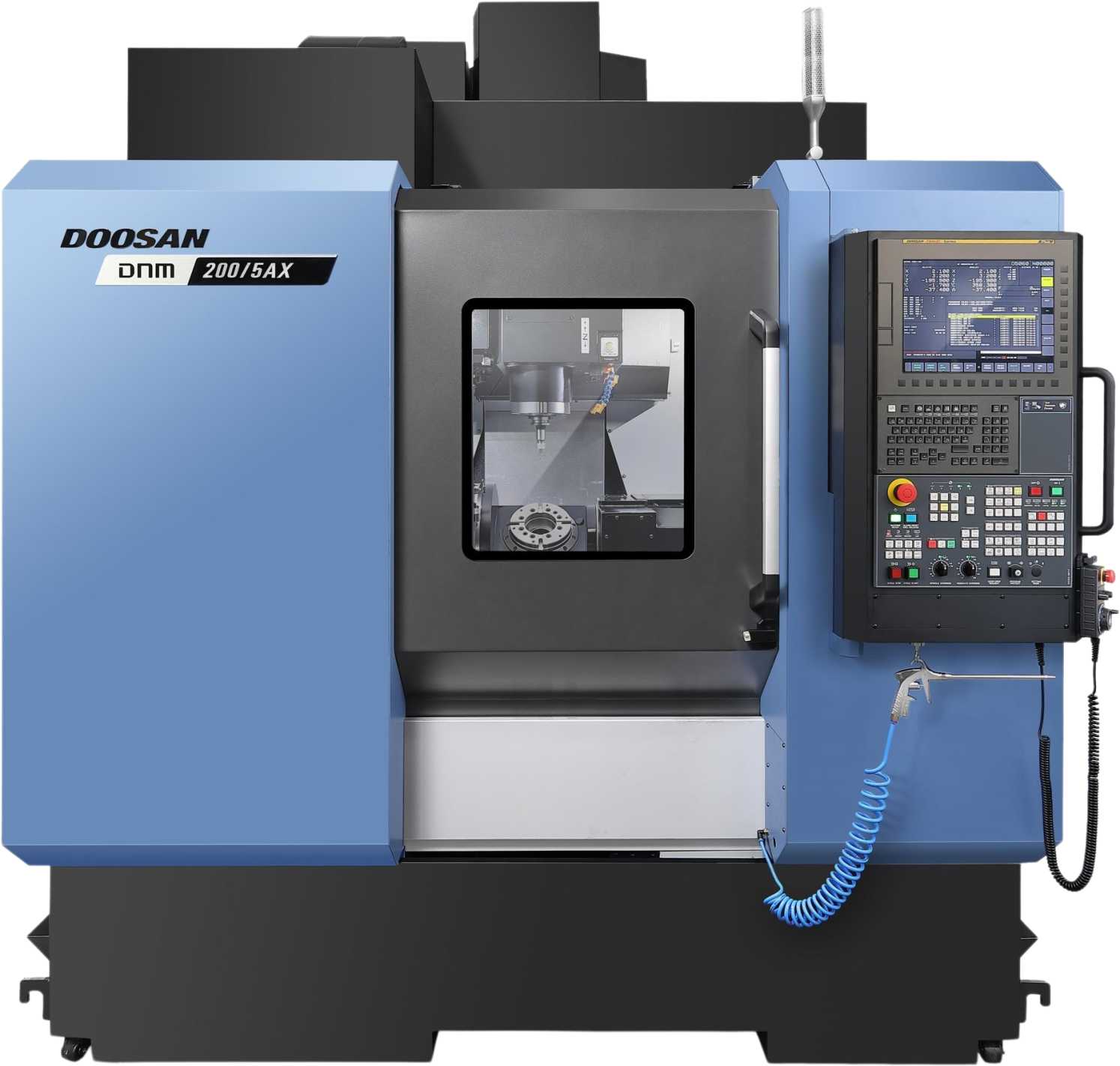

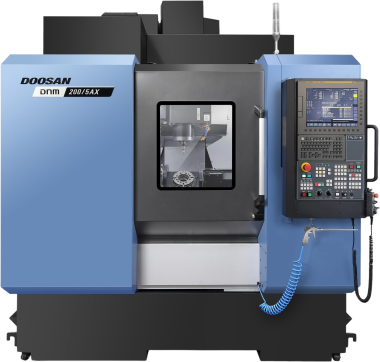

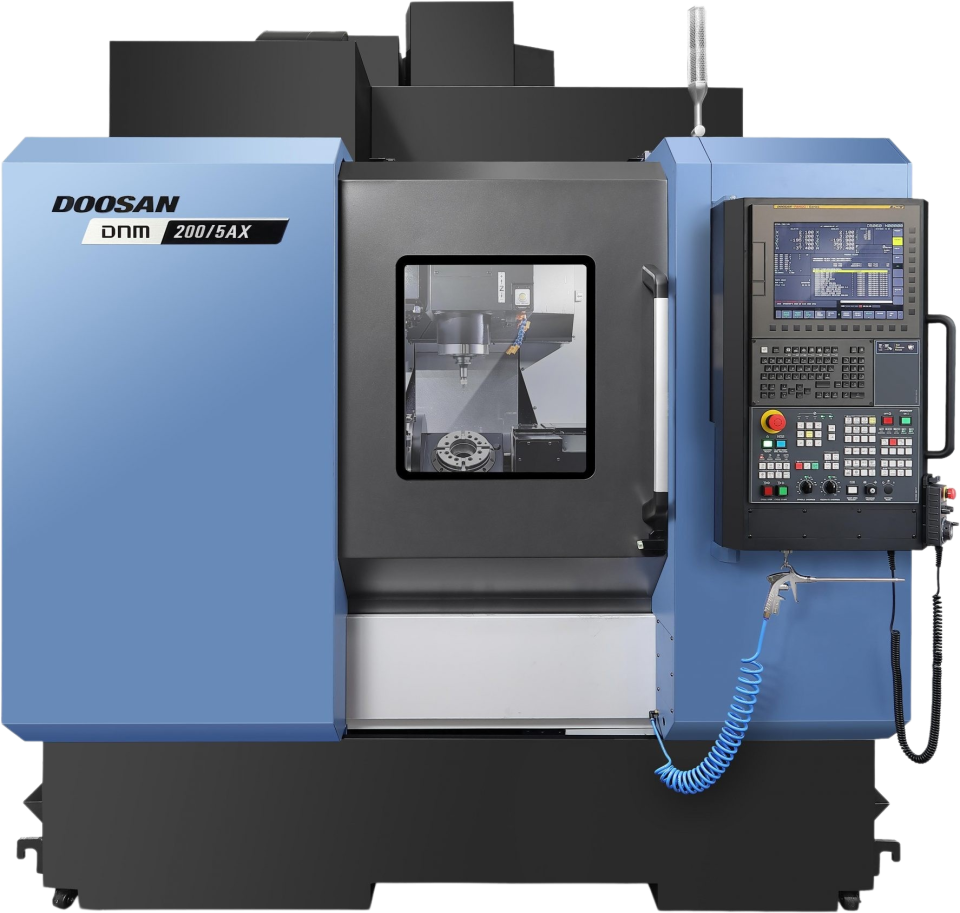

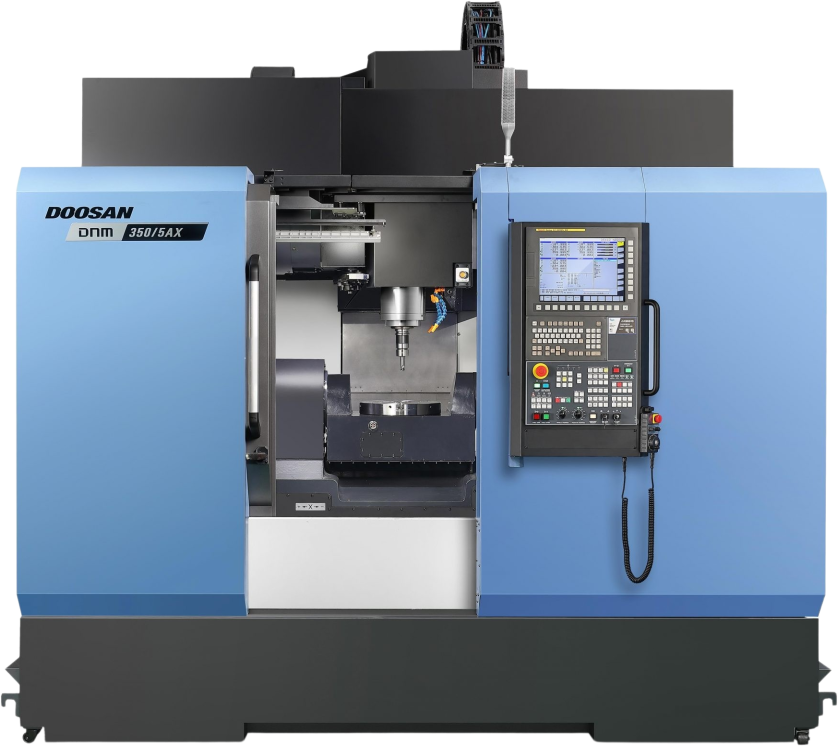

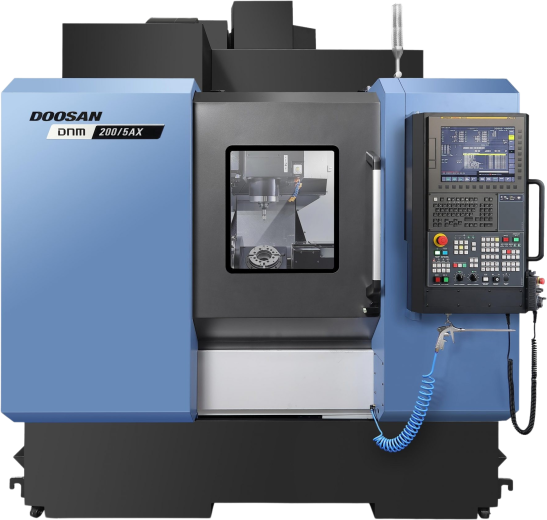

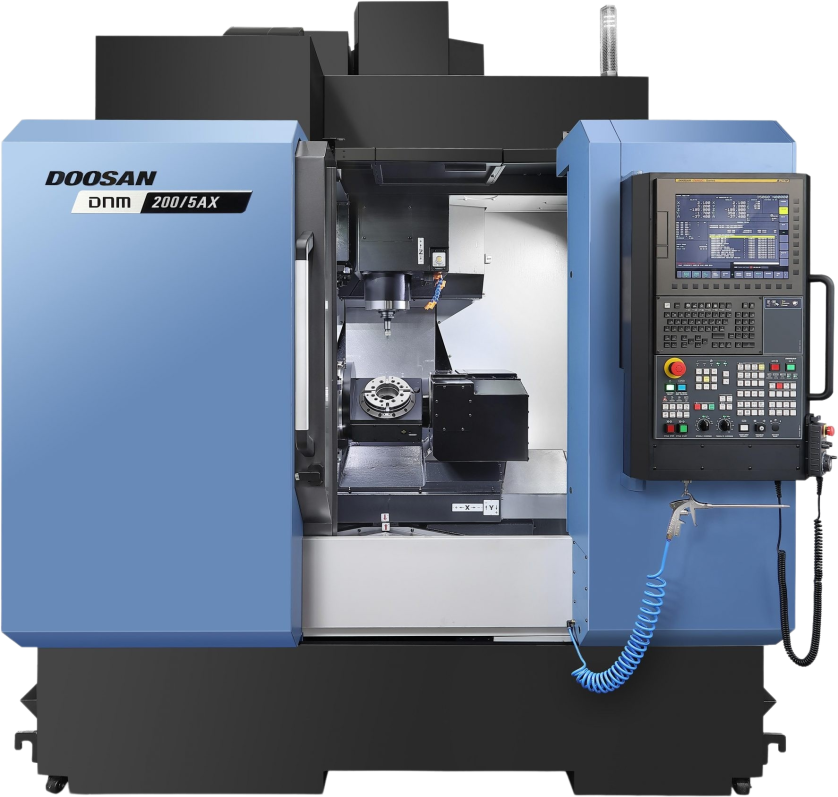

Doosan’s DNM range of 5-axis machines: DNM 200 5AX and DNM 350 5AX
Features
- 150 degree A-axis tilt (+30/-120 degrees)
- Powerful advanced spindles
- 3 + 2 and full simultaneous 5-axis machining
- Choice of controls – Heidenhain, Fanuc or Siemens
or copy link
Doosan’s DNM 5-axis machining centers (the DNM 200 5AX and DNM 350-5AX) allow precision manufacturers to machine parts to completion in a single set-up (3 + 2 or full simultaneous 5-axis machining).
Their versatility means they can be used for high-accuracy machining, heavy metal removal and fine finishing operations.
The machines can be supplied with either a Fanuc, Heidenhain or Siemens control, and have a choice of spindle speeds (12,000/20,000rpm).
Tool changer capacity can also be specified (30/40/60 position), and the machines’ 5-axis capability is delivered by a rotary tilting table – A-axis (tilt) is 150 degrees and C-axis (rotary) is 360 degrees.
Technical Specification
| X Axis Travel distance | 400mm |
|---|---|
| Y Axis Travel distance | 435 - 655mm |
| Z Axis Travel distance | 500mm |
| Max. Workpiece Diameter | 300 - 400mm |
| Max. Workpiece Height | 200 - 335mm |
| Max. Workpiece Weight | 40 - 250kg |
| X Axis Rapid Traverse | 36m/min |
| Y Axis Rapid Traverse | 36m/min |
| Z Axis Rapid Traverse | 30m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 117N·m |
| Rotary Table Diameter | 200 - 350mm |
| Max. Table Weight | 40 - 250kg |
| No. of tool station | 40 - 60 |
Series Dimensions
| Length | 2836 - 3209mm |
|---|---|
| Width | 2465 - 3150mm |
| Height | 3109 - 3300mm |
| Weight | 5500 - 8500kg |
Image representative of Series and may not be the exact model
The Doosan DNM 5AX Series is compatible with Fanuc, Siemens and Heidenhain.
