Doosan FM 5AX Series
The FM Linear series comprises 3-axis models (FM 400), and
5-axis models (FM 200/5AX and FM 350/5AX).
Features
- 3-axis and 5-axis models available
- High-speed spindles (12.6kW/40,000rpm)
- Linear scales
- Heidenhain Control
or copy link
The machines are fast and accurate and are equipped with high-speed spindles and linear axes driven by linear motors. The 5-axis models have direct-driven rotary axes.
The machine series was the winner of the 2015 international Red Dot award for product design.
Technical Specification
| X Axis Travel distance | 200mm |
|---|---|
| Y Axis Travel distance | 340mm |
| Z Axis Travel distance | 300mm |
| Max. Workpiece Diameter | 300mm |
| Max. Workpiece Height | 320mm |
| Max. Workpiece Weight | 15kg |
| X Axis Rapid Traverse | 40m/min |
| Y Axis Rapid Traverse | 40m/min |
| Z Axis Rapid Traverse | 36m/min |
| Max. Spindle Speed | 42000r/min |
| Max. Spindle Power | 12kW |
| Max. Spindle Torque | 6N·m |
| Rotary Table Diameter | 200mm |
| Max. Table Weight | 15kg |
| No. of tool station | 24 |
Series Dimensions
| Length | 2225mm |
|---|---|
| Width | 1972mm |
| Height | 2375mm |
| Weight | 7000kg |

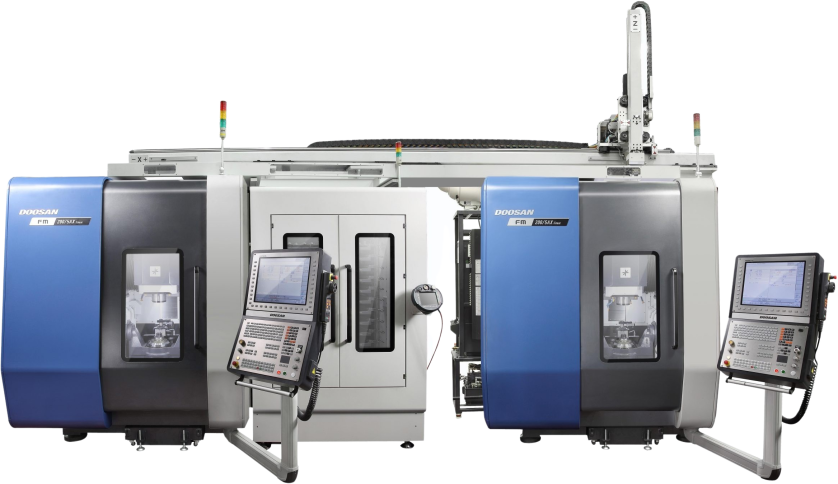

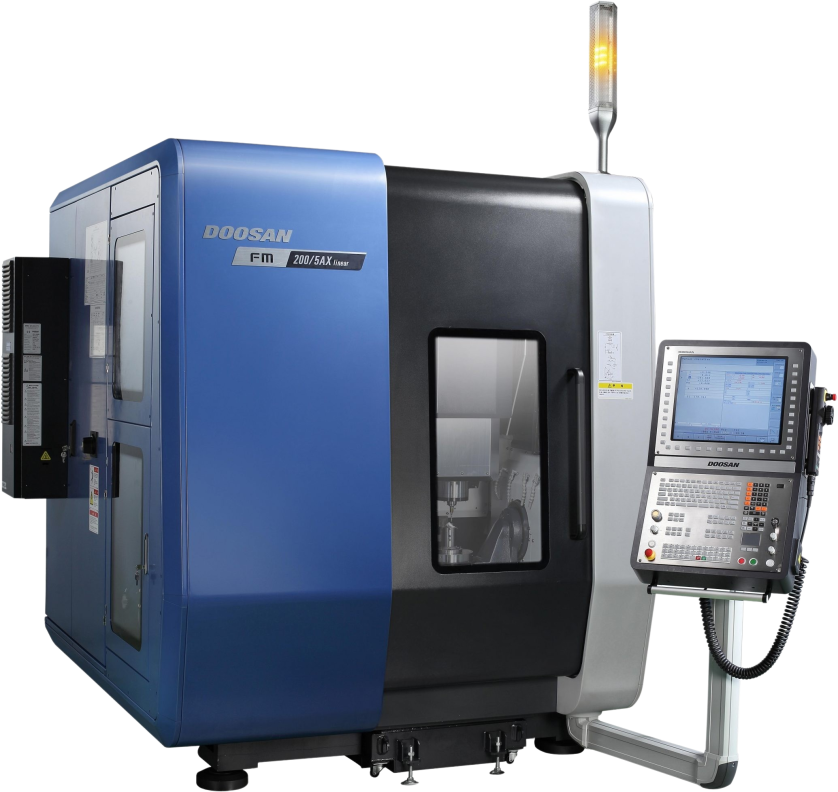

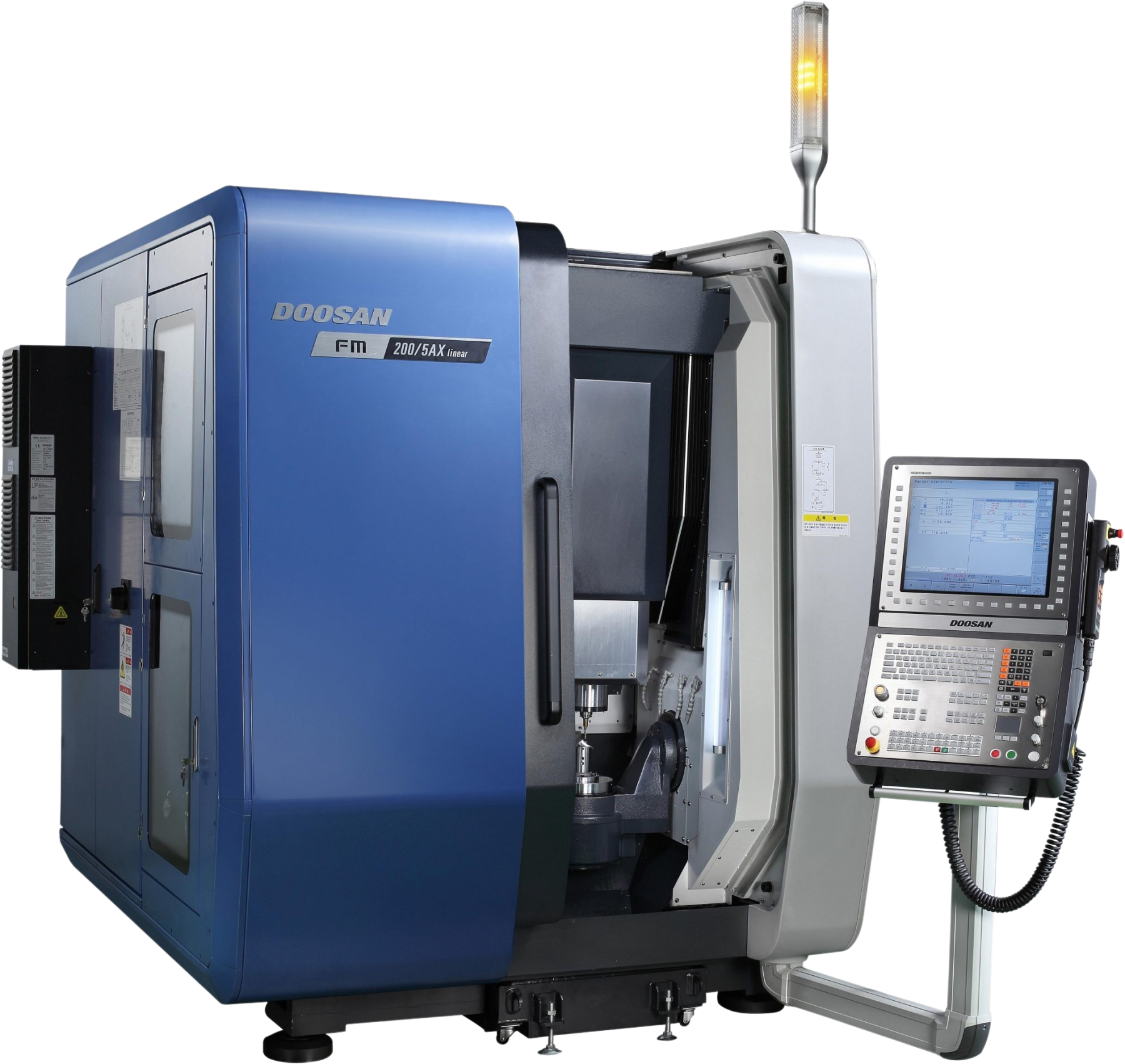

Image representative of Series and may not be the exact model
The Doosan FM 5AX Series is compatible with Fanuc, Siemens and Heidenhain.
