Doosan SVM Series
Doosan’s SVM series of vertical machining centers are ideal for light, high speed cutting
Features
- X-Axis Travel - 770mm
- Spindle Taper - 40
- Spindle RPM - 12,000
or copy link
Light, fast and with a large table capacity, the SVM series are ideal for aluminium die castings for the automotive and IT industries, and can easily handle machining for lighter steel parts too. If you’re looking for value and incredible performance, this could be the machining center series for you.
Technical Specification
| X Axis Travel distance | 770mm |
|---|---|
| Y Axis Travel distance | 410mm |
| Z Axis Travel distance | 510mm |
| X Axis Rapid Traverse | 36m/min |
| Y Axis Rapid Traverse | 36m/min |
| Z Axis Rapid Traverse | 36m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 95N·m |
| Table Length | 920mm |
| Table Width | 410mm |
| Max. Table Weight | 600kg |
| No. of tool station | 30 |
Series Dimensions
| Length | 2171mm |
|---|---|
| Width | 2250mm |
| Height | 2661mm |
| Weight | 3850kg |

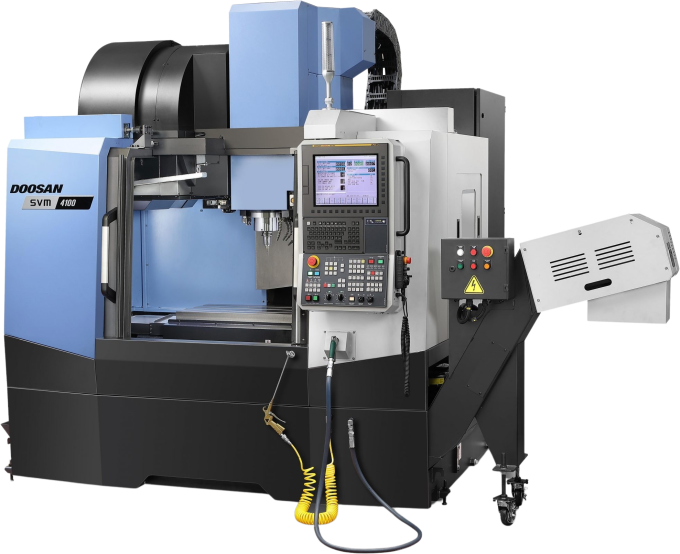

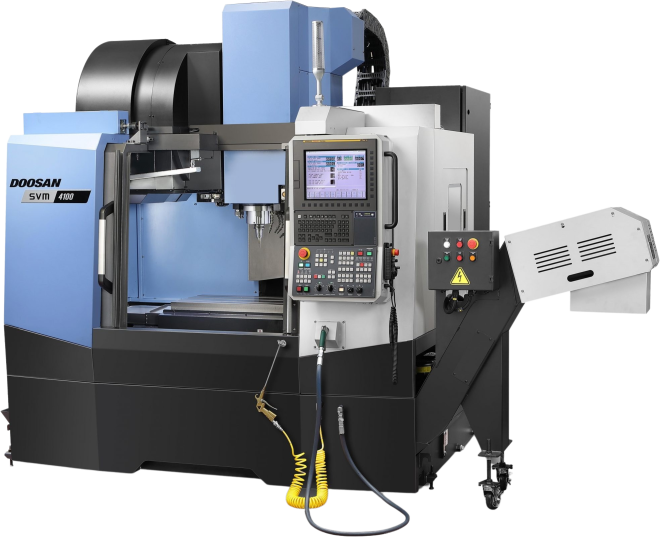

Image representative of Series and may not be the exact model
The Doosan SVM Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
