Doosan VC Series
DN Solutions’ (formerly Doosan) VC series of vertical machining centres come with built-in pallet changers for speed and efficiency.
Features
- X-Axis Travel - 520 - 762mm
- Spindle taper - 40
- Spindle RPM - 10,000 - 12,000
or copy link
With a servo-driven pallet changer, automatic tool magazine and plenty of tool storage, the VC series gives you unbeatable productivity, requiring minimal operator input. These vertical machining centers were designed primarily for the automotive industry, but are hugely popular across a wide range of sectors.
Technical Specification
| X Axis Travel distance | 520 - 762mm |
|---|---|
| Y Axis Travel distance | 360 - 516mm |
| Z Axis Travel distance | 465 - 570mm |
| X Axis Rapid Traverse | 40 - 48m/min |
| Y Axis Rapid Traverse | 40 - 48m/min |
| Z Axis Rapid Traverse | 32 - 48m/min |
| Max. Spindle Speed | 10000 - 12000r/min |
| Max. Spindle Power | 18kW |
| Max. Spindle Torque | 95 - 117N·m |
| Table Length | 650 - 860mm |
| Table Width | 375 - 570mm |
| Max. Table Weight | 200 - 350kg |
| No. of tool station | 20 - 40 |
Series Dimensions
| Length | 2860 - 3330mm |
|---|---|
| Width | 1900 - 2580mm |
| Height | 2657 - 3130mm |
| Weight | 5400 - 9200kg |

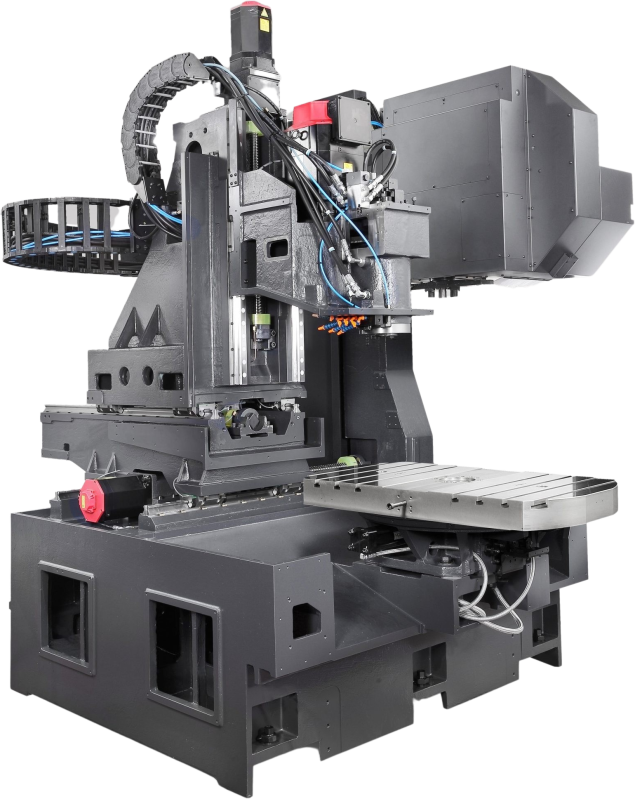

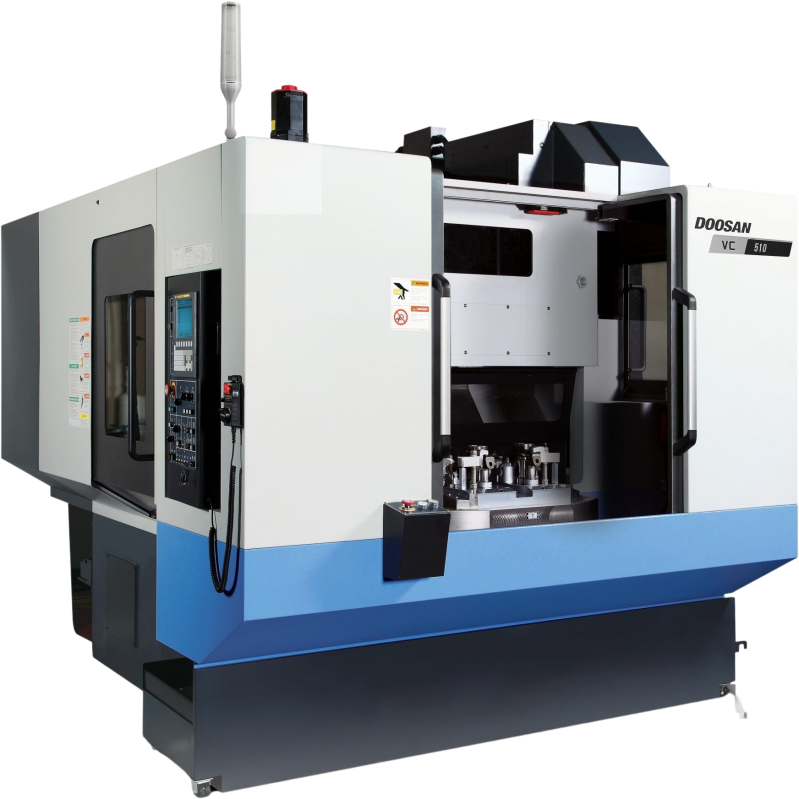

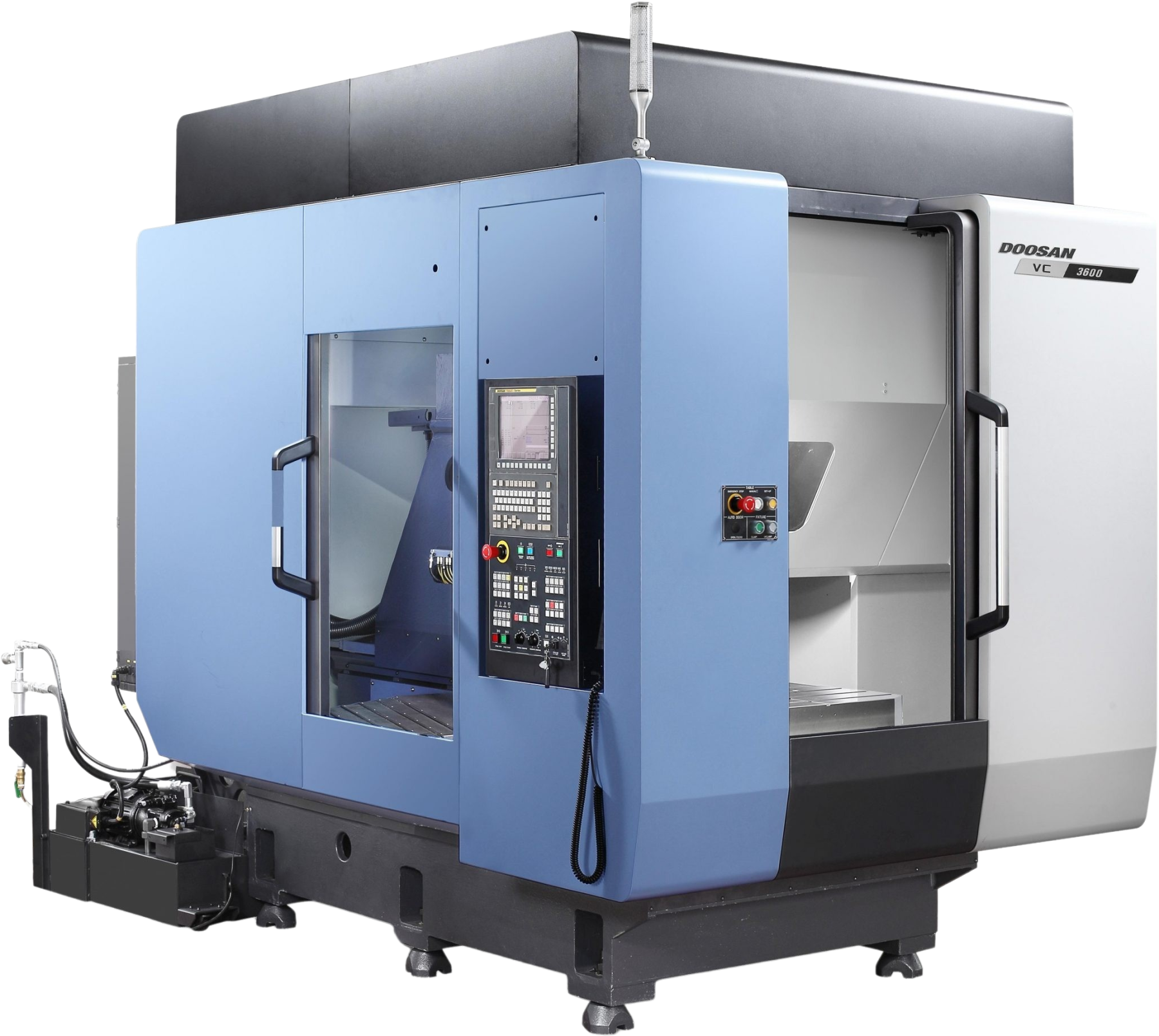

Image representative of Series and may not be the exact model
The Doosan VC Series is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
