Doosan VCF Series
Features
- X-Axis Travel - 3,000mm
- Spindle taper - 40
- Spindle RPM - 12,000 - 18,000
or copy link
Technical Specification
| X Axis Travel distance | 2000 - 5000mm |
|---|---|
| Y Axis Travel distance | 550 - 850mm |
| Z Axis Travel distance | 510 - 800mm |
| X Axis Rapid Traverse | 30 - 42m/min |
| Y Axis Rapid Traverse | 36 - 42m/min |
| Z Axis Rapid Traverse | 40 - 46m/min |
| Max. Spindle Speed | 12000r/min |
| Max. Spindle Power | 18 - 22kW |
| Max. Spindle Torque | 117 - 204N·m |
| Table Length | 2500 - 5600mm |
| Table Width | 550 - 3580mm |
| Max. Table Weight | 2000 - 6000kg |
| No. of tool station | 35 - 60 |
Series Dimensions
| Length | 3795 - 8410mm |
|---|---|
| Width | 2950 - 5440mm |
| Height | 3030 - 3420mm |
| Weight | 12000 - 24000kg |

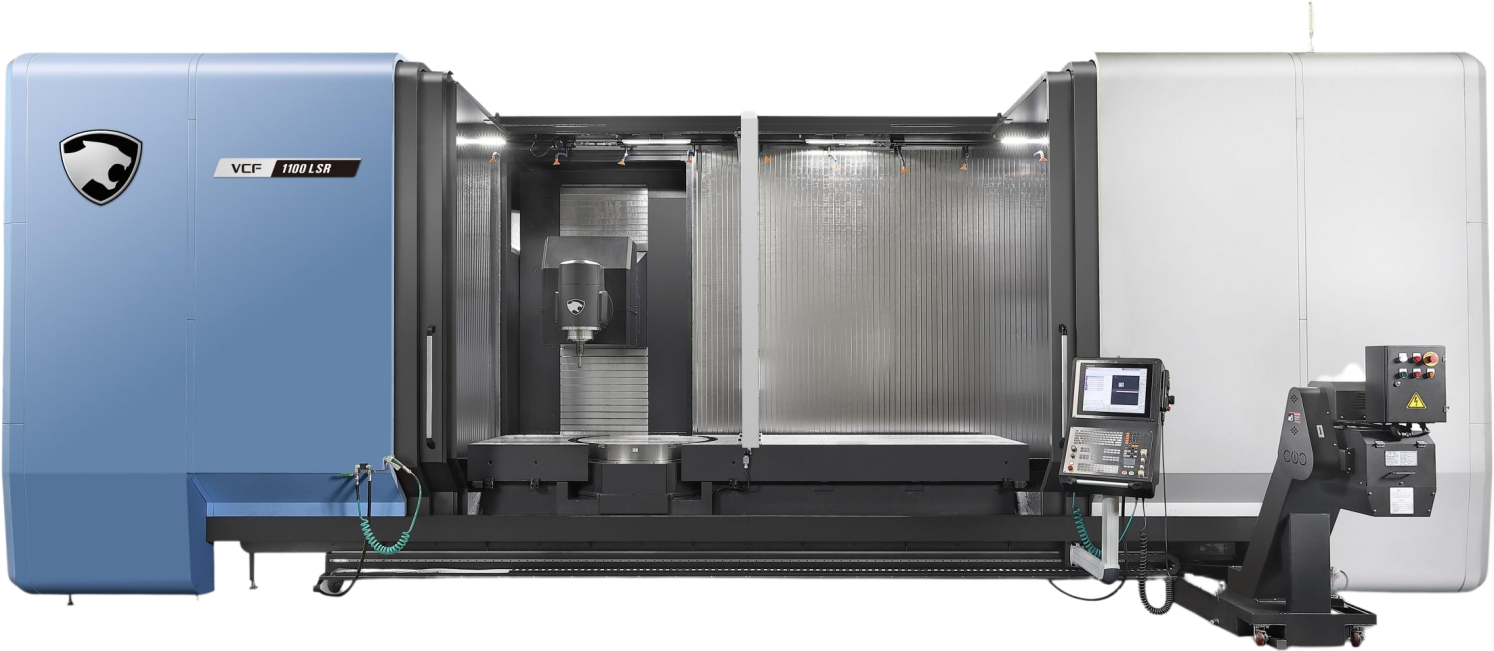

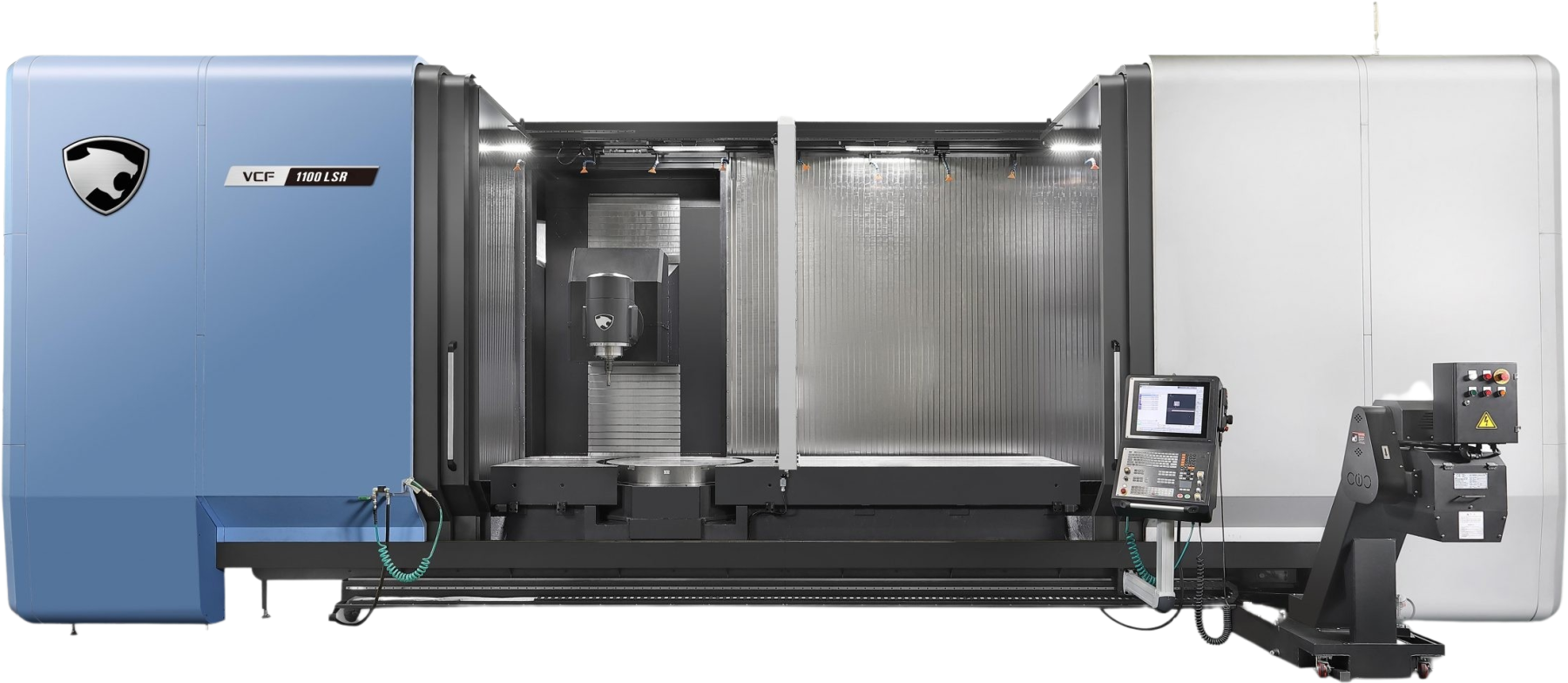

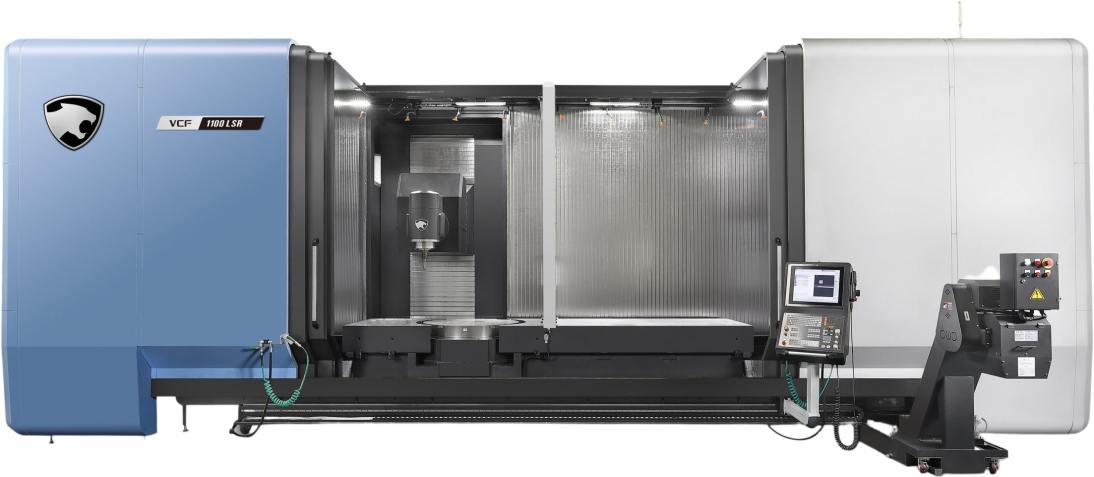

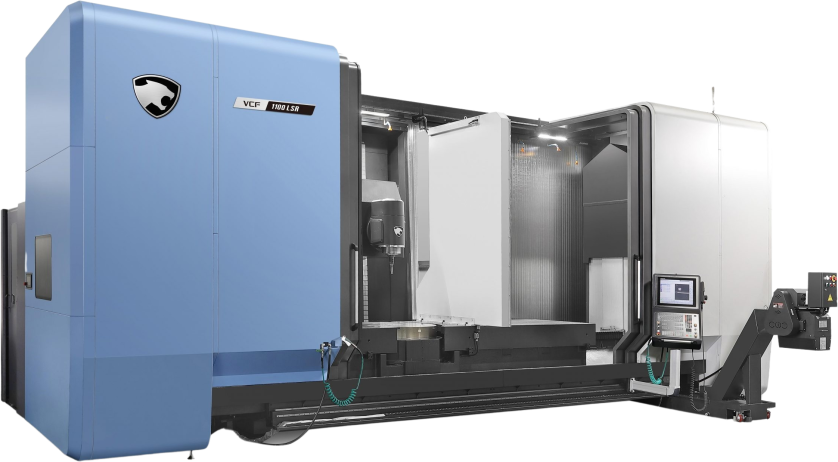

Image representative of Series and may not be the exact model
The Doosan VCF Series is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about this series
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Two new machines. Two turnkey solutions.

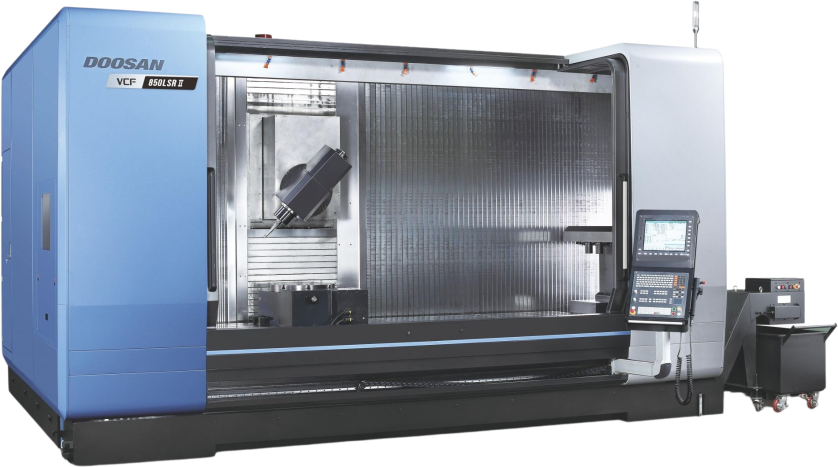

Doosan VCF 850L II Vertical Machining Centre
NuMachine Ltd in Hereford bought two 5-axis machining centres, a Doosan VCF 850LSR and a Doosan DVF 6500 - both featuring a tailored ‘turnkey’ work holding solution. The new machines produce cast aluminium automotive components for Sarginsons Industries of Coventry, whose existing supplier was failing to meet stringent quality and lead time constraints.
Related Series from Vertical Machining Centres
- X-Axis Travel - 520 - 2,160mm
- Spindle taper - 40, 50
- Spindle RPM - 8,000 - 15,000
- Rapid rates: 42m/min
- Spindle: Built-in 37kW/15,000rpm (214N-m)
- Thermal compensation systems
- Box guide-way, heavy-duty design and build
- BT 40 or BT 50 spindle/tooling configuration
- Gear-box driven & built-in spindle options
- Fanuc or Siemens control
