Doosan BM 1530M
DN Solutions (formerly Doosan) BM 1530M Double Column Fixed Cross Rail Machining Centre
or copy link
Technical Specification
| Distance between Columns | 1700 mm |
|---|---|
| X Axis Travel distance | 3000 mm |
| Y Axis Travel distance | 1550 mm |
| Z Axis Travel distance | 800 mm |
| Max. Workpiece Height | 1000 mm |
| Max. Workpiece Weight | 8000 kg |
| X Axis Rapid Traverse | 16 m/min |
| Y Axis Rapid Traverse | 16 m/min |
| Z Axis Rapid Traverse | 16 m/min |
| Max. Spindle Speed | 12000 r/min |
| Max. Spindle Power | 30 kW |
| Max. Spindle Torque | 450 N·m |
| Table Length | 3000 mm |
| Table Width | 1350 mm |
| Max. Table Weight | 8000 kg |
Product Dimensions
| Length | 5542mm |
|---|---|
| Width | 10945mm |
| Height | 4770mm |
| Weight | 29000kg |

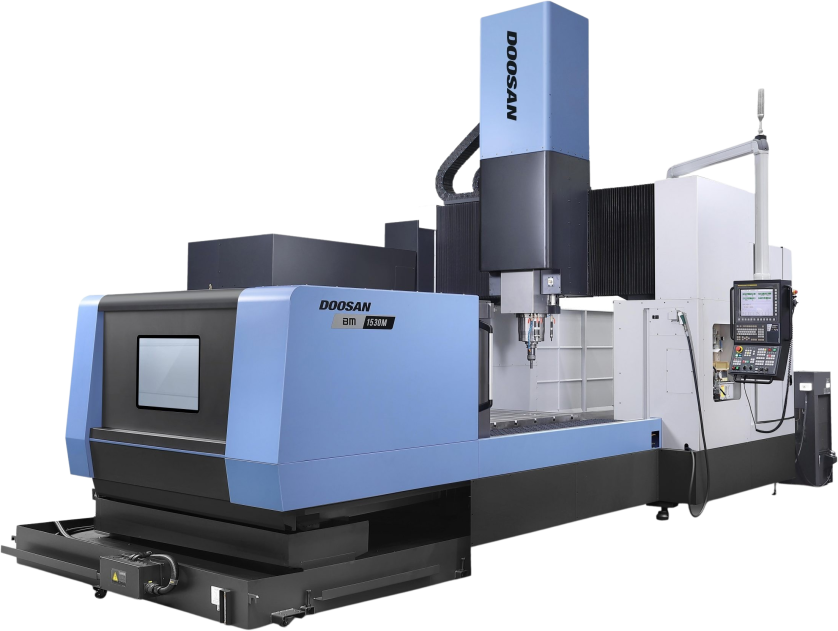

Image representative of Series and may not be the exact model
The Doosan BM 1530M is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
