Doosan DNM 4500
DN Solutions (formerly Doosan) DNM 4500 Vertical Machining Centre
or copy link
Technical Specification
| X Axis Travel distance | 800 mm |
|---|---|
| Y Axis Travel distance | 450 mm |
| Z Axis Travel distance | 510 mm |
| X Axis Rapid Traverse | 36 m/min |
| Y Axis Rapid Traverse | 36 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| Max. Spindle Speed | 12000 r/min |
| Max. Spindle Power | 18.5 kW |
| Max. Spindle Torque | 117.8 N·m |
| Table Length | 1000 mm |
| Table Width | 450 mm |
| Max. Table Weight | 600 kg |
| No. of tool station | 60 |
Product Dimensions
| Length | 2160mm |
|---|---|
| Width | 2465mm |
| Height | 2985mm |
| Weight | 4500kg |

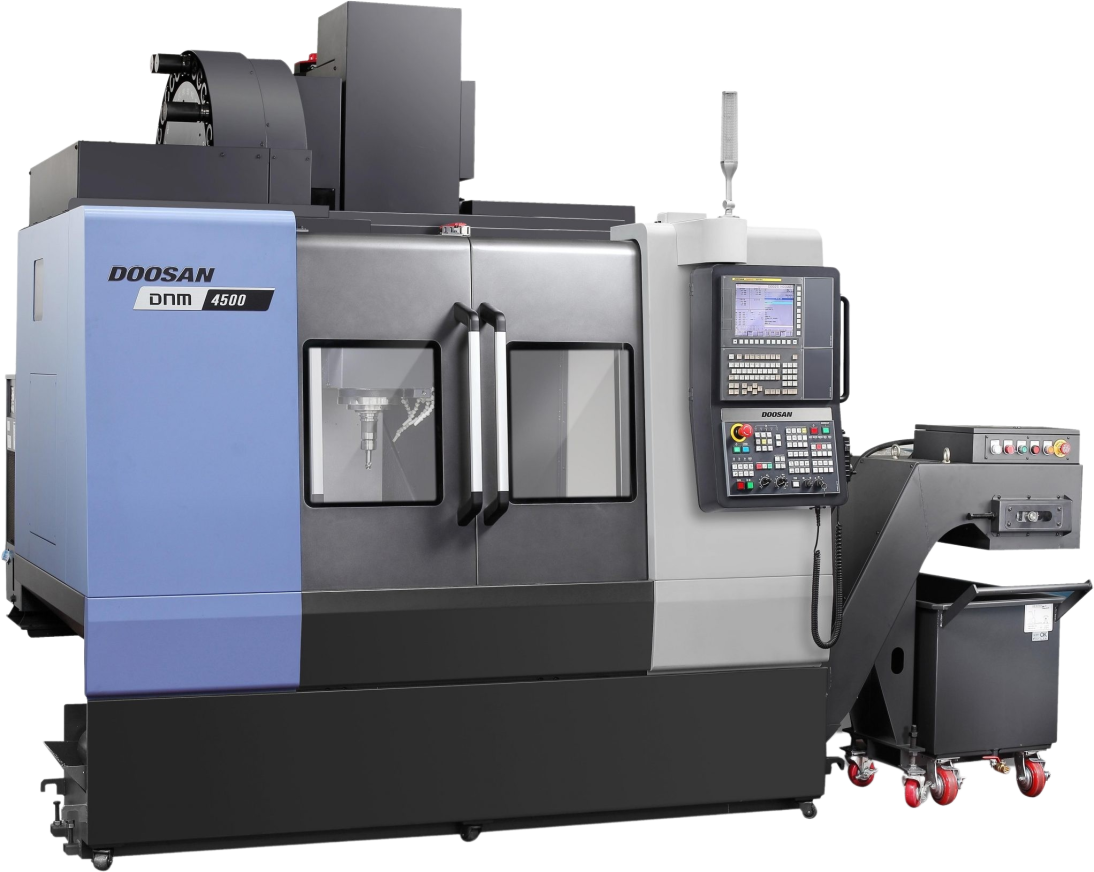

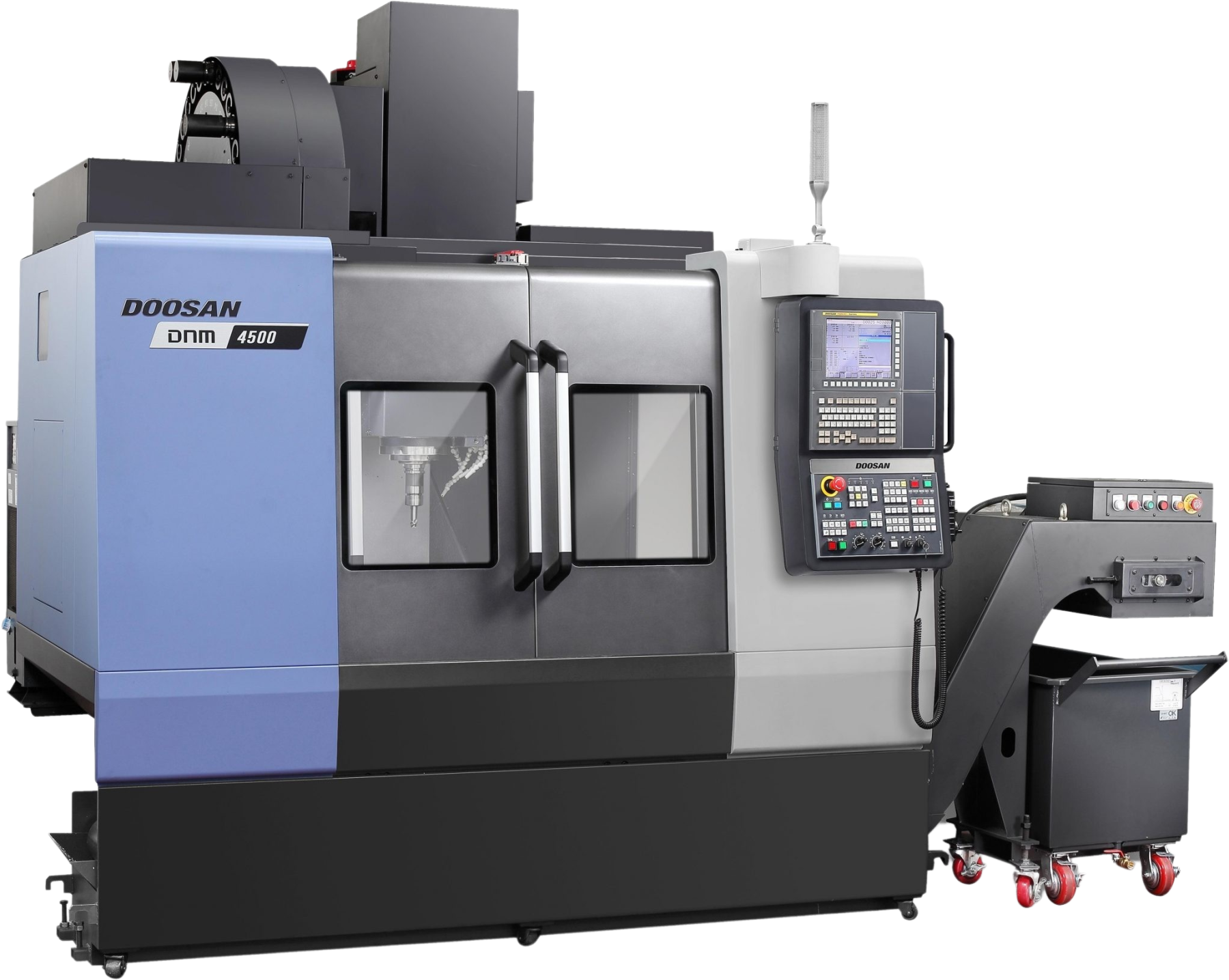

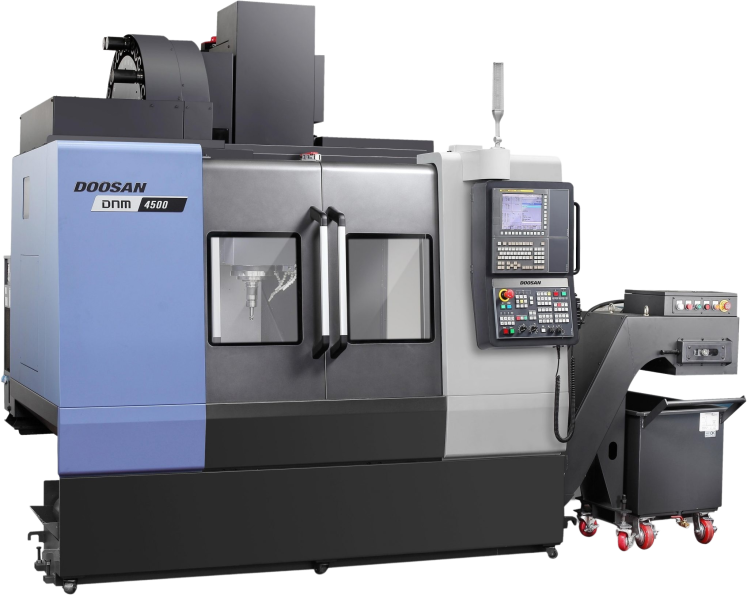

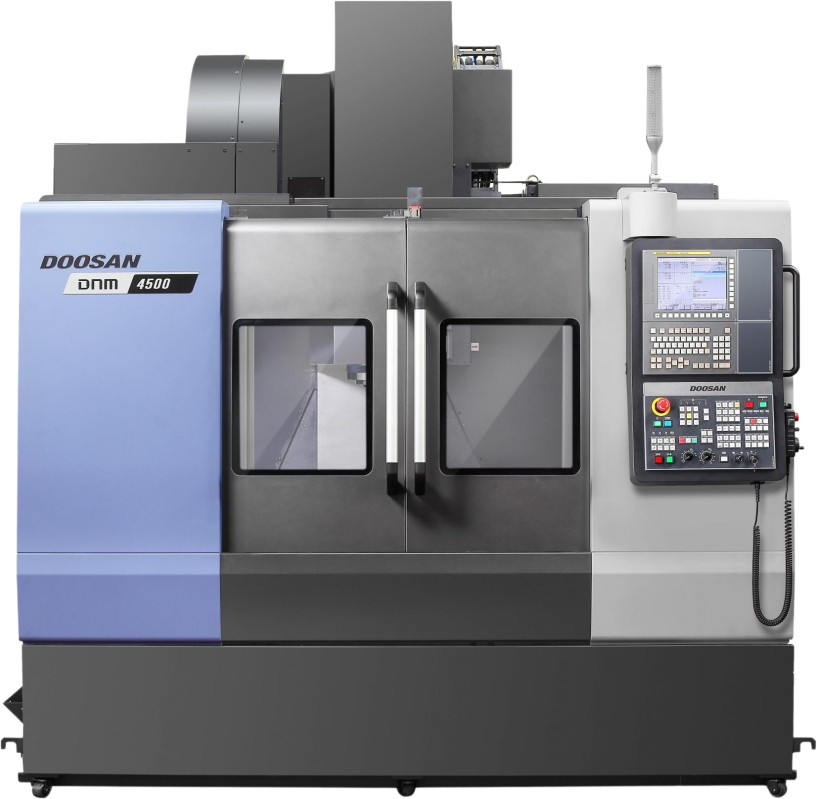

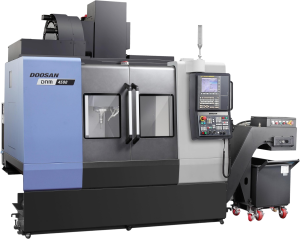

Image representative of Series and may not be the exact model
The Doosan DNM 4500 is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan DNM 4500
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Racing certainties.
Doosan DNM 4500 Vertical Machining Centre
SRD Engineering, a company with established relationships with motorsport clients, has invested in three Doosan machining centres designed to improve productivity and efficiency levels. The two DNM 4500 3-axis vertical machining centres and a DVF 5000 5-axis machining centre produce high-precision components for F1 customers with virtually non-existent lead times.
