Doosan DNM 650/50 II
DN Solutions (formerly Doosan) DNM 650/50 II Vertical Machining Centre
or copy link
Technical Specification
| X Axis Travel distance | 1270 mm |
|---|---|
| Y Axis Travel distance | 670 mm |
| Z Axis Travel distance | 625 mm |
| X Axis Rapid Traverse | 36 m/min |
| Y Axis Rapid Traverse | 36 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| Max. Spindle Speed | 12000 r/min |
| Max. Spindle Power | 22 kW |
| Max. Spindle Torque | 353.2 N·m |
| Table Length | 1300 mm |
| Table Width | 670 mm |
| Max. Table Weight | 1000 kg |
| No. of tool station | 24 |
Product Dimensions
| Length | 2740mm |
|---|---|
| Width | 3350mm |
| Height | 3250mm |
| Weight | 8500kg |

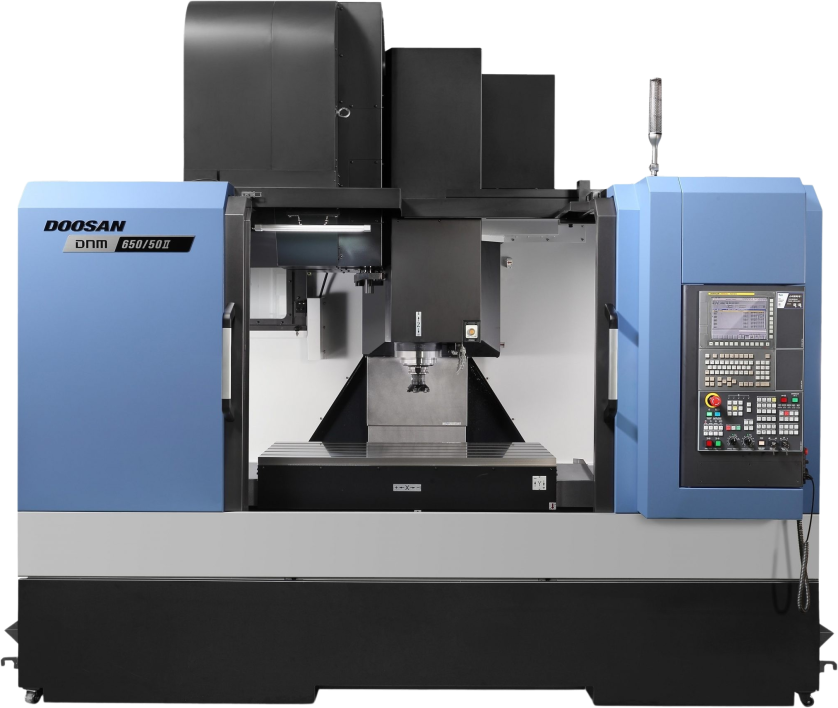

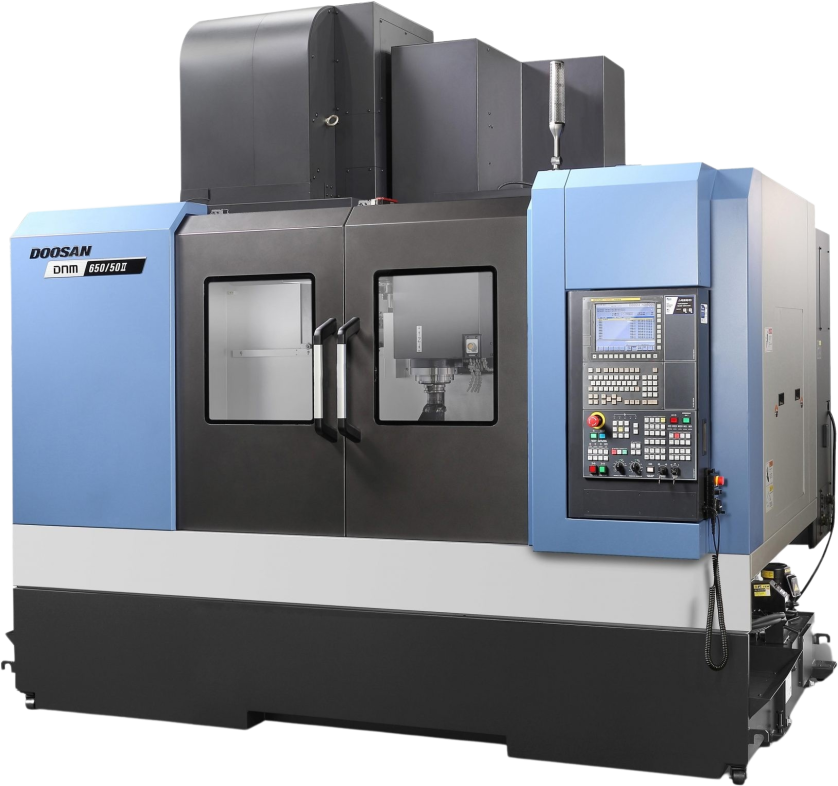

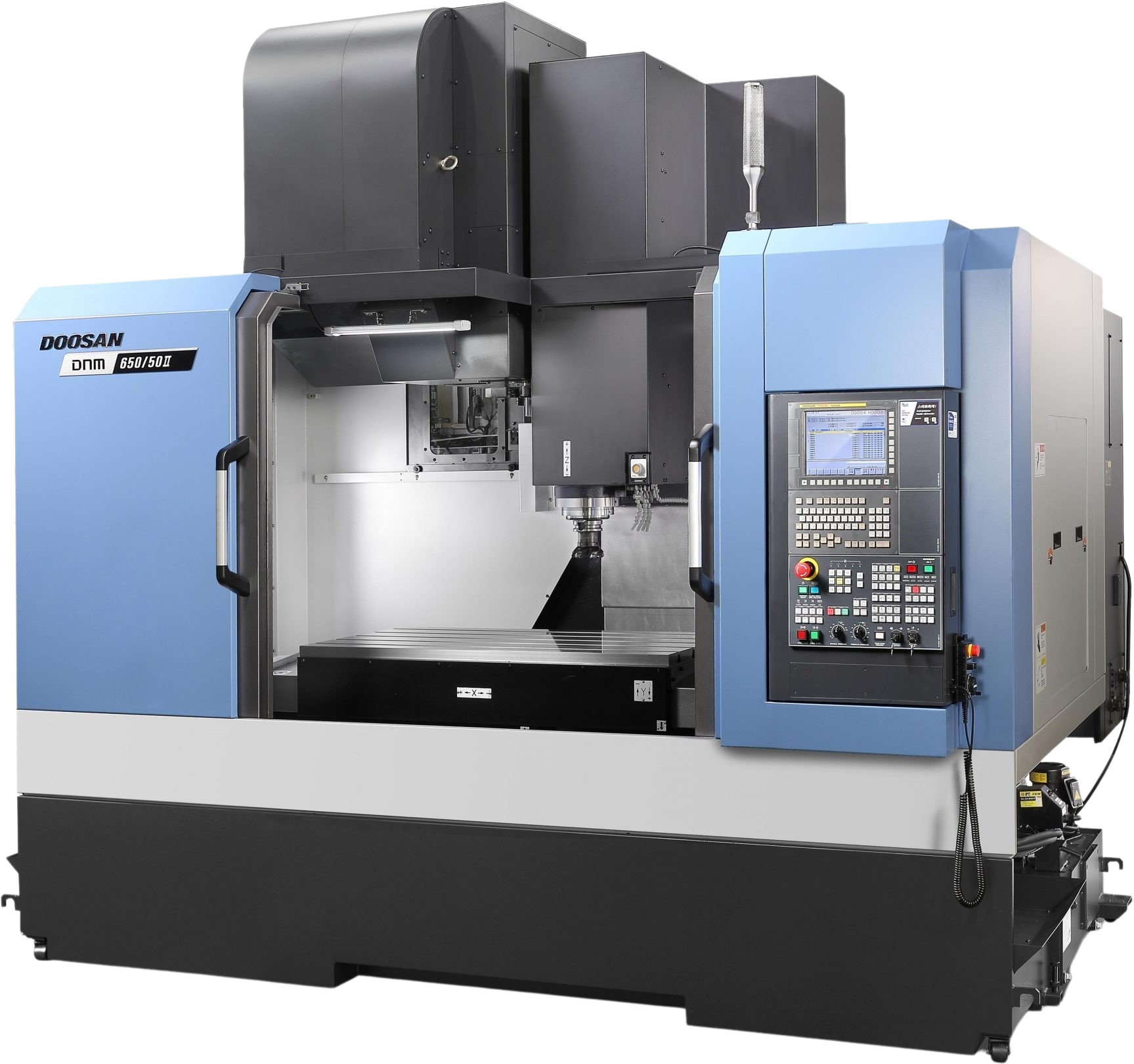

Image representative of Series and may not be the exact model
The Doosan DNM 650/50 II is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan DNM 650/50 II
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
In ‘fine’ fettle!
Doosan DNM 650/50 II Vertical Machining Centre
ADM Fine Machining, based in Littlehampton, invested in large-capacity Doosan DNM 650 II vertical machining centre that joins five lathes & five vertical machining centres previously supplied by Mills CNC. The Doosan machines are used to machine high-precision, complex components for a growing number of aerospace, motorsport, medical, defence & petrochemical sector customers.
