DVF 5000 (Second Generation)
The DN Solutions (formerly Doosan) DVF 5000 second-generation simultaneous 5-axis machining centres deliver increased processing speeds, higher accuracies and improved machining flexibility.
or copy link
Technical Specification
| X Axis Travel distance | 650 mm |
|---|---|
| Y Axis Travel distance | 520 mm |
| Z Axis Travel distance | 480 mm |
| Max. Workpiece Diameter | 600 mm |
| Max. Workpiece Height | 500 mm |
| Max. Workpiece Weight | 400 kg |
| X Axis Rapid Traverse | 42 m/min |
| Y Axis Rapid Traverse | 42 m/min |
| Z Axis Rapid Traverse | 42 m/min |
| Max. Spindle Speed | 20000 r/min |
| Max. Spindle Power | 37 kW |
| Max. Spindle Torque | 230 N·m |
| Rotary Table Diameter | 630 mm |
| Max. Table Weight | 400 kg |
| No. of tool station | 120 |
Product Dimensions
| Length | 2795mm |
|---|---|
| Width | 2347mm |
| Height | 2867mm |
| Weight | 8000kg |

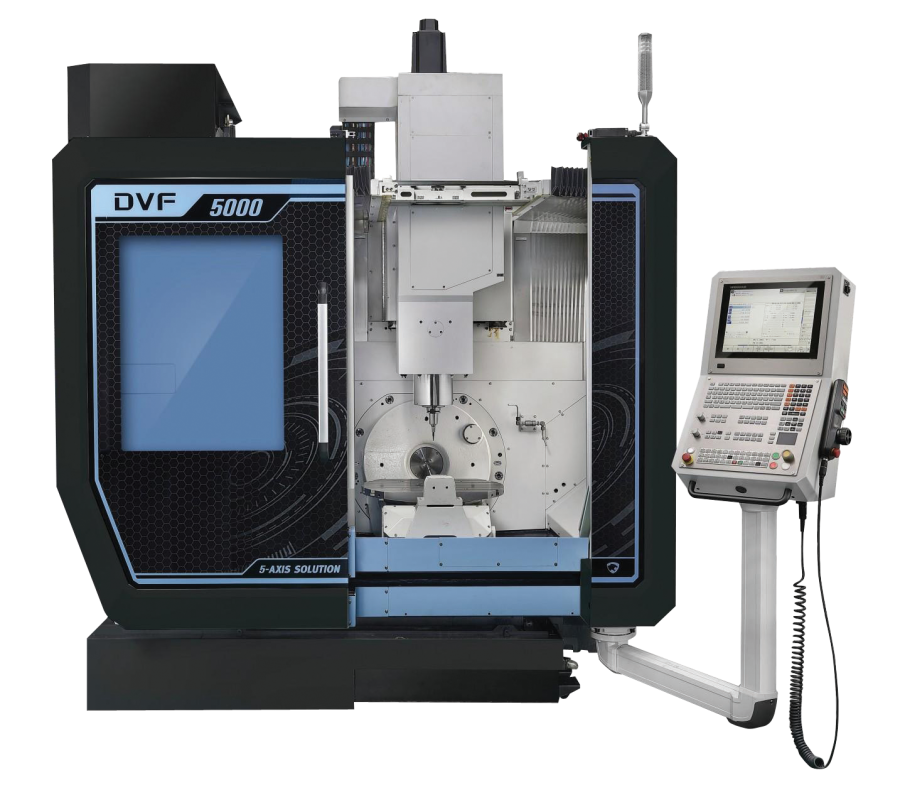

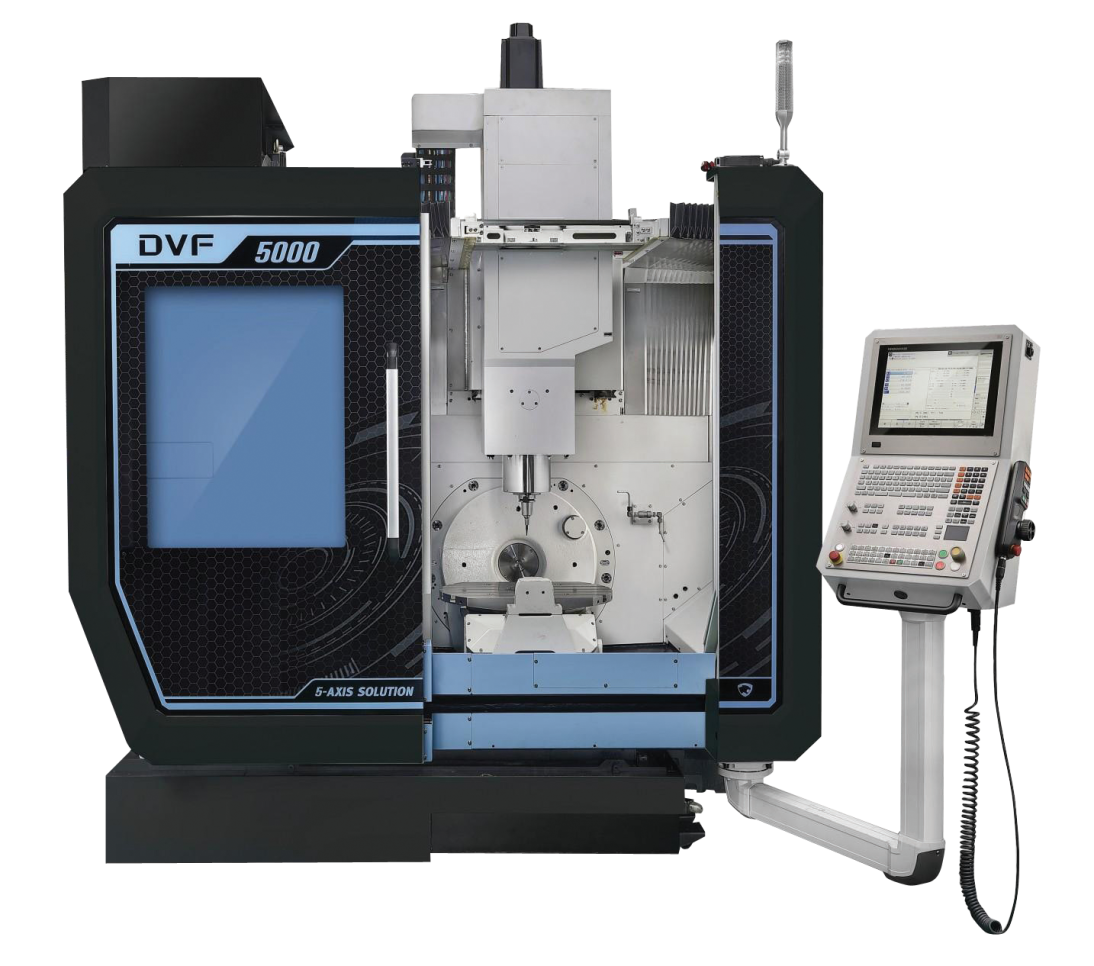

Image representative of Series and may not be the exact model
The DVF 5000 (Second Generation) is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
