Doosan Lynx 2100 LSYB

DN Solutions (formerly Doosan) Lynx 2100 LSYB Horizontal Single Turret Lathe

Share this product

or copy link

Technical Specification

Chuck size 8 inch
Bar Capacity 65 mm
Max. Turning Diameter 300 mm
Max. Turning Length 510 mm
X Axis Rapid Traverse 30 m/min
Z Axis Rapid Traverse 36 m/min
X Axis Travel distance 205 mm
Y Axis Travel distance 105 mm
Z Axis Travel distance 560 mm
Max. Spindle Speed 4500 r/min
Max. Spindle Power 15 kW
Max. Spindle Torque 169 N·m
No. of tool station 12
Rotary Tool r/min 6000 r/min

Product Dimensions

Length 2880mm
Width 1711mm
Height 1921mm
Weight 4200kg

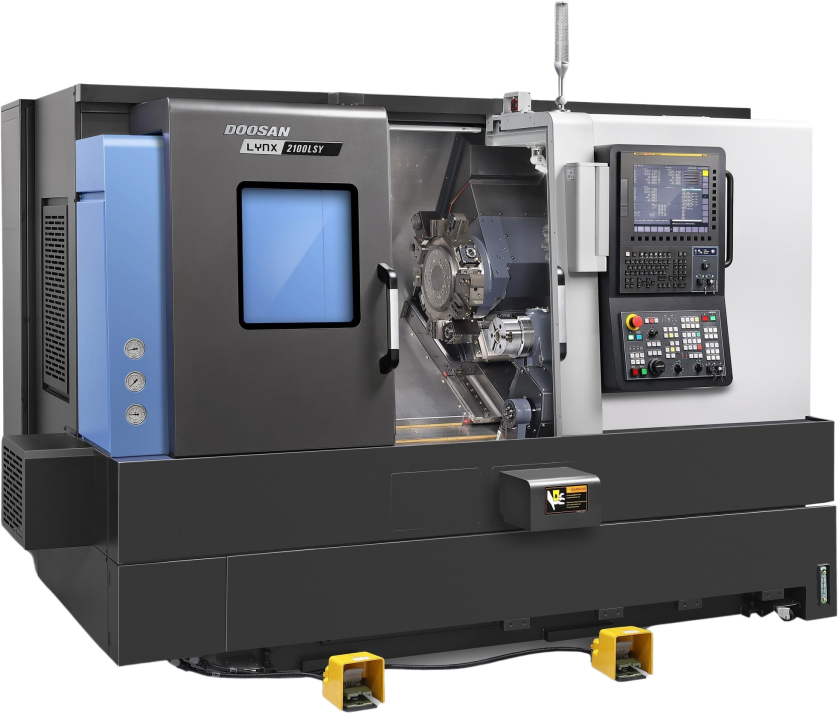

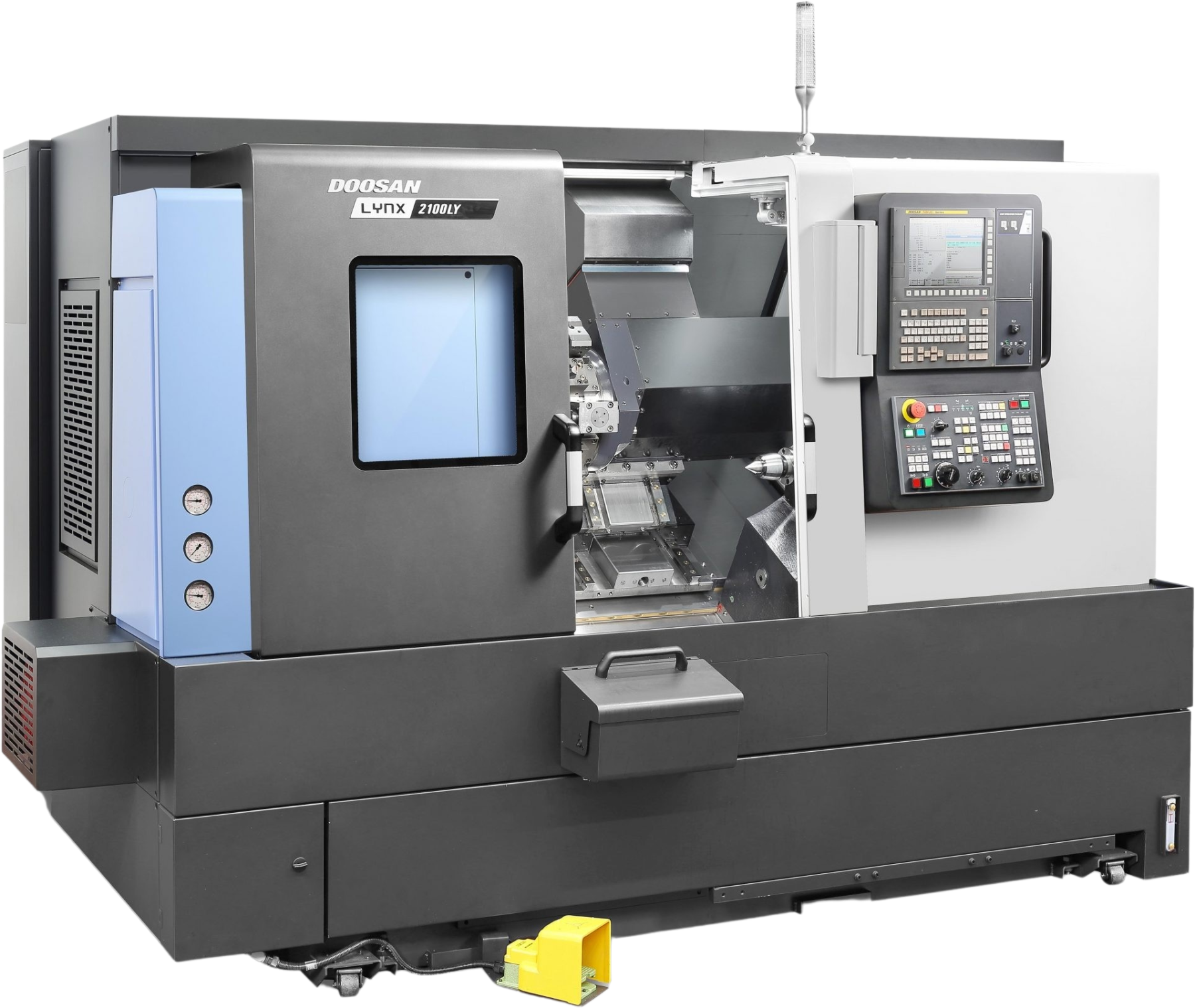

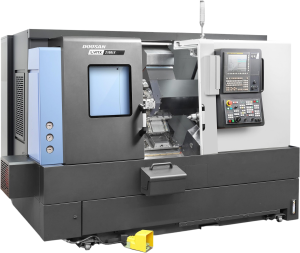

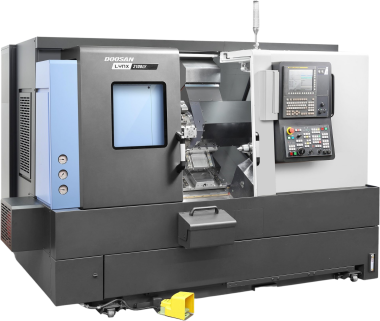

Image representative of Series and may not be the exact model

The Doosan Lynx 2100 LSYB is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine

Talk to Mills about the Doosan Lynx 2100 LSYB

Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.

"*" indicates required fields

Related Case Studies

Operator at the controls of a Lynx 2100LSYB at Herriott Precision

Starting as you mean to go on!

Lynx 2100LSYB Horizontal Single Turret Lathe

Herriott Precision acquires its first machine tool through the SMART Options machine tool rental scheme, improving their machining capacity and capabilities without being tied to a long-term finance agreement.

New machine shop means business!

Doosan Lynx 2100 LSYB Horizontal Single Turret Lathe

When electrical discharge machining (EDM) specialist Erodatools Ltd, operating in the mining and rail industries, created its in-house CNC machine shop it invested in a Doosan Lynx 2100 LSYB Horizontal Single Turret Lathe with state-of-the-art turning & milling capabilities from Mills CNC.

Fit for the future.

Doosan Lynx 2100 LSYB Horizontal Single Turret Lathe

Somerset based Watson Gym Equipment, manufacturer of personal training gym equipment invested in two Doosan turning centres and a Cobot. The 2100LSYB horizontal single turret lathe has been used to machine their Pro Olympic weight plates & dumbbell handles from marine grade stainless steel, and aided by the Cobot has helped production capabilities increase significantly.
