Doosan Mynx 5400 II
DN Solutions (formerly Doosan) Mynx 5400 II Vertical Machining Centre
or copy link
Technical Specification
| X Axis Travel distance | 1020 mm |
|---|---|
| Y Axis Travel distance | 550 mm |
| Z Axis Travel distance | 530 mm |
| X Axis Rapid Traverse | 30 m/min |
| Y Axis Rapid Traverse | 30 m/min |
| Z Axis Rapid Traverse | 24 m/min |
| Max. Spindle Speed | 12000 r/min |
| Max. Spindle Power | 15.6 kW |
| Max. Spindle Torque | 286.5 N·m |
| Table Length | 1200 mm |
| Table Width | 540 mm |
| Max. Table Weight | 1000 kg |
| No. of tool station | 40 |
Product Dimensions
| Length | 2467mm |
|---|---|
| Width | 3350mm |
| Height | 2800mm |
| Weight | 7000kg |

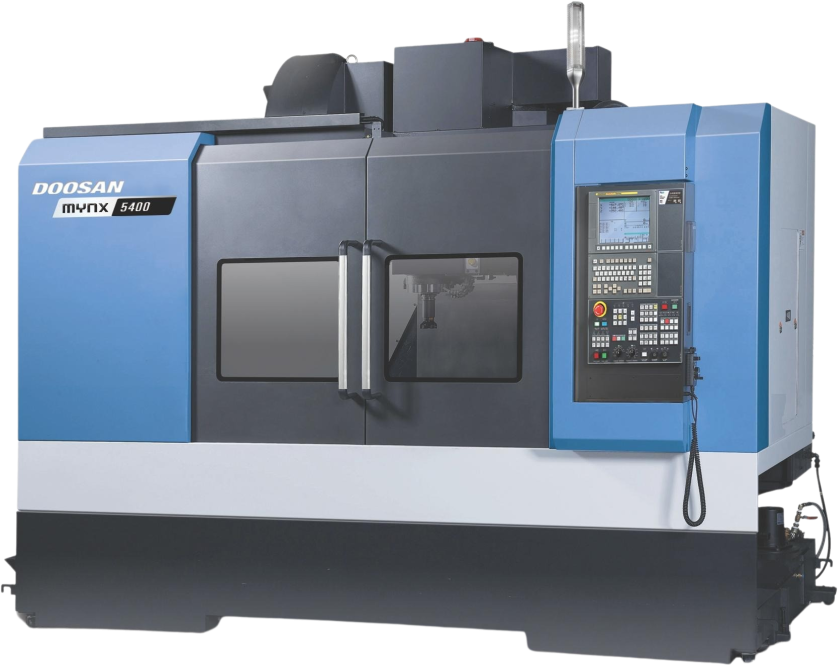

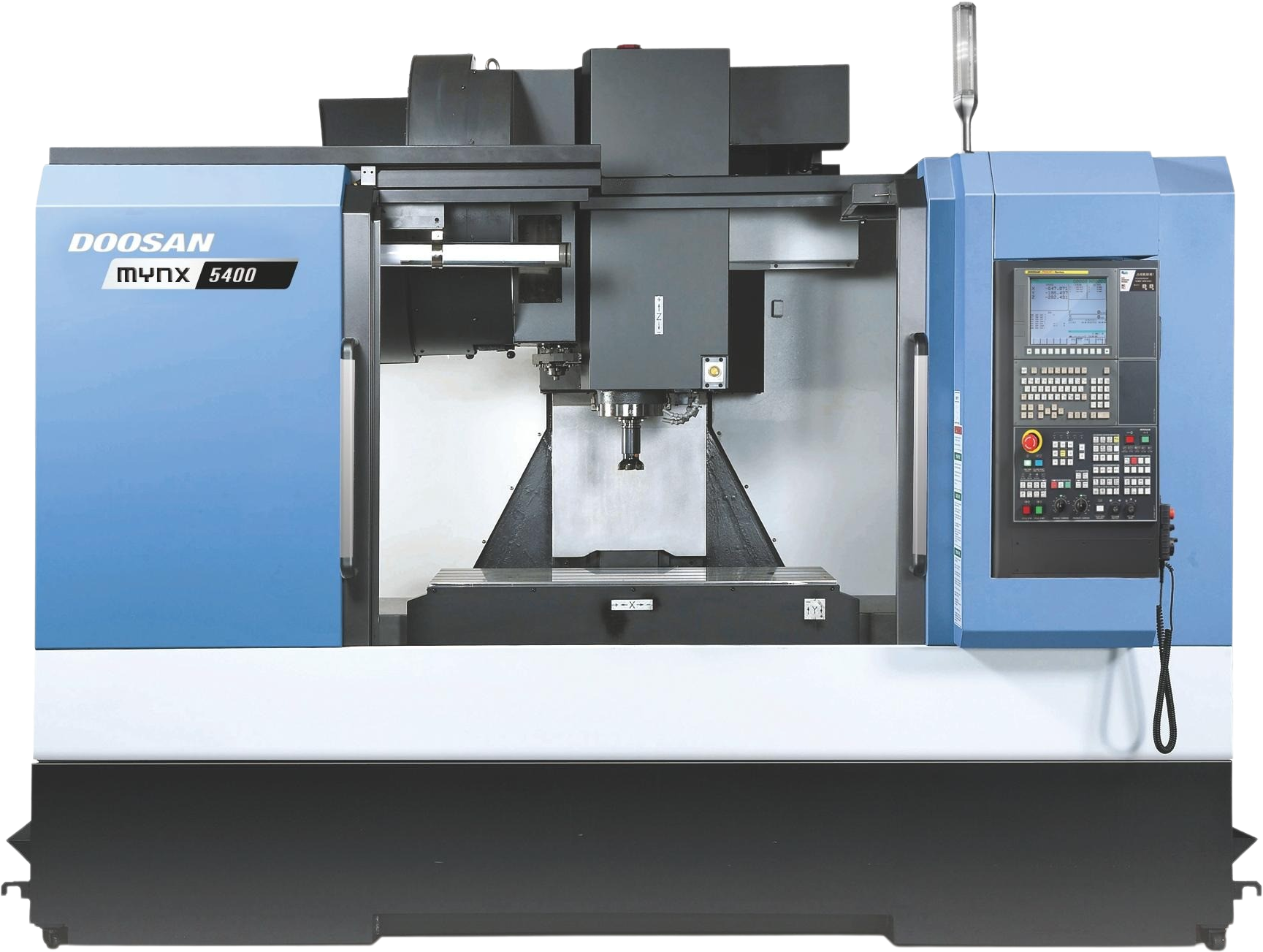

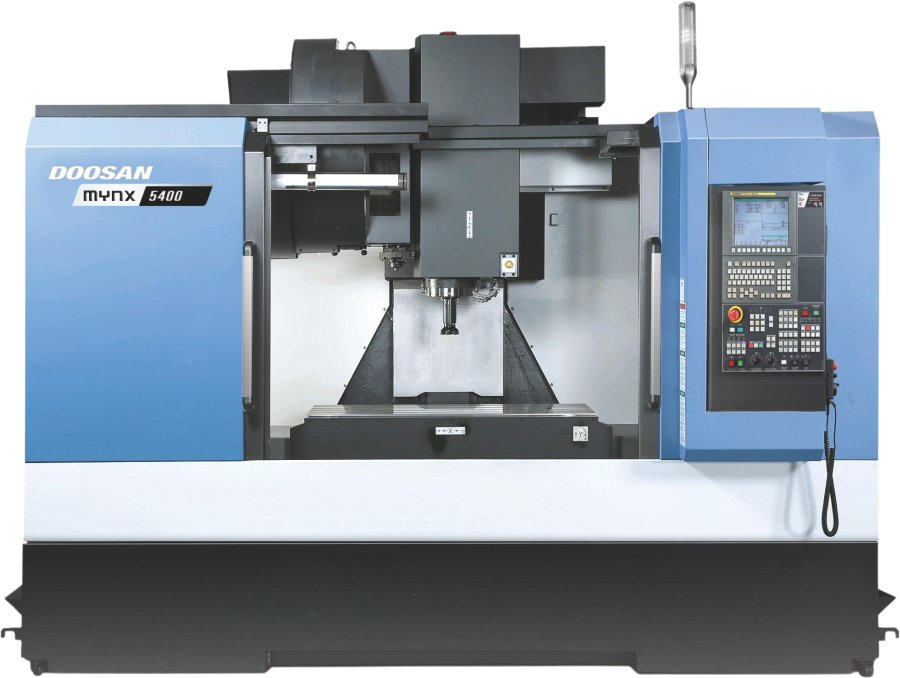

Image representative of Series and may not be the exact model
The Doosan Mynx 5400 II is compatible with Fanuc, Siemens and Heidenhain.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Mynx 5400 II
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Rock solid investment in Doosan machines.

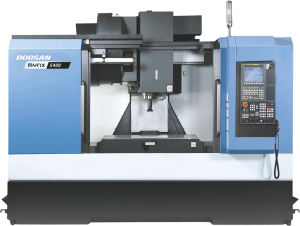

Doosan Mynx 5400 II Vertical Machining Centre
Foundation tools specialist PRO DIG Ltd has invested in two heavy-duty, box guideway Doosan Mynx 5400 vertical machining centres which were installed at their manufacturing facility in St. Neots, Cambridgeshire. The Mynx machines were supplied with 4th-axis units for additional productivity, enabling PRO DIG to reduce part set-up and cycle times.
