Doosan NHM 5000
or copy link
Technical Specification
| X Axis Travel distance | 800 mm |
|---|---|
| Y Axis Travel distance | 700 mm |
| Z Axis Travel distance | 850 mm |
| Max. Workpiece Diameter | 850 mm |
| Max. Workpiece Height | 1100 mm |
| Max. Workpiece Weight | 800 kg |
| X Axis Rapid Traverse | 30 m/min |
| Y Axis Rapid Traverse | 30 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| Max. Spindle Speed | 6000 r/min |
| Max. Spindle Power | 25 kW |
| Max. Spindle Torque | 1034 N·m |
| Pallet Size | 500 mm |
| Max. Table Weight | 800 kg |
| No. of tool station | 376 |
Product Dimensions
| Length | 6055mm |
|---|---|
| Width | 3670mm |
| Height | 3330mm |
| Weight | 18500kg |

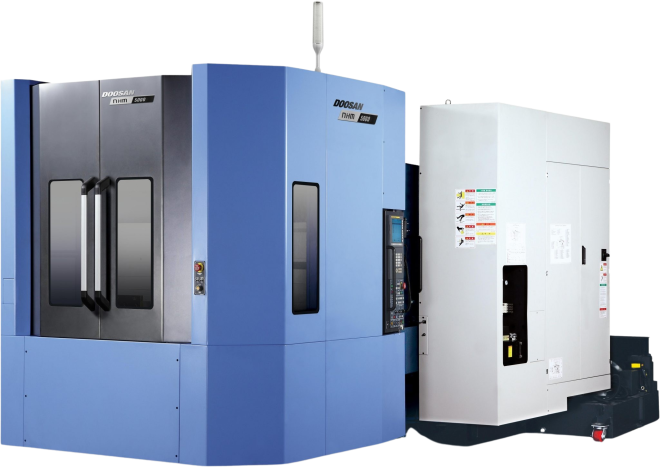

Image representative of Series and may not be the exact model
The Doosan NHM 5000 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
