Doosan NHP 5000
or copy link
Technical Specification
| X Axis Travel distance | 730 mm |
|---|---|
| Y Axis Travel distance | 730 mm |
| Z Axis Travel distance | 880 mm |
| Max. Workpiece Diameter | 800 mm |
| Max. Workpiece Height | 1000 mm |
| Max. Workpiece Weight | 500 kg |
| X Axis Rapid Traverse | 60 m/min |
| Y Axis Rapid Traverse | 60 m/min |
| Z Axis Rapid Traverse | 60 m/min |
| Max. Spindle Speed | 15000 r/min |
| Max. Spindle Power | 30 kW |
| Max. Spindle Torque | 229.9 N·m |
| Pallet Size | 500 mm |
| Max. Table Weight | 500 kg |
| No. of tool station | 275 |
Product Dimensions
| Length | 5450mm |
|---|---|
| Width | 2680mm |
| Height | 2880mm |
| Weight | 11500kg |

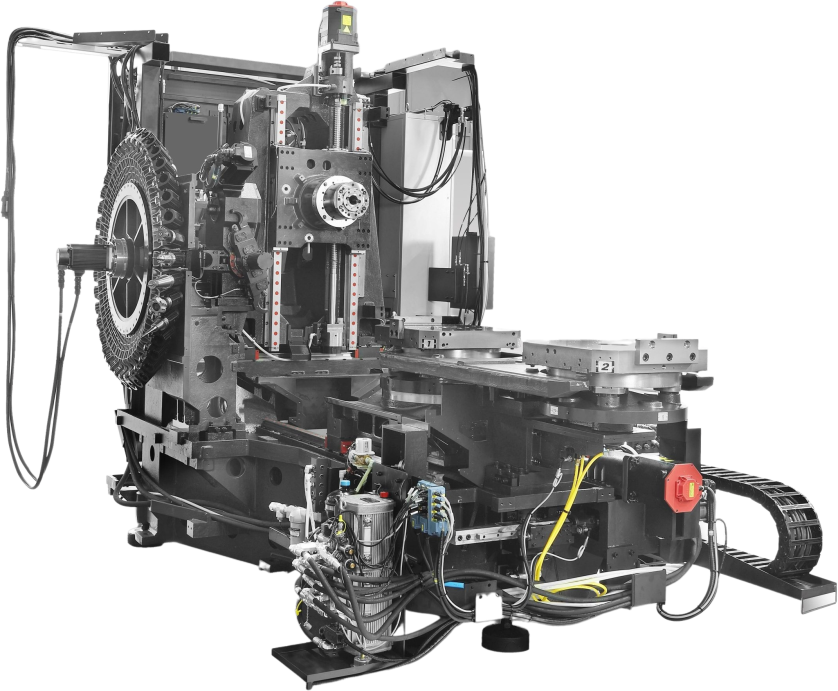

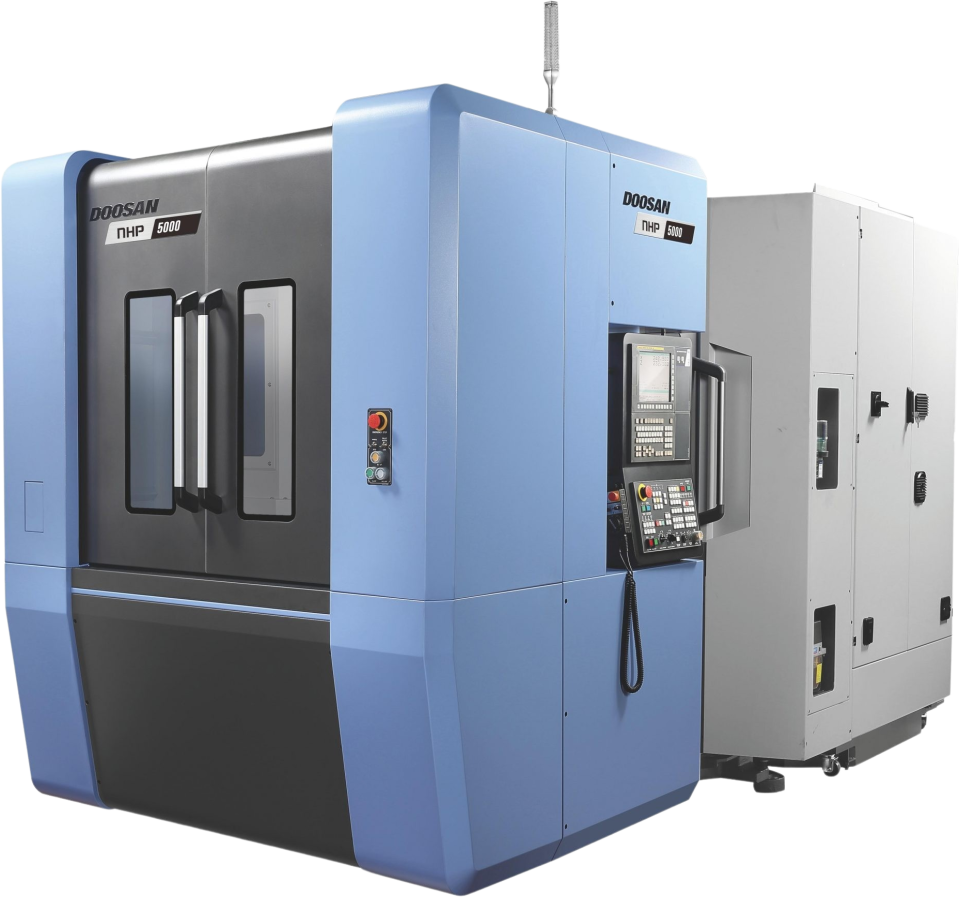

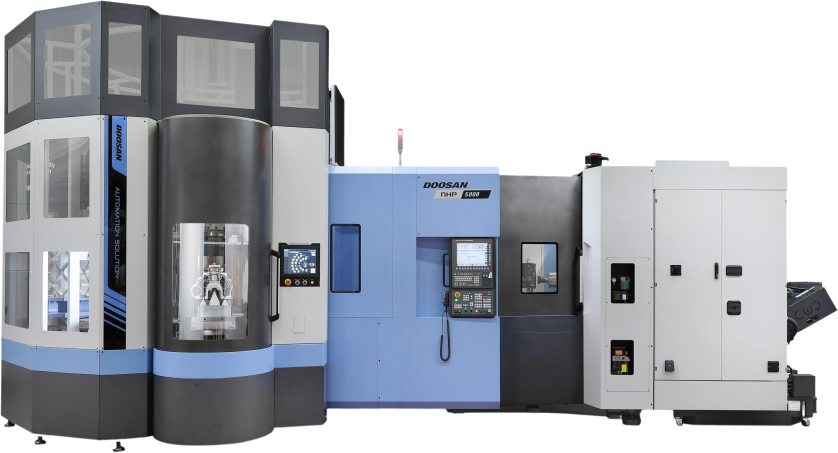

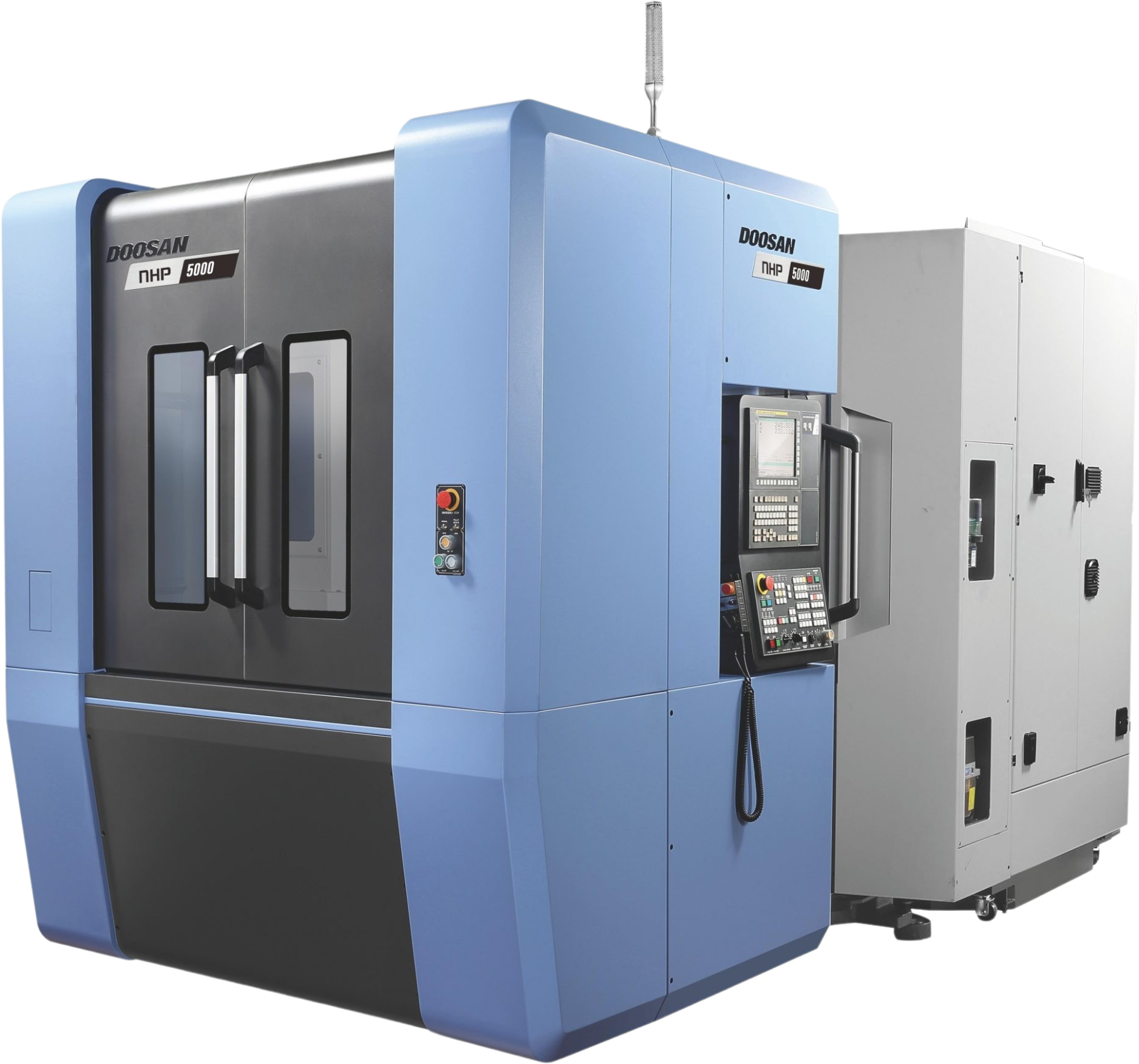

Image representative of Series and may not be the exact model
The Doosan NHP 5000 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan NHP 5000
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Latest machine tool investment – vindicated!
Doosan NHP 5000 Horizontal Machining Centre
New Doosan NHP 5000 horizontal machining centre investment joins nine other Doosan machines and is central to securing new machining contracts in the bio-pharmaceutical industry by boosting milling productivity levels and improving operational efficiencies for leading precision subcontract specialist Endeavor Engineering, based in Didcot, Oxfordshire.
