Doosan NHP 6300
or copy link
Technical Specification
| X Axis Travel distance | 1050 mm |
|---|---|
| Y Axis Travel distance | 900 mm |
| Z Axis Travel distance | 1000 mm |
| Max. Workpiece Diameter | 1050 mm |
| Max. Workpiece Height | 1350 mm |
| Max. Workpiece Weight | 1500 kg |
| X Axis Rapid Traverse | 60 m/min |
| Y Axis Rapid Traverse | 60 m/min |
| Z Axis Rapid Traverse | 60 m/min |
| Max. Spindle Speed | 10000 r/min |
| Max. Spindle Power | 45 kW |
| Max. Spindle Torque | 600 N·m |
| Pallet Size | 630 mm |
| Max. Table Weight | 1500 kg |
| No. of tool station | 376 |
Product Dimensions
| Length | 6520mm |
|---|---|
| Width | 3930mm |
| Height | 3495mm |
| Weight | 18000kg |

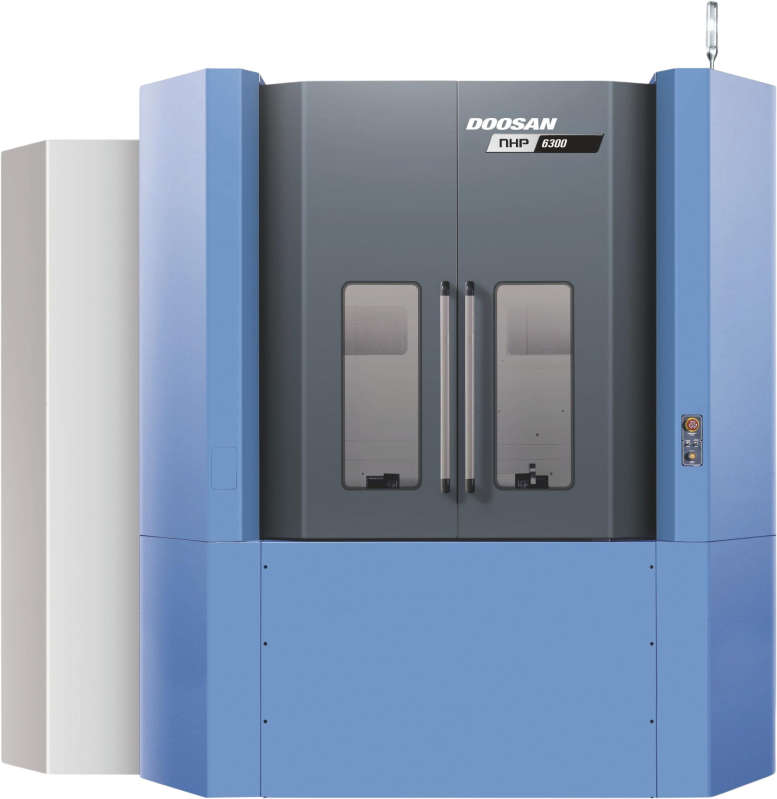

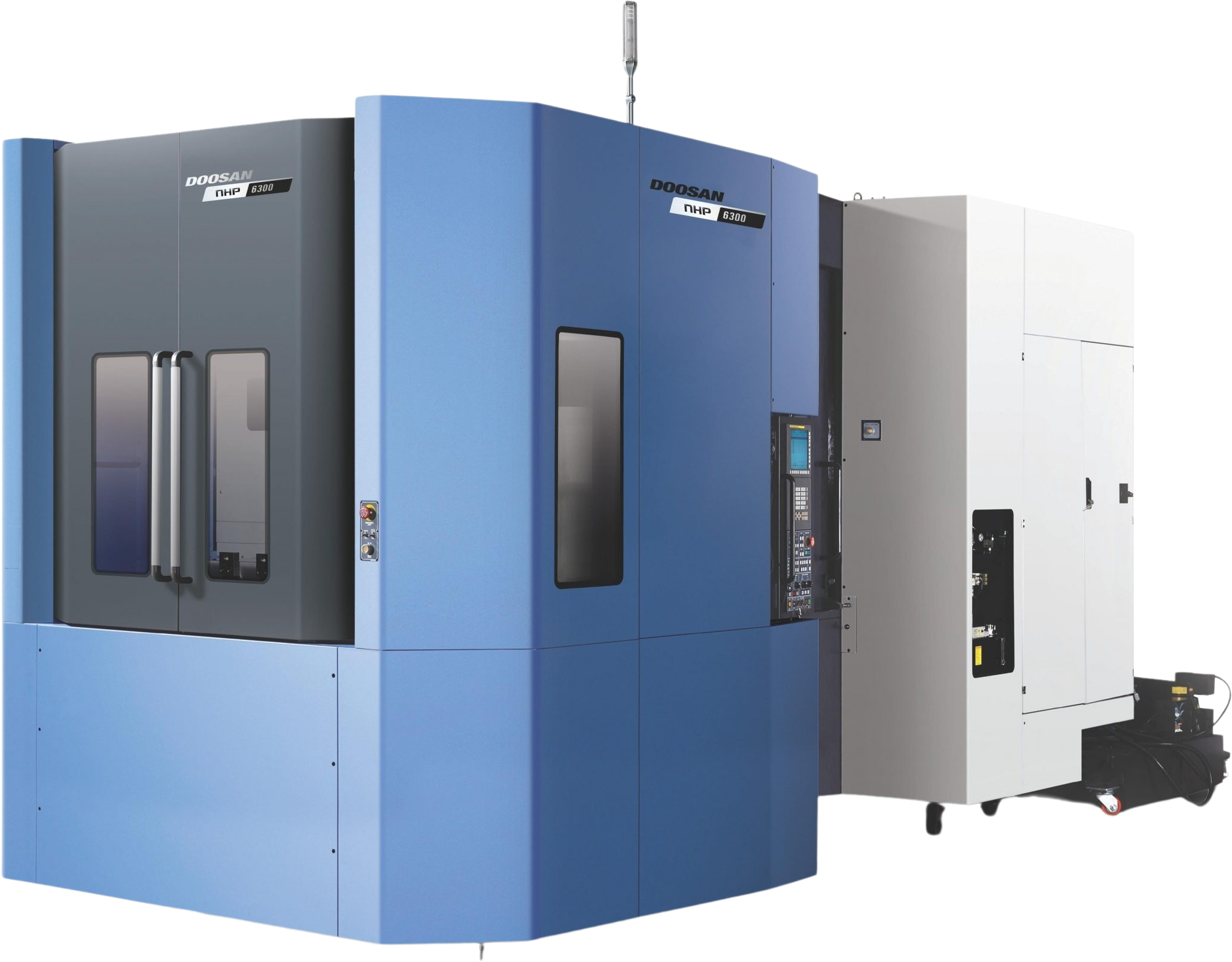

Image representative of Series and may not be the exact model
The Doosan NHP 6300 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan NHP 6300
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Entrepreneurialism – alive and kicking in Stoke-on-Trent!
Doosan NHP 6300 Horizontal Machining Centre
Mills CNC supplied Cheadle based ECAM Engineering with its first Doosan machine tool, an NHP 6300 horizontal machining centre. ECAM already had 3-axis vertical machining centres creating precision fabricated components for customers in construction, rail & automotive, but the NHP 6300 with its twin-pallet & B-axis table machines parts quicker and more efficiently than before.
