Doosan Puma 1000MB
DN Solutions (formerly Doosan) Puma 1000MB Horizontal Single Turret Lathe
or copy link
Technical Specification
| Max. Turning Diameter | 1000 mm |
|---|---|
| Max. Turning Length | 2000 mm |
| X Axis Rapid Traverse | 12 m/min |
| Z Axis Rapid Traverse | 16 m/min |
| Max. Spindle Speed | 300 r/min |
| Max. Spindle Power | 75 kW |
| Max. Spindle Torque | 12040 N·m |
| No. of tool station | 12 |
| Rotary Tool r/min | 3000 r/min |
| Chuck size | 32 inch |
| X Axis Travel distance | 540 mm |
| Z Axis Travel distance | 2130 mm |
Product Dimensions
| Length | 6595mm |
|---|---|
| Width | 3210mm |
| Height | 2835mm |
| Weight | 23000kg |

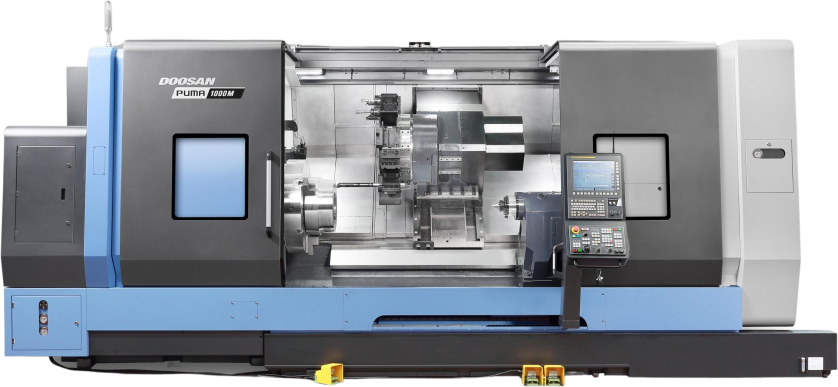

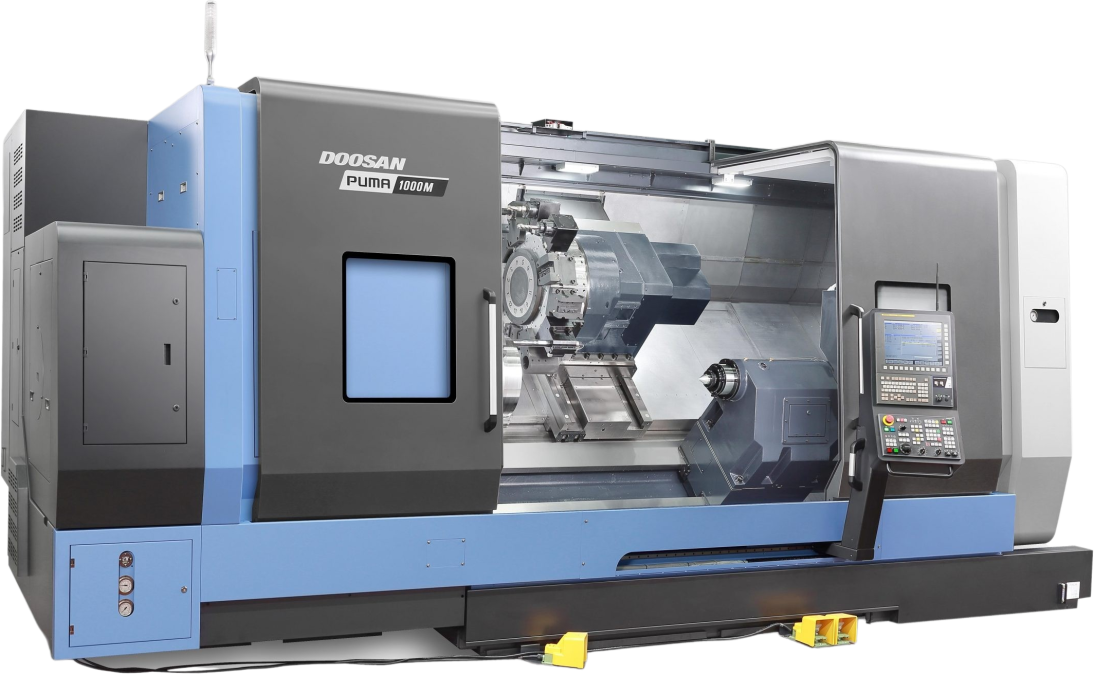

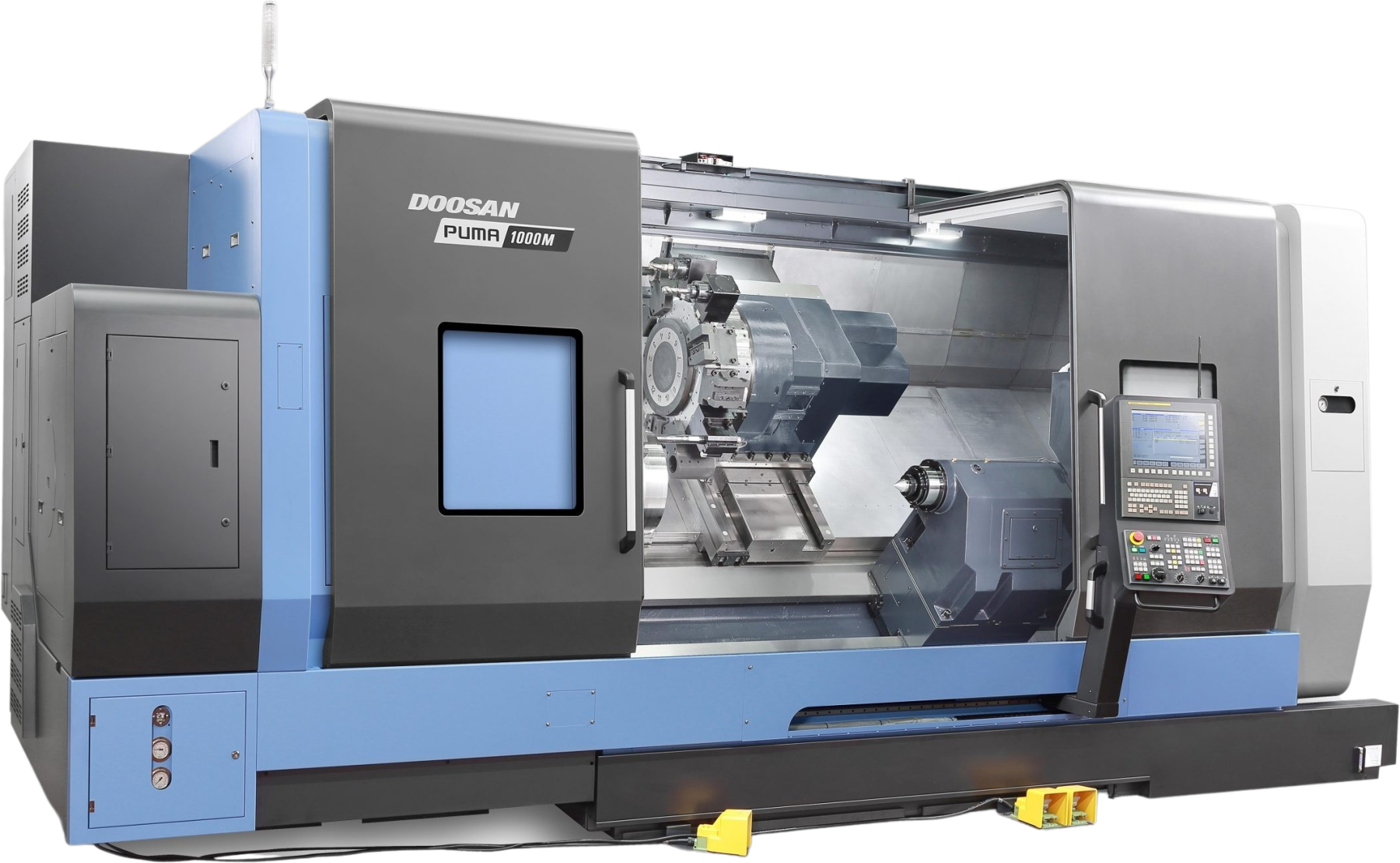

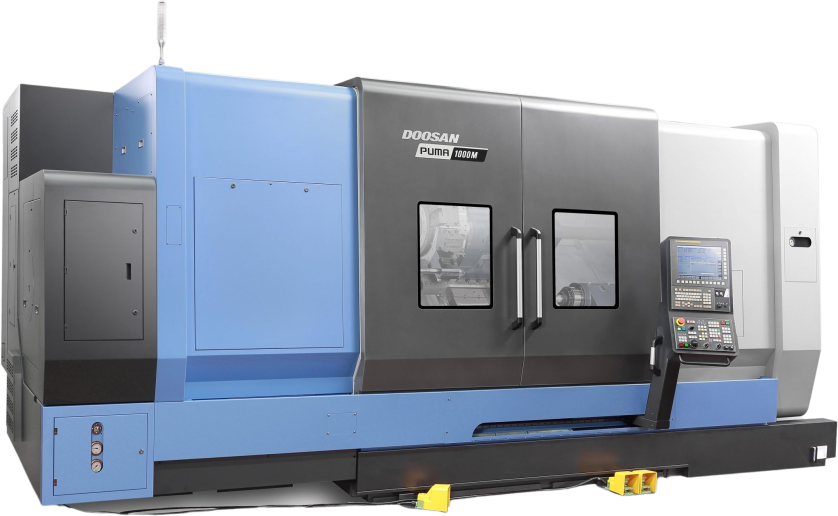

Image representative of Series and may not be the exact model
The Doosan Puma 1000MB is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
