Doosan Puma 2600LM
DN Solutions (formerly Doosan) Puma 2600LM Horizontal Single Turret Lathe
or copy link
Technical Specification
| Chuck size | 10 inch |
|---|---|
| Bar Capacity | 81 mm |
| Max. Turning Diameter | 376 mm |
| Max. Turning Length | 1280 mm |
| X Axis Rapid Traverse | 30 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| X Axis Travel distance | 260 mm |
| Z Axis Travel distance | 1350 mm |
| Max. Spindle Speed | 3500 r/min |
| Max. Spindle Power | 22 kW |
| Max. Spindle Torque | 327 N·m |
| No. of tool station | 24 |
| Rotary Tool r/min | 5000 r/min |
Product Dimensions
| Length | 4335mm |
|---|---|
| Width | 1965mm |
| Height | 1900mm |
| Weight | 6850kg |

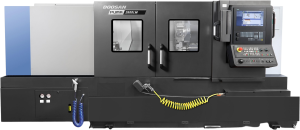

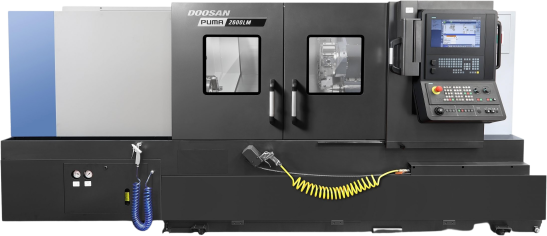

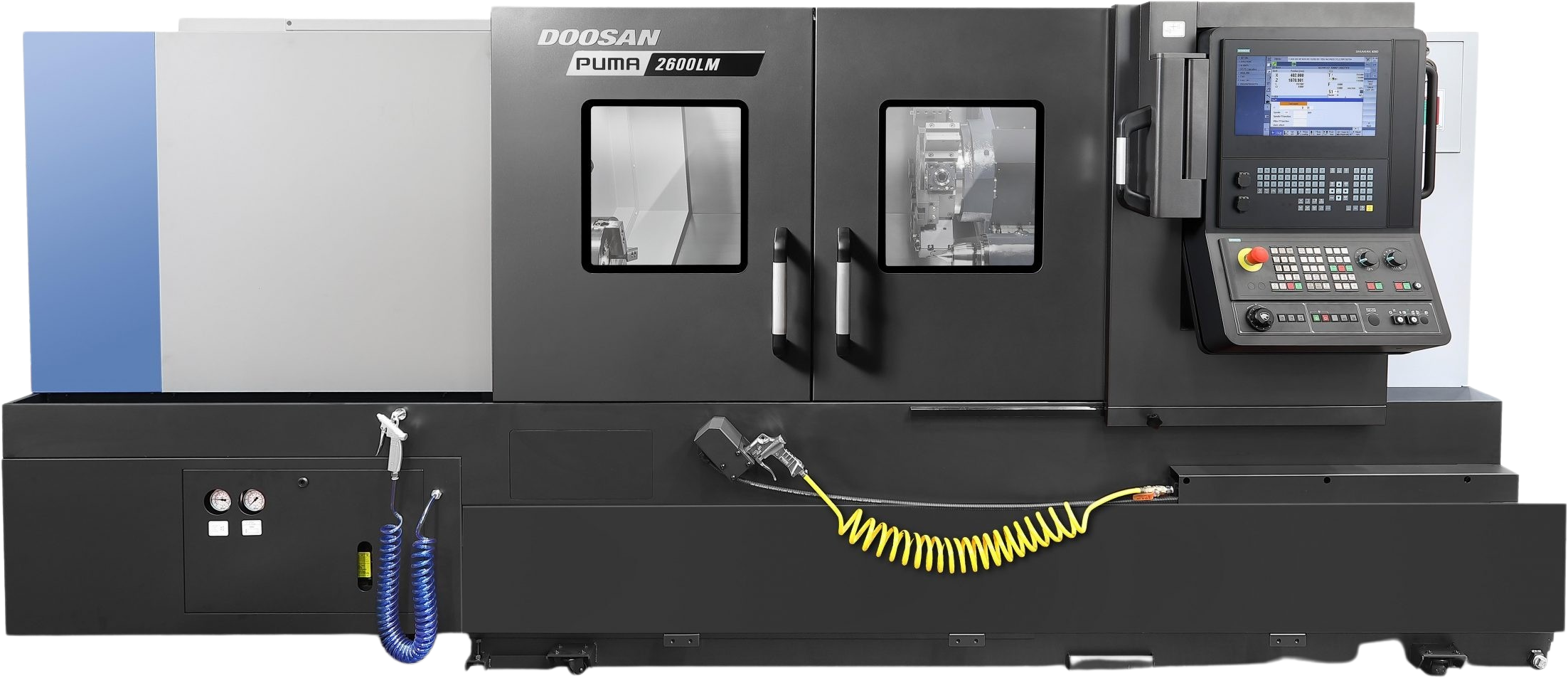

Image representative of Series and may not be the exact model
The Doosan Puma 2600LM is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma 2600LM
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
