Doosan Puma 2600SY II
DN Solutions (formerly Doosan) Puma 2600SY II Horizontal Single Turret Lathe
or copy link
Technical Specification
| Chuck size | 10 inch |
|---|---|
| Bar Capacity | 81 mm |
| Max. Turning Diameter | 376 mm |
| Max. Turning Length | 760 mm |
| X Axis Rapid Traverse | 30 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| X Axis Travel distance | 260 mm |
| Y Axis Travel distance | 105 mm |
| Z Axis Travel distance | 830 mm |
| Max. Spindle Speed | 4000 r/min |
| Max. Spindle Power | 22 kW |
| Max. Spindle Torque | 599 N·m |
| Max. Sub Spindle Speed | 6000 r/min |
| Max. Sub Spindle Power | 15 kW |
| No. of tool station | 12 |
| Rotary Tool r/min | 5000 r/min |
Product Dimensions
| Length | 3560mm |
|---|---|
| Width | 1945mm |
| Height | 2163mm |
| Weight | 6100kg |

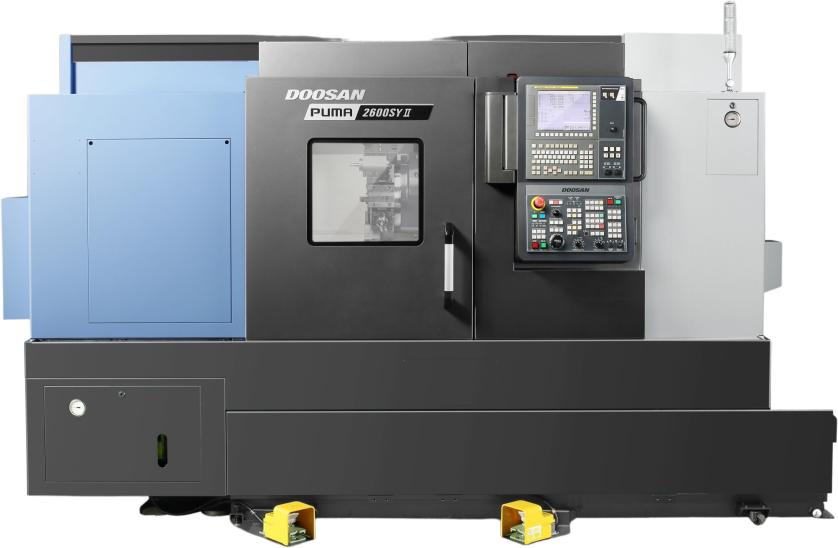

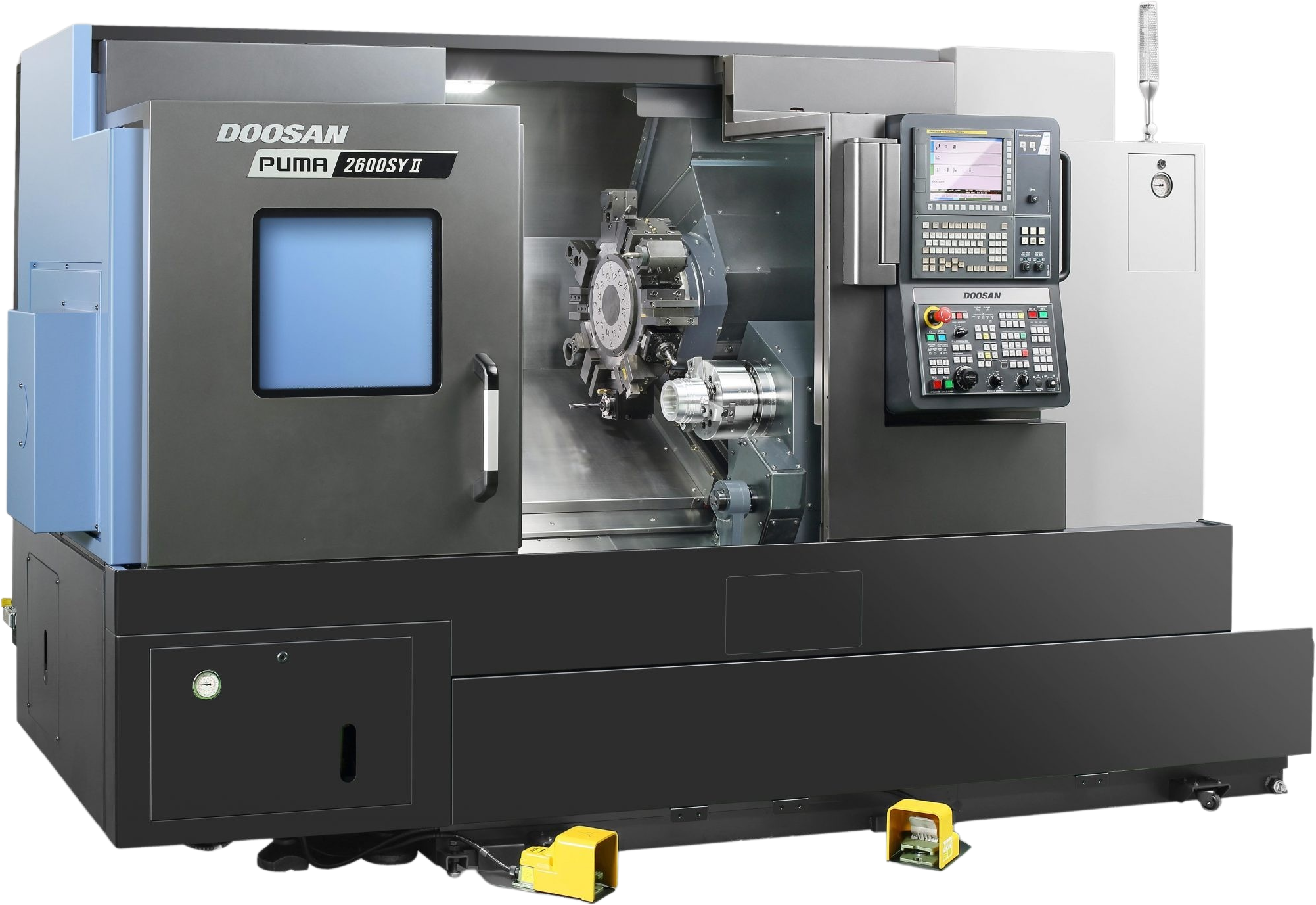

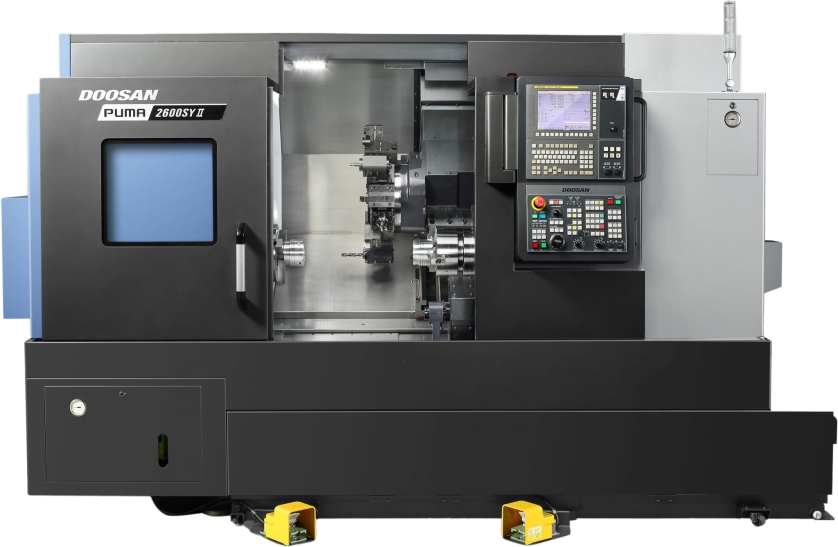

Image representative of Series and may not be the exact model
The Doosan Puma 2600SY II is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma 2600SY II
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
Focus. Drive. And ambition.
Puma 2600SY Horizontal Single Turret Lathe
Macro Manufacturing’s latest CNC machine tool investment significantly increases the company’s machining capacity and capabilities, and underlines its ambitious growth plans for the future.
On a journey toward sustainable machining

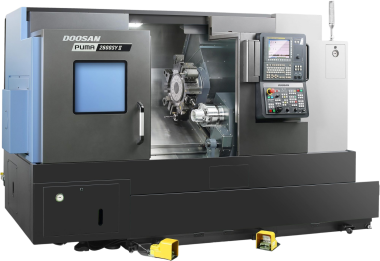

Puma 2600SY II Horizontal Single Turret Lathe
