Doosan Puma 3100Y
Tailstock
Manual Guide i
Fanuc Control
or copy link
Technical Specification
Chuck size | 12 inch |
---|---|
Bar Capacity | 102 mm |
Max. Turning Diameter | 420 mm |
Max. Turning Length | 765 mm |
X Axis Rapid Traverse | 30 m/min |
Z Axis Rapid Traverse | 30 m/min |
Max. Spindle Speed | 2800 r/min |
Max. Spindle Power | 22 kW |
Max. Spindle Torque | 1123 N·m |
No. of tool station | 24 |
Rotary Tool r/min | 5000 r/min |
X Axis Travel distance | 293 mm |
Y Axis Travel distance | 130 mm |
Z Axis Travel distance | 830 mm |
Product Dimensions
Length | 3908mm |
---|---|
Width | 1978mm |
Height | 2315mm |
Weight | 6500kg |

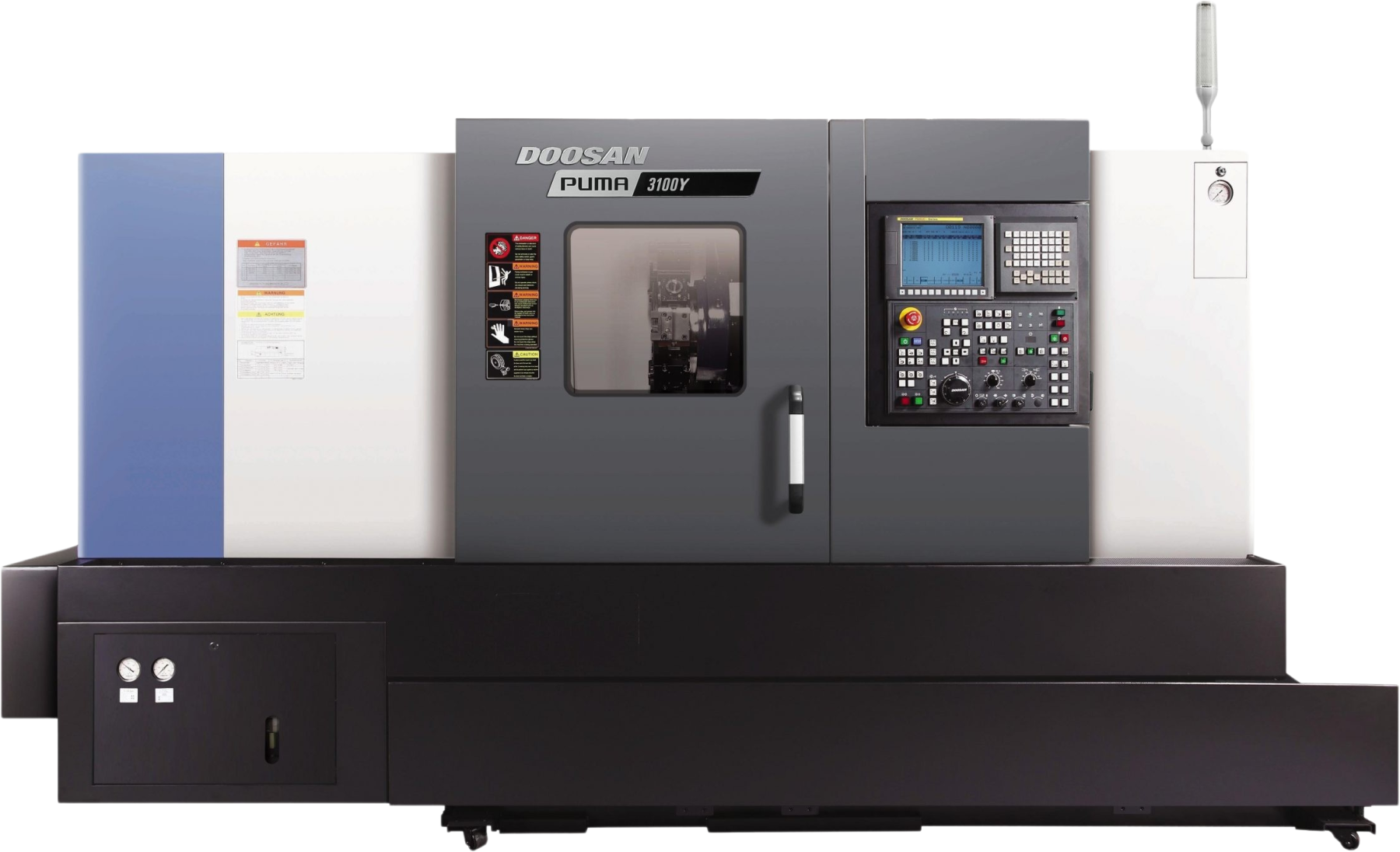

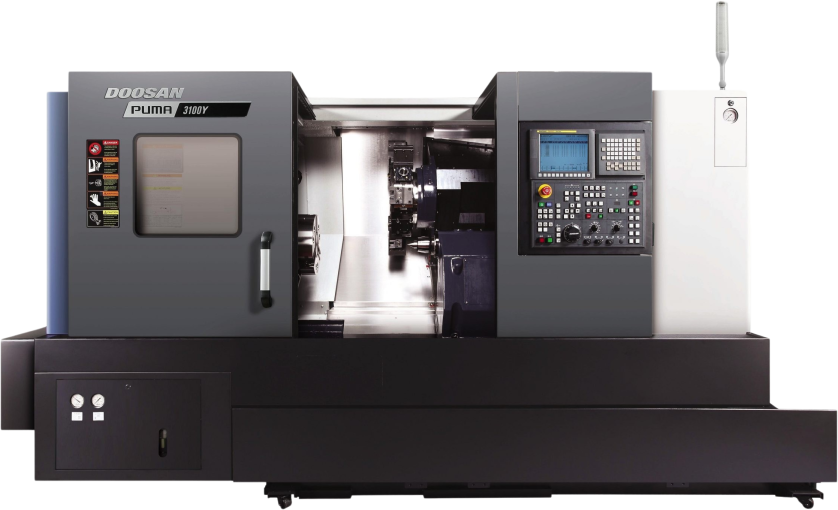

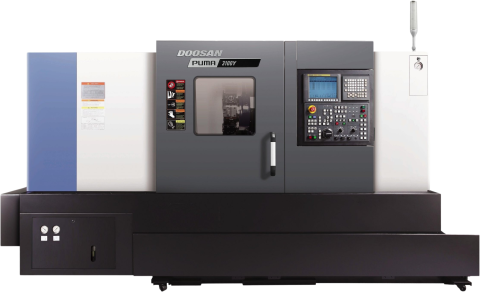

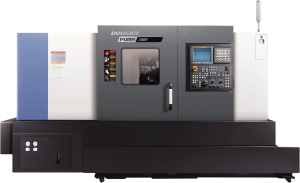

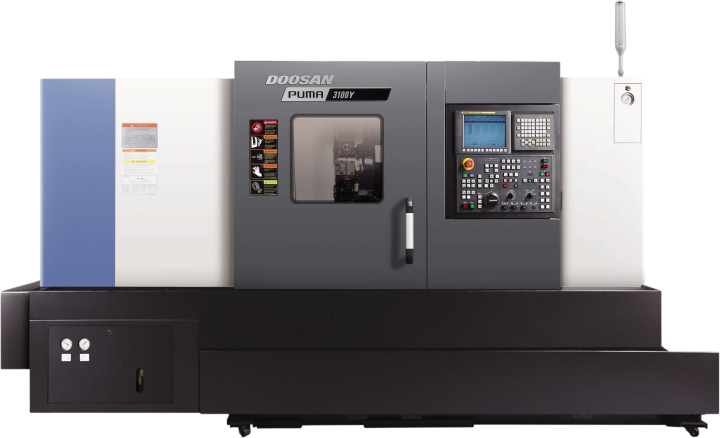

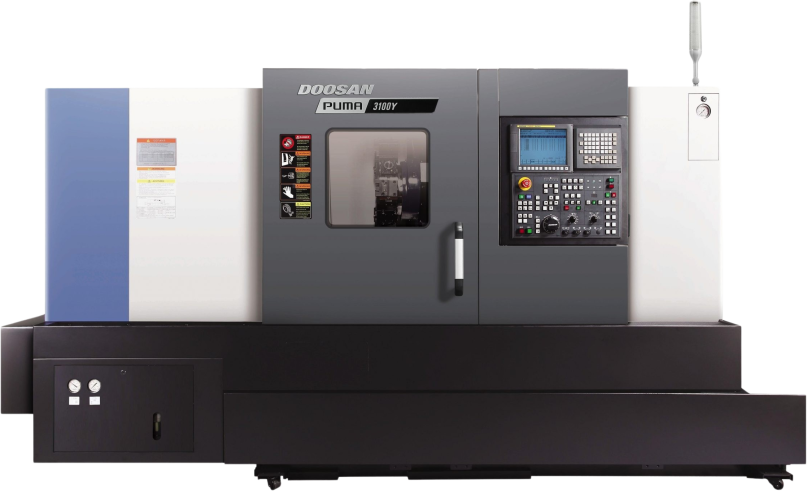

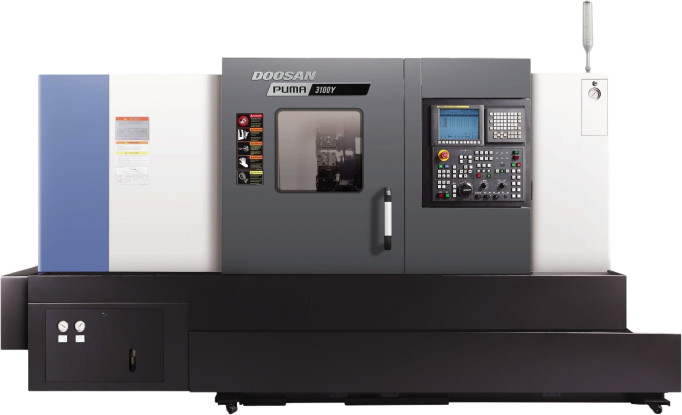

Image representative of Series and may not be the exact model
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma 3100Y
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
![Plastim products being stacked](https://www.millscnc.co.uk/wp-content/uploads/2023/07/Plastim-1.jpg)
Cutting plastics down to size (and shape)!
Doosan Puma 3100Y Horizontal Single Turret Lathe
Cheltenham based Plastim Ltd invested in its fourth CNC lathe from Mills, a Doosan Puma 3100Y Horizontal Single Turret Lathe. It’s used to machine high-precision parts that are typically small in size and complex in shape with intricate features from different engineering plastics including Acetal, Delrin, PEEK, PTFE, Nylon, Noryl & Perspex for UK customers in the oil & gas, aerospace, motorsport, electronics, transport, chemical, energy & food processing sectors.
![](https://www.millscnc.co.uk/wp-content/uploads/2022/04/HEC-interior-1-scaled.jpg)
Multi-tasking turning centre delivers multiple benefits.
Doosan Puma 3100Y Horizontal Single Turret Lathe
Southall based aerospace & defence subcontract specialist HEC Precision invested in a Doosan multi-tasking turning centre from Mills CNC. The machine, a Puma 3100Y turning centre is used to machine aluminium parts & components. The Puma’s driven tool capabilities enable HEC to machine complex components in fewer set-ups with reduced cycle times, helping to improve productivity.
