Doosan Puma GT 3100L
DN Solutions (formerly Doosan) Puma GT 3100L Horizontal Single Turret Lathe
or copy link
Technical Specification
| Chuck size | 12 inch |
|---|---|
| Bar Capacity | 81 mm |
| Max. Turning Diameter | 481 mm |
| Max. Turning Length | 1275 mm |
| X Axis Rapid Traverse | 24 m/min |
| Z Axis Rapid Traverse | 30 m/min |
| X Axis Travel distance | 260 mm |
| Z Axis Travel distance | 1350 mm |
| Max. Spindle Speed | 2800 r/min |
| Max. Spindle Power | 35 kW |
| Max. Spindle Torque | 1613 N·m |
| No. of tool station | 12 |
Product Dimensions
| Length | 4636mm |
|---|---|
| Width | 2325mm |
| Height | 2110mm |
| Weight | 6900kg |

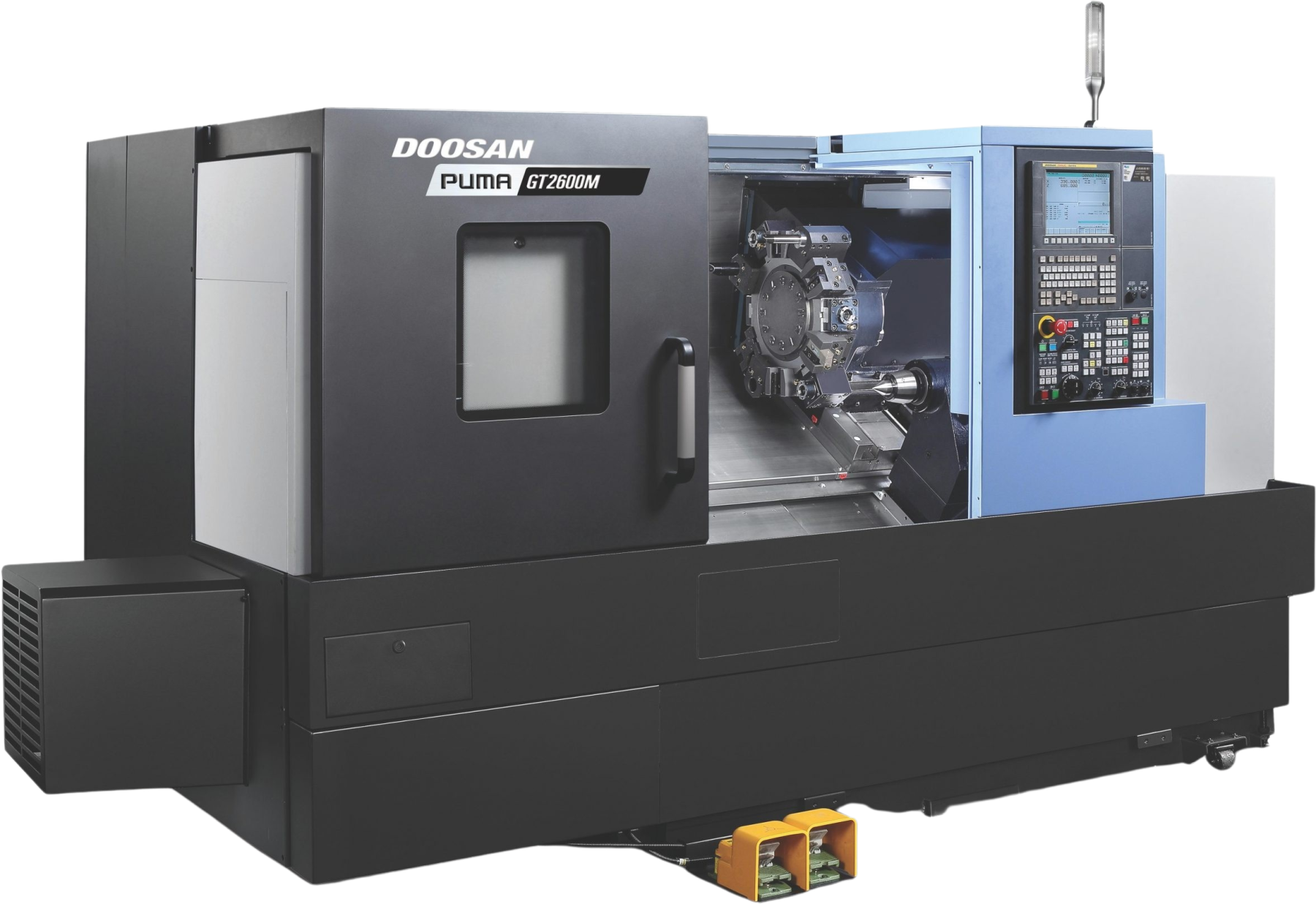

Image representative of Series and may not be the exact model
The Doosan Puma GT 3100L is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma GT 3100L
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
On a roll!
Puma GT 3100L Horizontal Single Turret Lathe
Leading roll tooling and equipment design and manufacturing specialist Bowers & Jones invest in a DN Solutions’ Puma GT 3100L box guideway lathe, joining their previously acquired Puma 5100B lathe and DNM 750 II vertical machining centre at their manufacturing facility in Bilston.
