Doosan Puma VT1100
DN Solutions (formerly Doosan) Puma VT1100 Single Turret Vertical Lathe
or copy link
Technical Specification
| Chuck size | 32 inch |
|---|---|
| Max. Turning Diameter | 1100 mm |
| Max. Turning Length | 1000 mm |
| X Axis Rapid Traverse | 20 m/min |
| Z Axis Rapid Traverse | 20 m/min |
| Max. Spindle Speed | 850 r/min |
| Max. Spindle Power | 60 kW |
| Max. Spindle Torque | 6385 N·m |
| No. of tool station | 12 |
| X Axis Travel distance | 580 mm |
| Z Axis Travel distance | 1000 mm |
Product Dimensions
| Length | 2830mm |
|---|---|
| Width | 3305mm |
| Height | 4012mm |
| Weight | 22000kg |

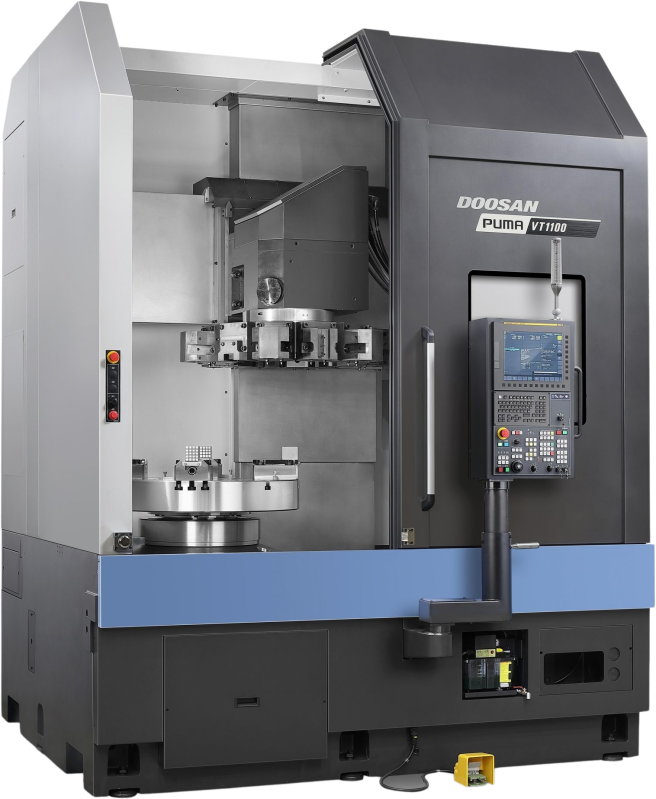

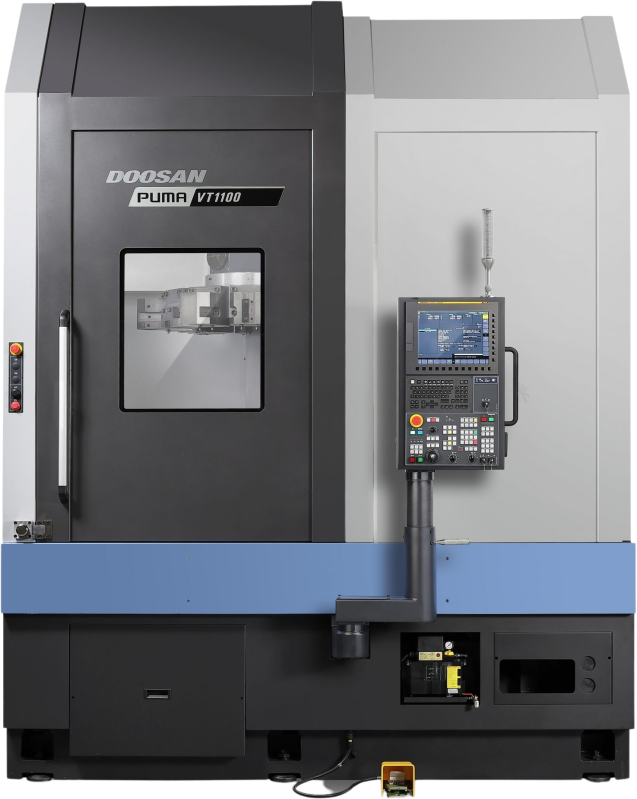

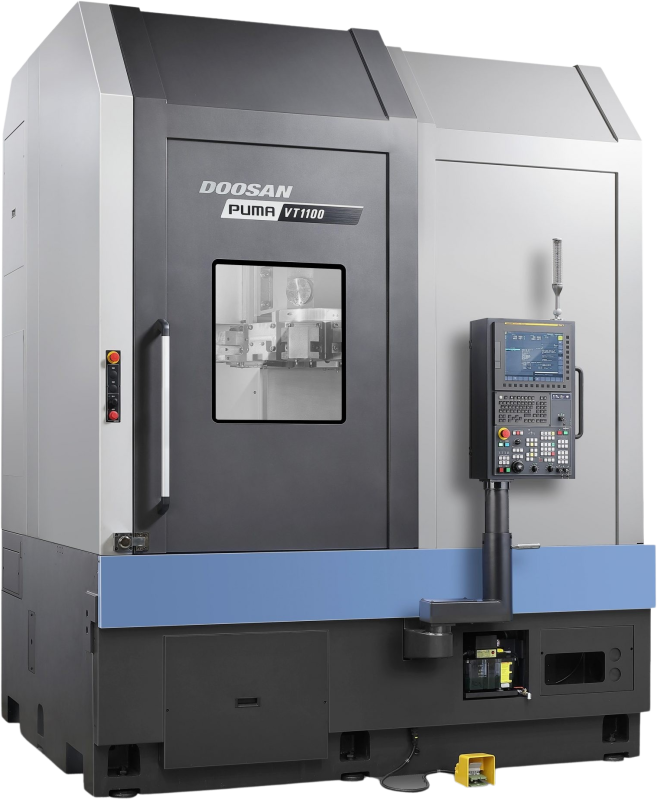

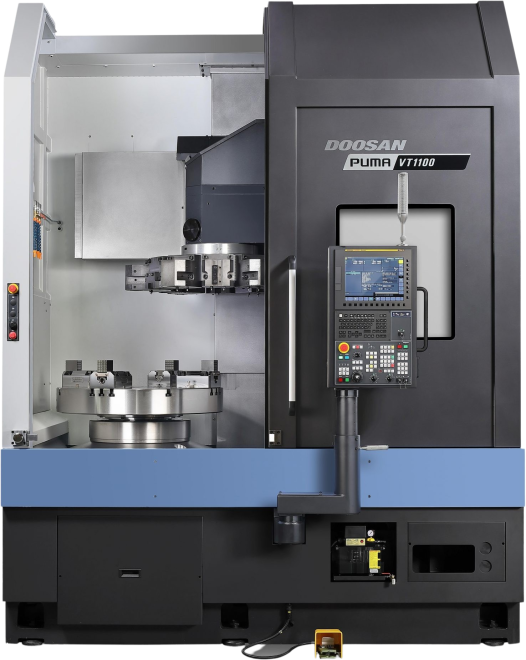

Image representative of Series and may not be the exact model
The Doosan Puma VT1100 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
Talk to Mills about the Doosan Puma VT1100
Whether you’re ready to order or want some more details about this product, fill out our enquiry form and we’ll get right back to you.
"*" indicates required fields
Related Case Studies
A means to an end!
Doosan Puma VT1100 Vertical Single Turret Lathe
Mills CNC supplied a Doosan VT1100 Vertical Single Turret Lathe to Stoke-on-Trent based Unilathe Ltd, a subcontract specialist. The machine was positioned next to an identical model to create a flexible, high-productivity turning cell to machine a range of complex, high-precision components from start to finish for customers operating in the aerospace, oil & gas, mining & rail sectors.
