Doosan VC 430
DN Solutions (formerly Doosan) VC 430 Vertical Machining Centre
or copy link
Technical Specification
| X Axis Travel distance | 560 mm |
|---|---|
| Y Axis Travel distance | 430 mm |
| Z Axis Travel distance | 570 mm |
| X Axis Rapid Traverse | 40 m/min |
| Y Axis Rapid Traverse | 40 m/min |
| Z Axis Rapid Traverse | 36 m/min |
| Max. Spindle Speed | 10000 r/min |
| Max. Spindle Power | 18.5 kW |
| Max. Spindle Torque | 117.7 N·m |
| Table Length | 712 mm |
| Table Width | 490 mm |
| Max. Table Weight | 300 kg |
| No. of tool station | 40 |
Product Dimensions
| Length | 2860mm |
|---|---|
| Width | 2200mm |
| Height | 3030mm |
| Weight | 7800kg |

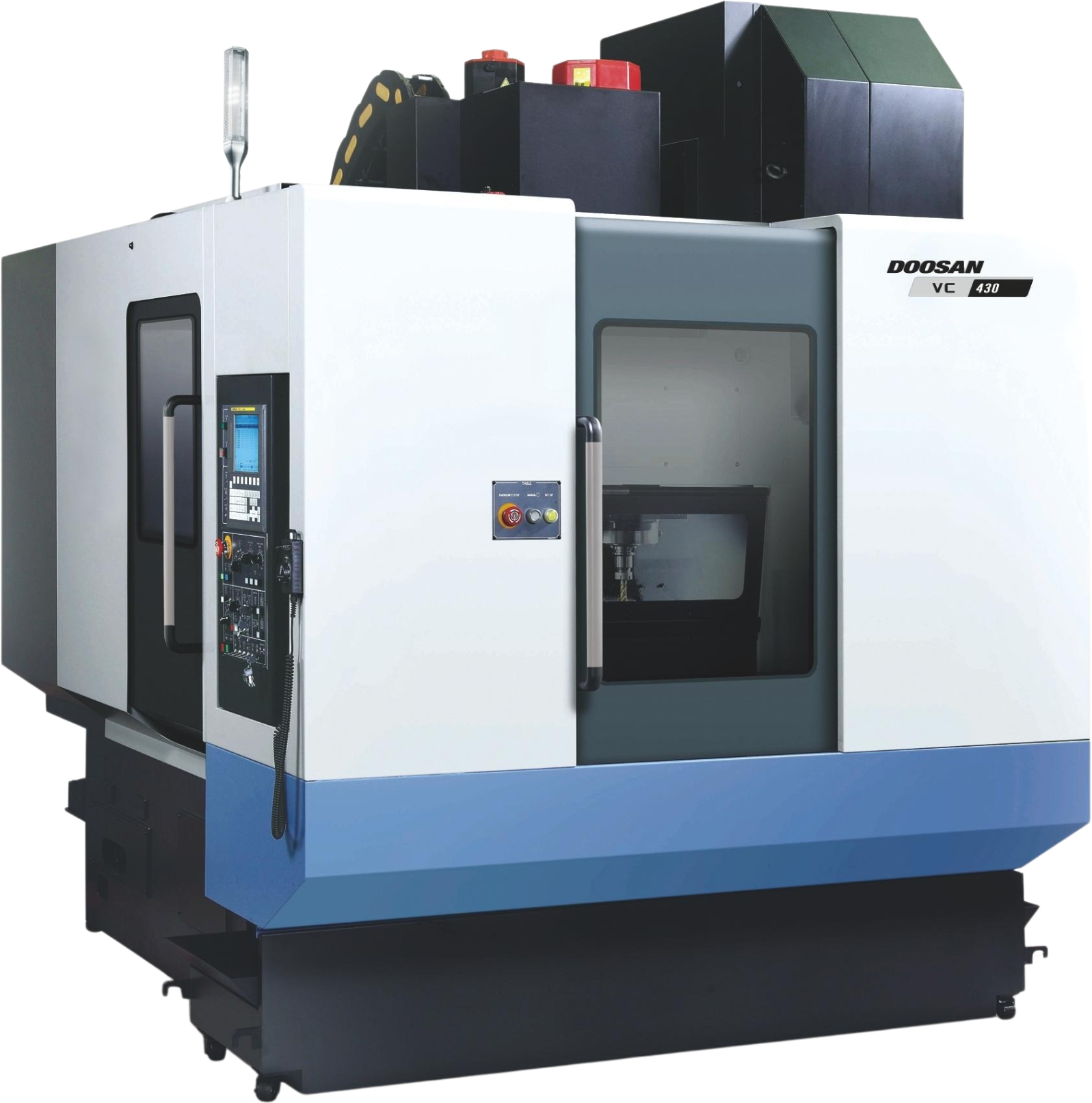

Image representative of Series and may not be the exact model
The Doosan VC 430 is compatible with Fanuc and Siemens.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
