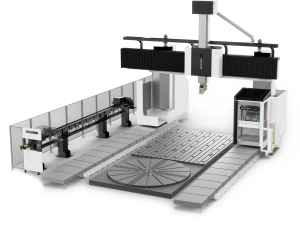

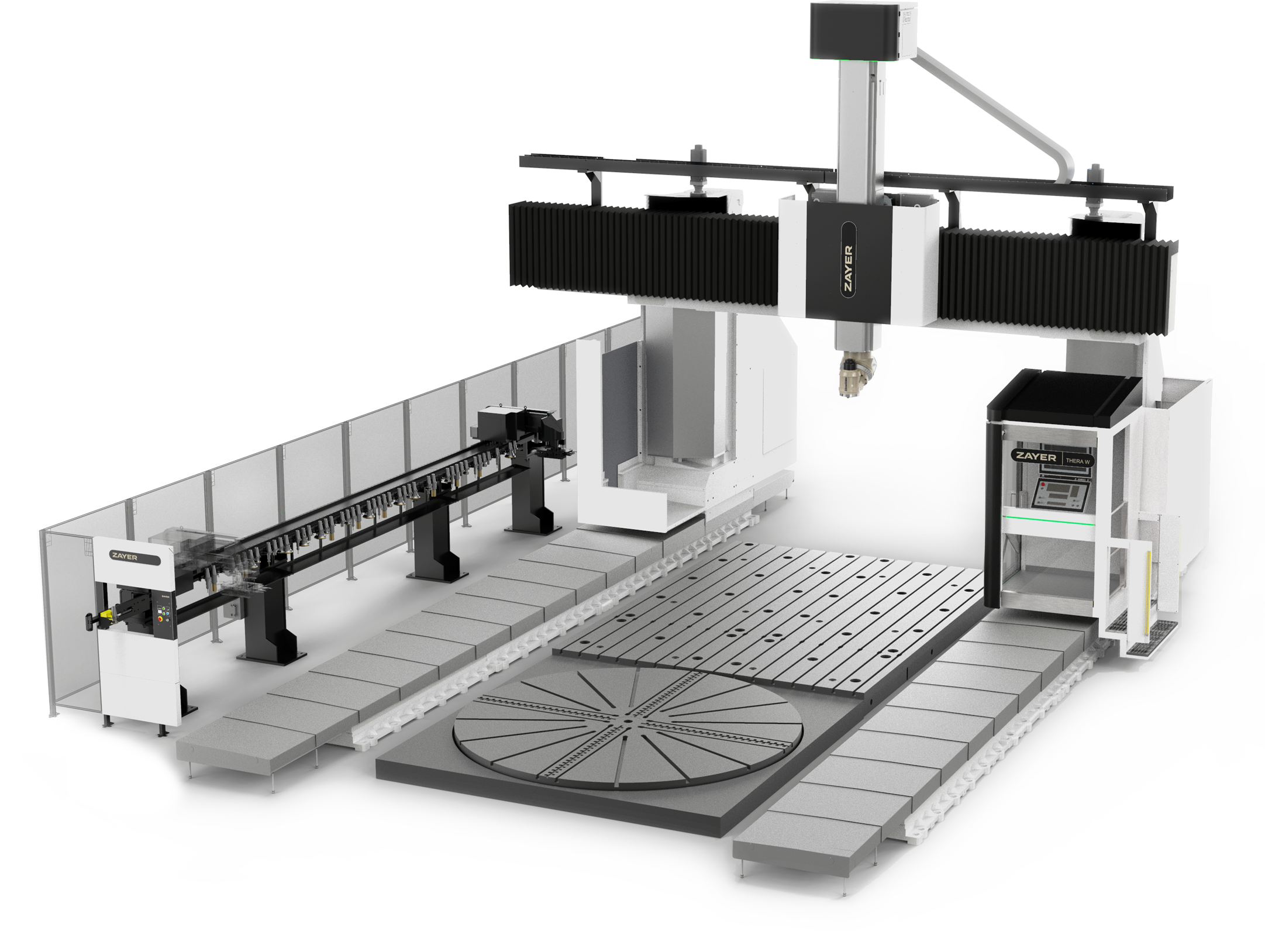

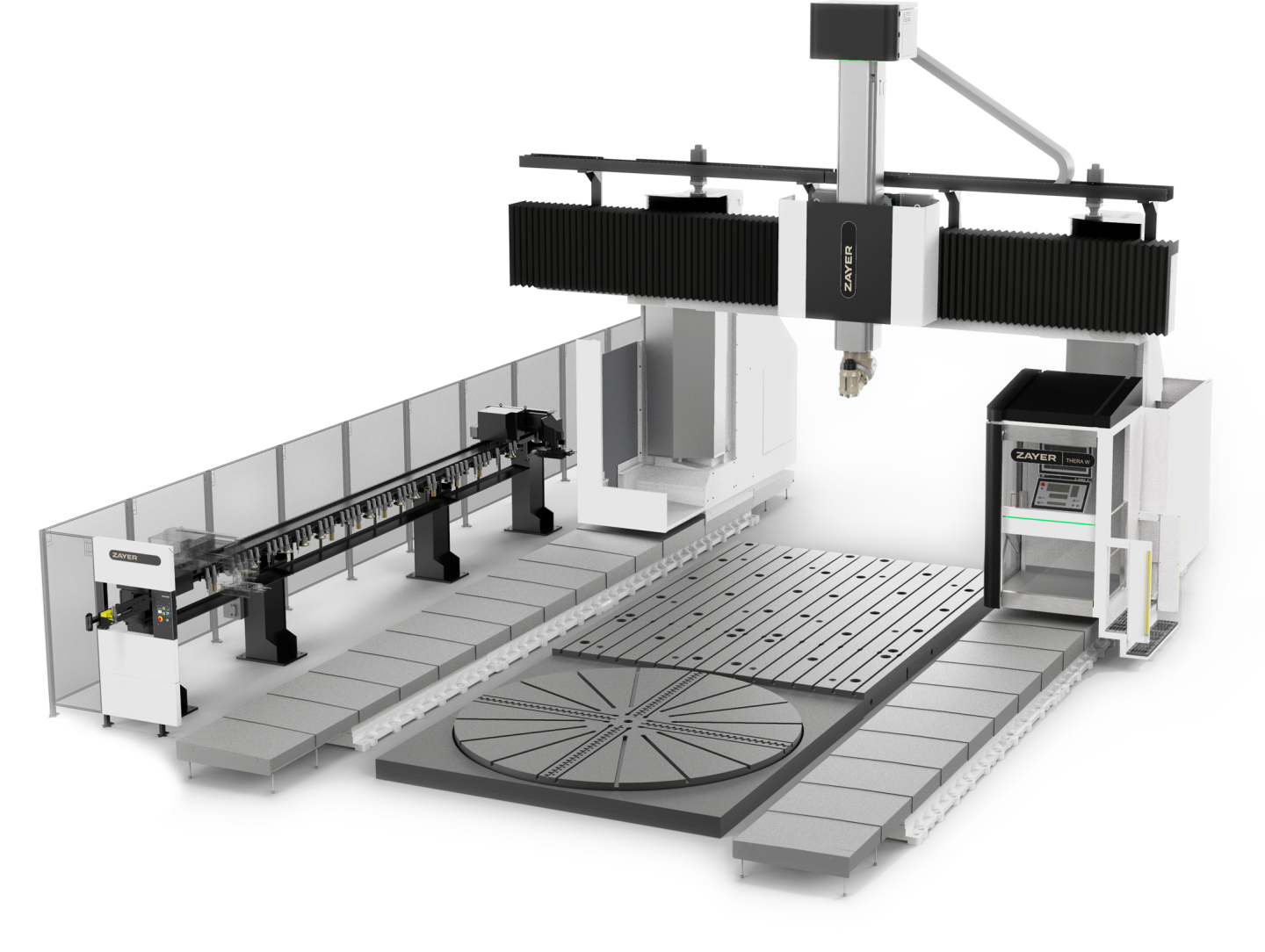

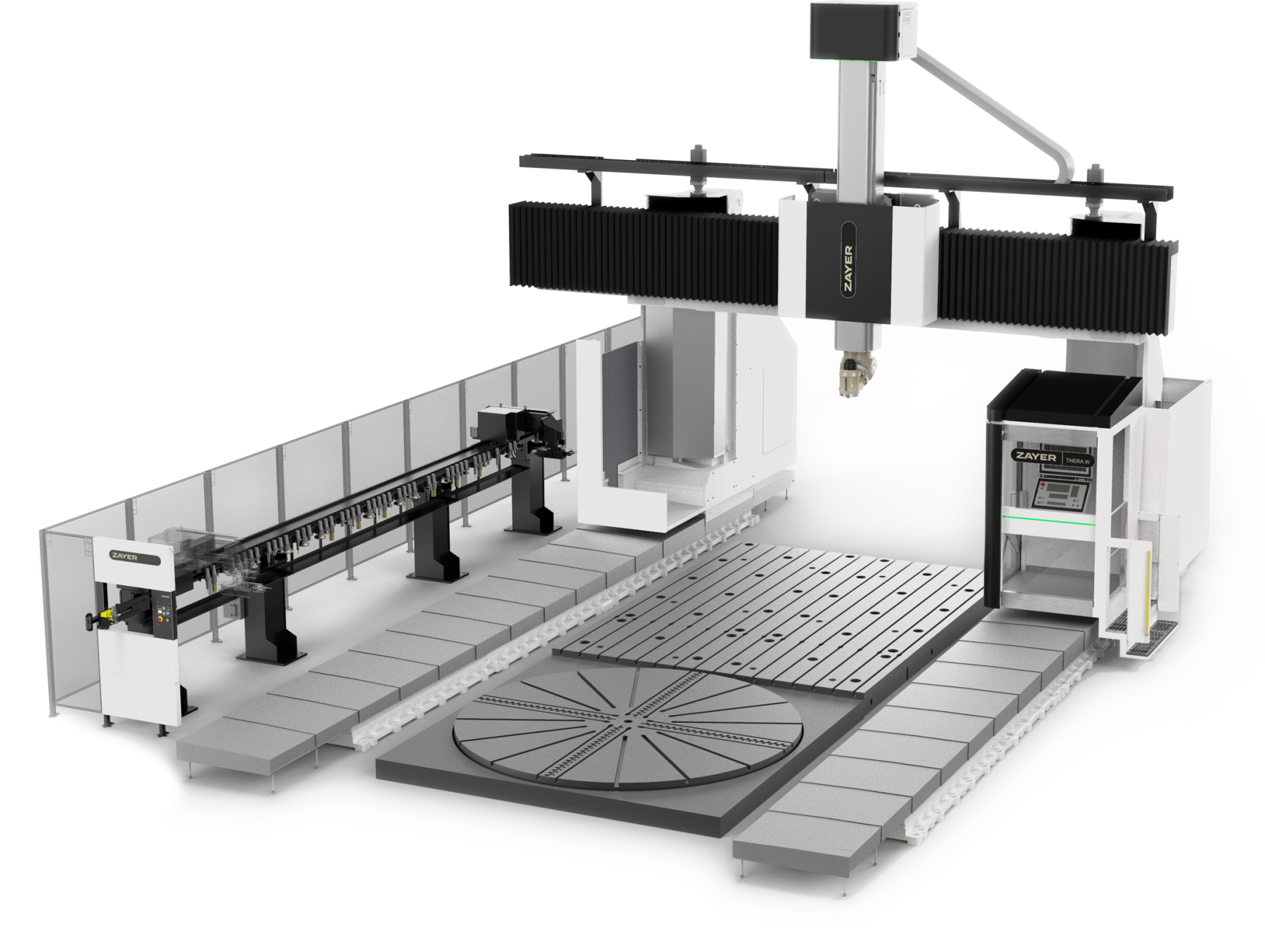

Zayer THERA W
Gantry-type milling machine with a moving bridge and fixed table and a moving cross beam.
A large-capacity, flexible milling machine with a powerful spindle, and a large worktable and tool magazine.
or copy link
Technical Specification
| X-axis | up to 20,000mm |
|---|---|
| Y-axis | up to 5750mm |
| Z-axis | up to 2000mm |
| Distance between columns | up to 5000mm |
| Moving cross beam | up to 1350mm |
| Table length | up to 20,500mm |
| Table width | up to 4000mm |
| Rapids | 50m/min |
| Feed rates | up to 45m/min |
| Spindle power/speed | up to 60kW/6000rpm |
| Positional accuracy | 0.008mm |
| Repeatability accuracy | 0.005mm |
| Tool magazine | up to 80 tools |
| Spindle heads | 45° automatic head* |
| Control | Heidenhain TNC 640; Siemens, Fanuc, Mitsubishi controls available |
| Chip conveyor | Yes |
| Coolant Tank | 22L/5bar |
Options
| Other spindle head options available* |
| Change of heads |
The Zayer THERA W is compatible with Fanuc, Siemens, Heidenhain and Mitsubishi.
The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.
The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
